Wiper/Washer System Schematics (W/CD4)

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

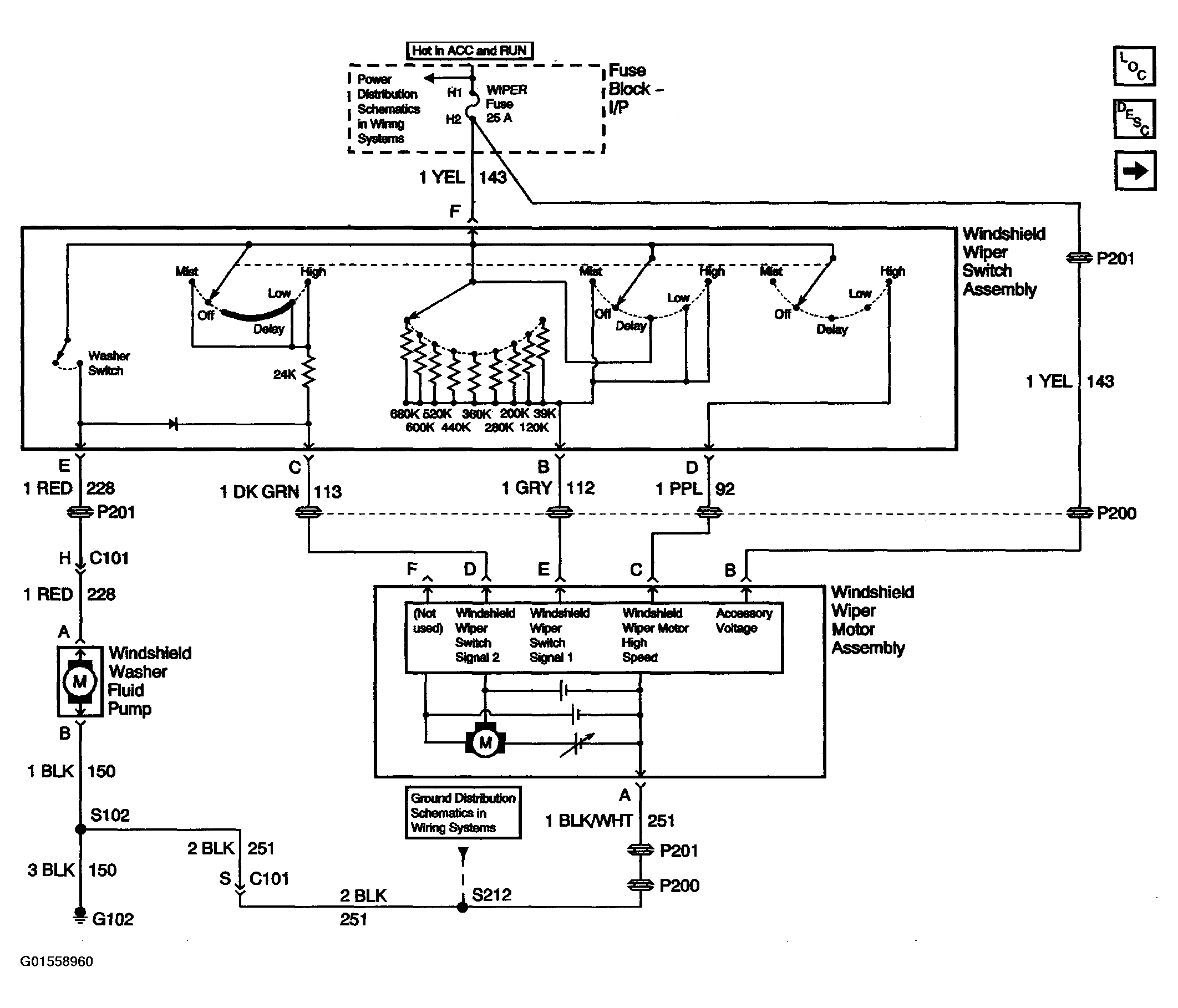

Fig 1: Wiper/Washer System Schematics (W/CD4)
G01558960Courtesy of GENERAL MOTORS CORP.

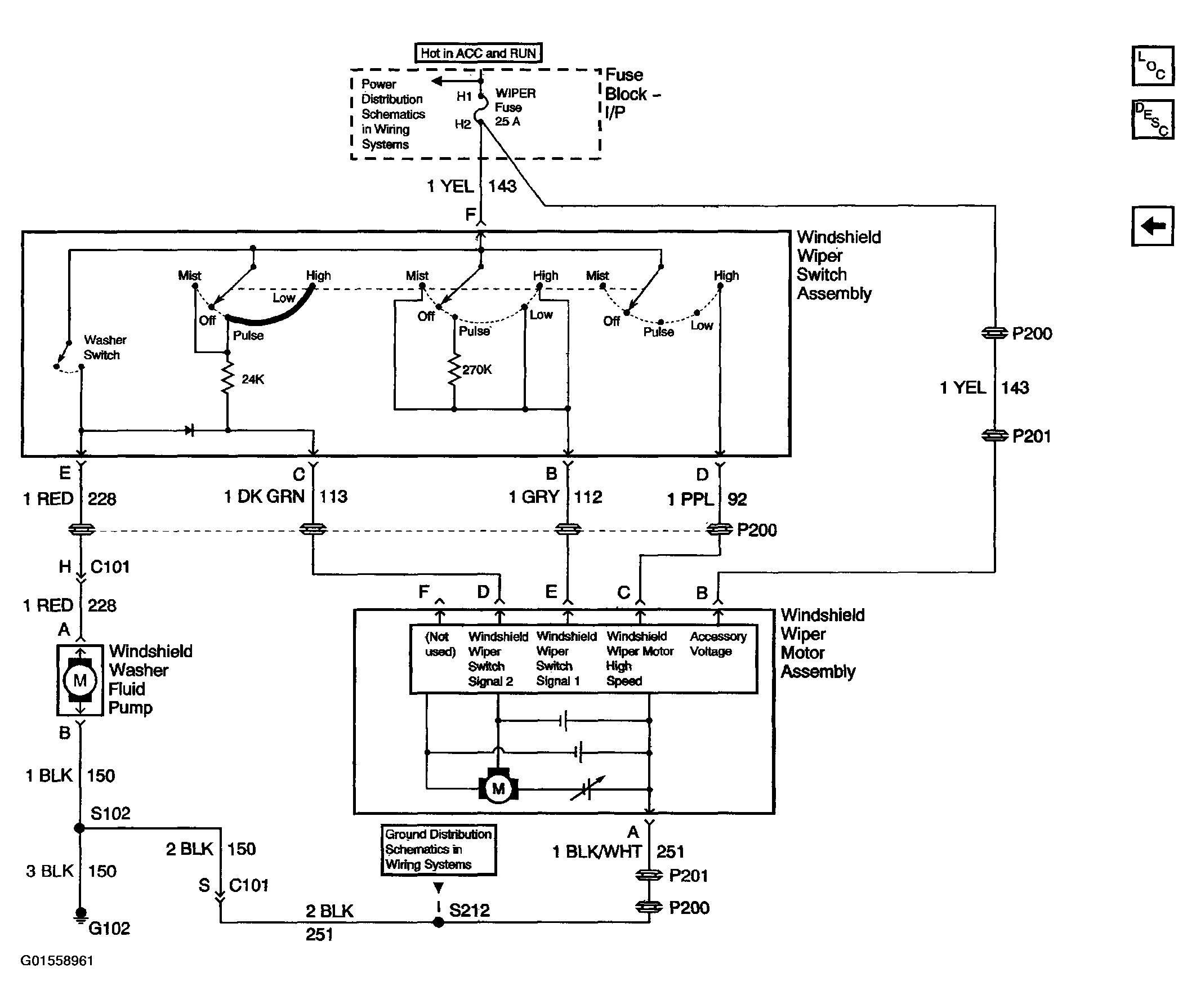

Fig 2: Wiper/Washer System Schematics (W/O CD4)
G01558961Courtesy of GENERAL MOTORS CORP.
