Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT in Steering Wheel and Column.
  3. Remove the multifunction switch. Refer to MULTIFUNCTION, TURN SIGNAL SWITCH REPLACEMENT in Steering Wheel and Column.
  4. Remove the retaining screw from the windshield wiper switch (2).
  5. Disconnect the electrical connector from the windshield wiper switch.
  6. Remove the windshield wiper switch (2) from the column (6).

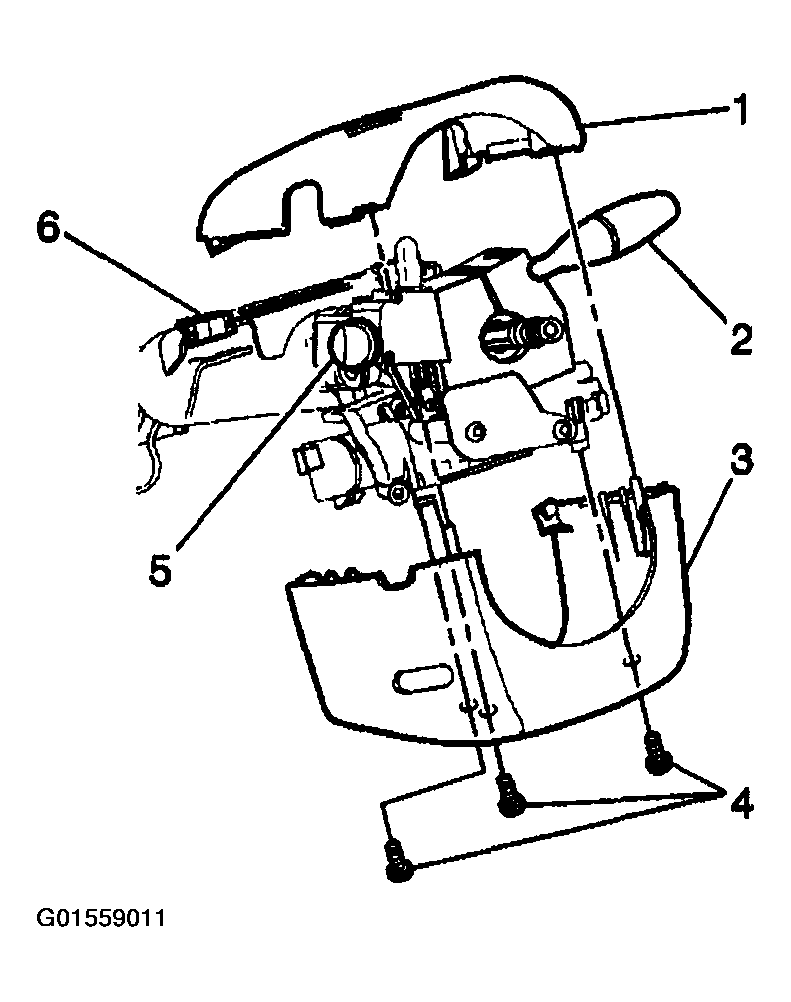

    Fig 1: Removing Wipers/Washer Switch
    G01559011Courtesy of GENERAL MOTORS CORP.
