Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Disconnect the wiper motor electrical connector.
  3. Remove the wiper drive system module screws.
  4. Remove the wiper drive system module from the vehicle.

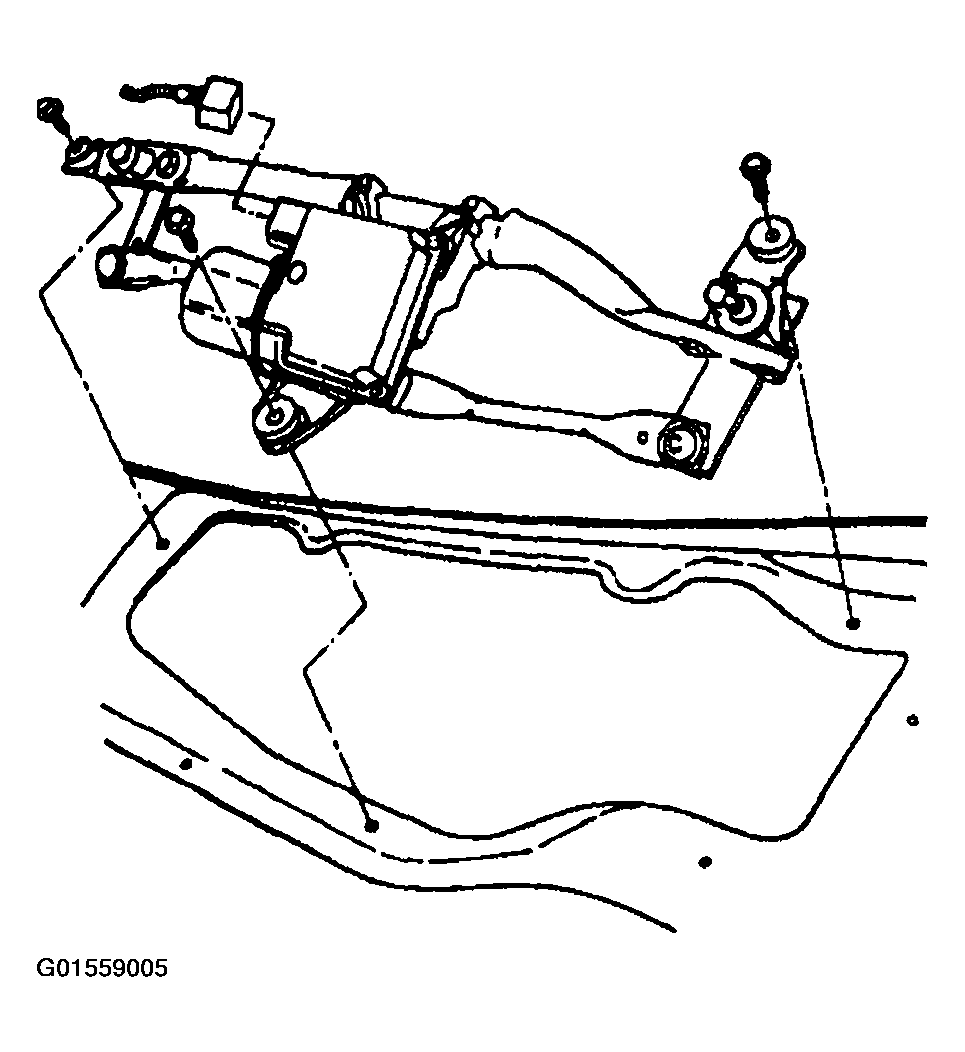

    Fig 1: Removing Wiper Drive System Module
    G01559005Courtesy of GENERAL MOTORS CORP.
  5. Using the J 39232, disconnect the wiper transmission from the wiper motor crank arm.
    Fig 2: Disconnecting Wiper Transmission From Wiper Motor Crank Arm
    G01559006Courtesy of GENERAL MOTORS CORP.
  6. Remove the wiper transmission caps.
  7. Remove the wiper transmission screws.
  8. Remove the wiper transmission from the wiper drive system module tube frame.

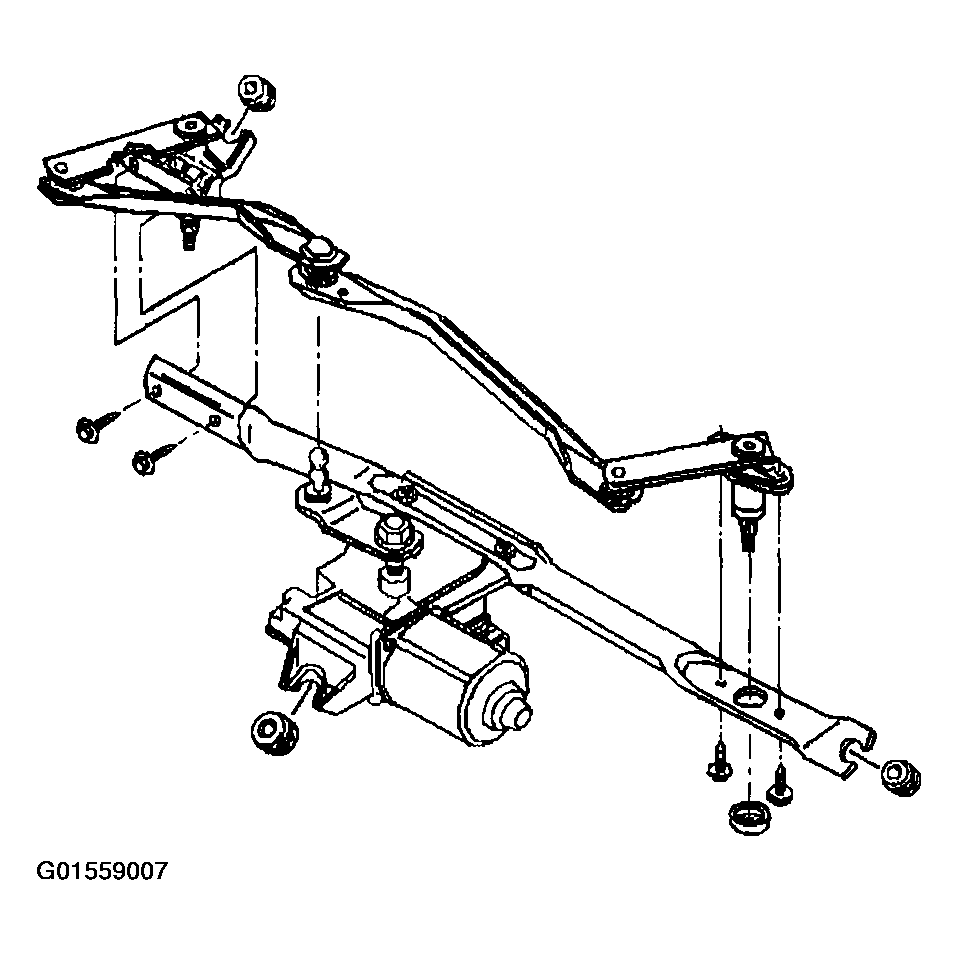

    Fig 3: Removing Wiper Transmission From Wiper Drive System Module Tube Frame
    G01559007Courtesy of GENERAL MOTORS CORP.
