Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper transmission to the wiper drive system module tube frame.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the wiper transmission screws.

    Tighten

    Tighten the screws to 9 N.m (79 lb in).

  3. Install the wiper transmission caps.

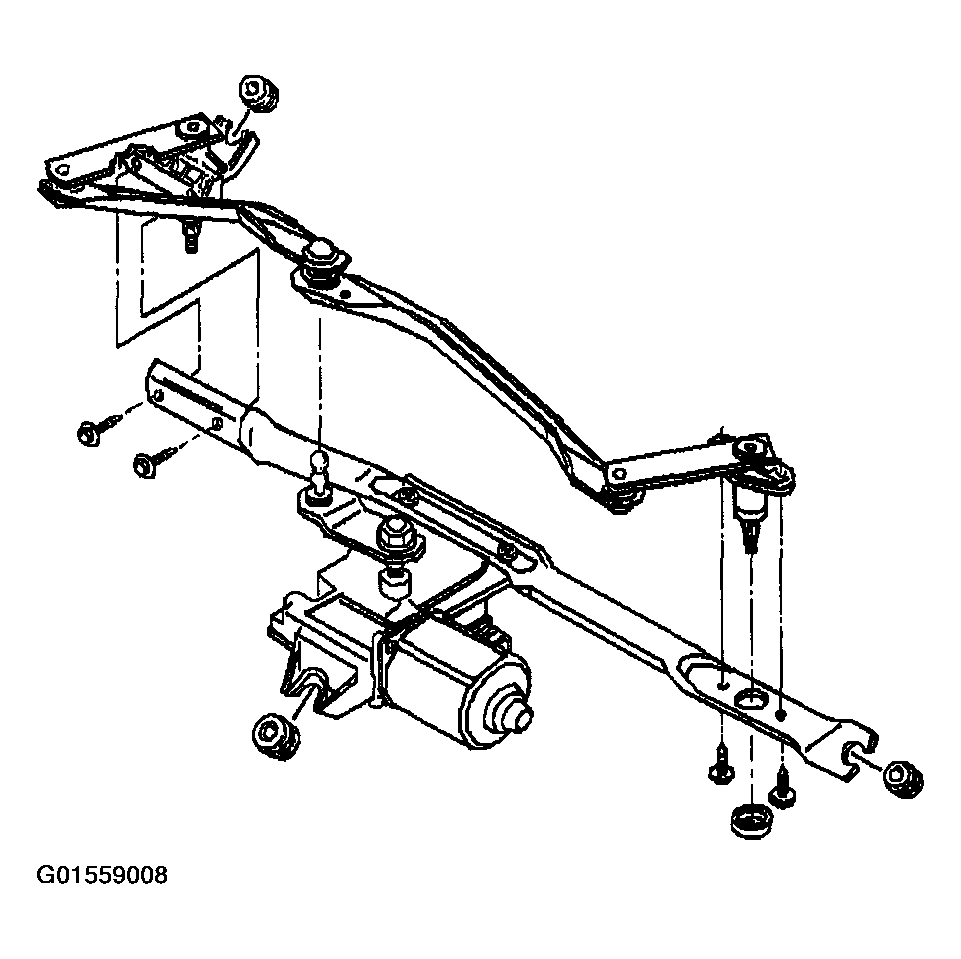

    Fig 1: Installing Wiper Transmission To Wiper Drive System Module Tube Frame
    G01559008Courtesy of GENERAL MOTORS CORP.
  4. Using the J 39529, connect the wiper transmission to the wiper motor crank arm.
    Fig 2: Connecting Wiper Transmission To Wiper Motor Crank Arm
    G01559009Courtesy of GENERAL MOTORS CORP.
  5. Position the wiper drive system module to the vehicle.
  6. Install the wiper drive system module screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

  7. Connect the wiper motor electrical connector.
  8. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  9. Inspect the wipers for proper operation.

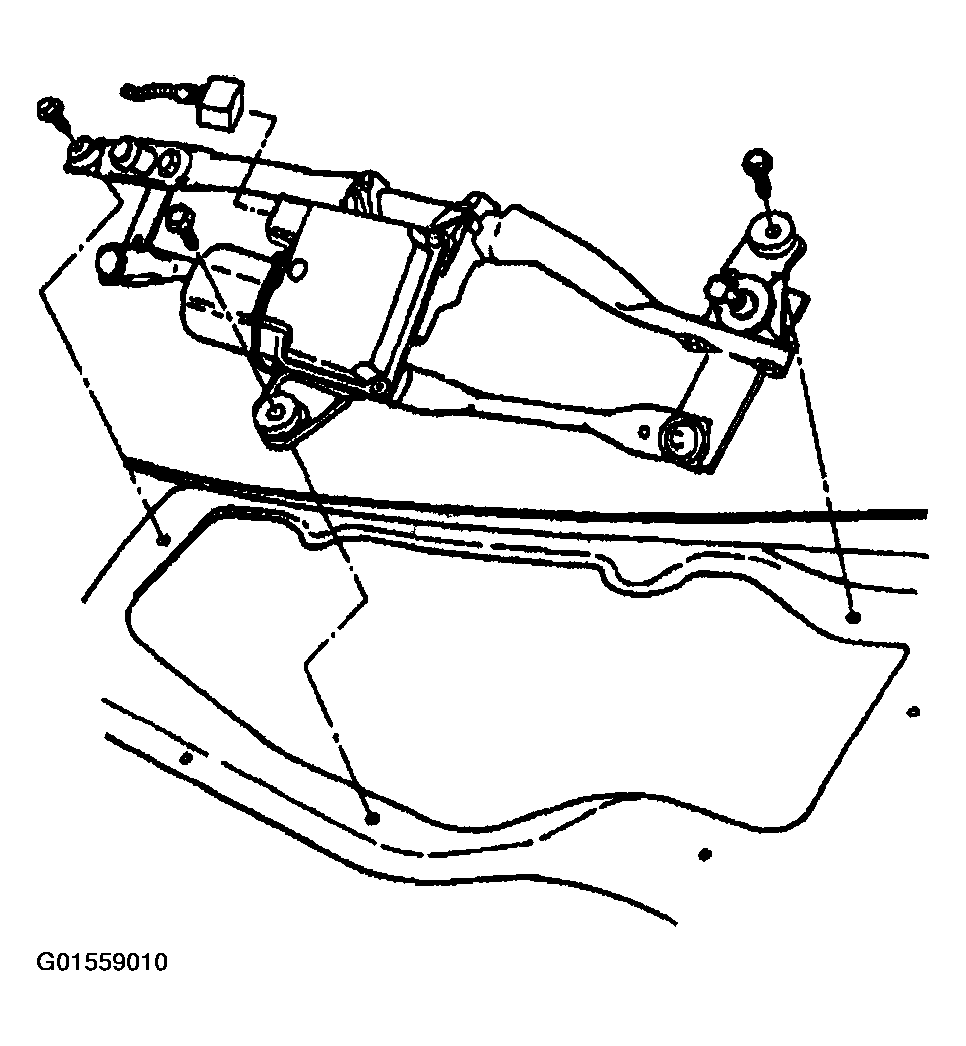

    Fig 3: Installing Wiper Drive System Module
    G01559010Courtesy of GENERAL MOTORS CORP.
