Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Disconnect the wiper motor electrical connector.
  3. Remove the screws from the wiper drive system module.
  4. Remove the wiper drive system module from the vehicle.

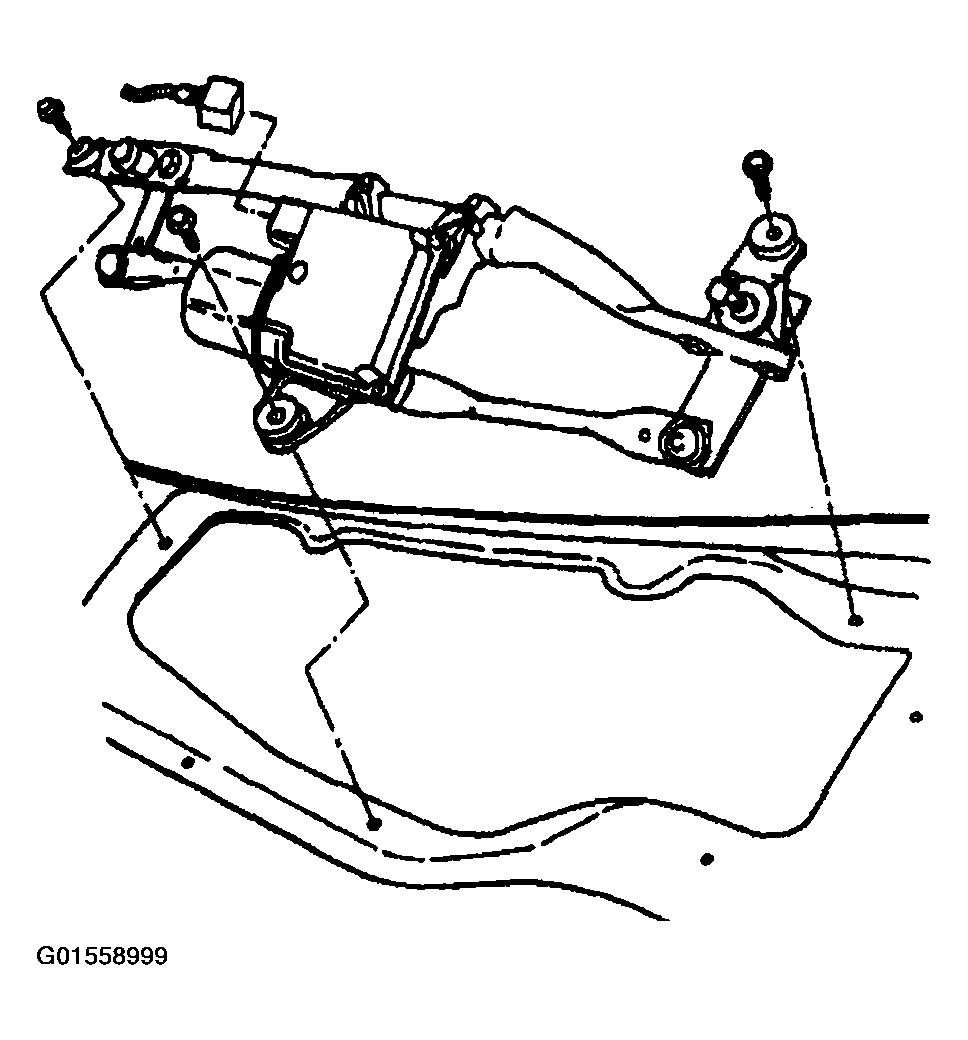

    Fig 1: Removing Wiper Drive System Module
    G01558999Courtesy of GENERAL MOTORS CORP.
  5. Using J 39232, disconnect the transmission from the wiper motor crank arm.
    Fig 2: Disconnecting Transmission From Wiper Motor Crank Arm
    G01559000Courtesy of GENERAL MOTORS CORP.
  6. Remove the wiper motor screws.
  7. Remove the wiper motor from the wiper drive system module.

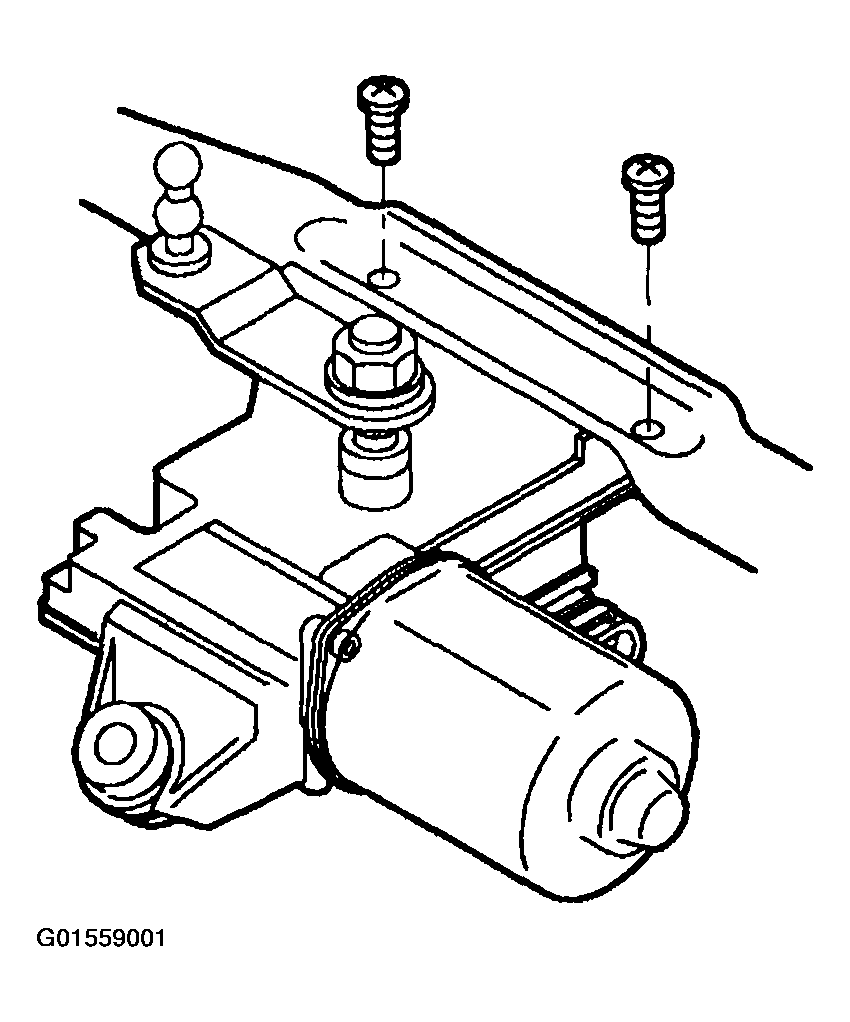

    Fig 3: Removing Wiper Motor Screws
    G01559001Courtesy of GENERAL MOTORS CORP.
