Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Remove the wiper motor cover screws.
  3. Remove the wiper motor cover from the wiper motor.
  4. Disconnect the wiper motor electrical connector.

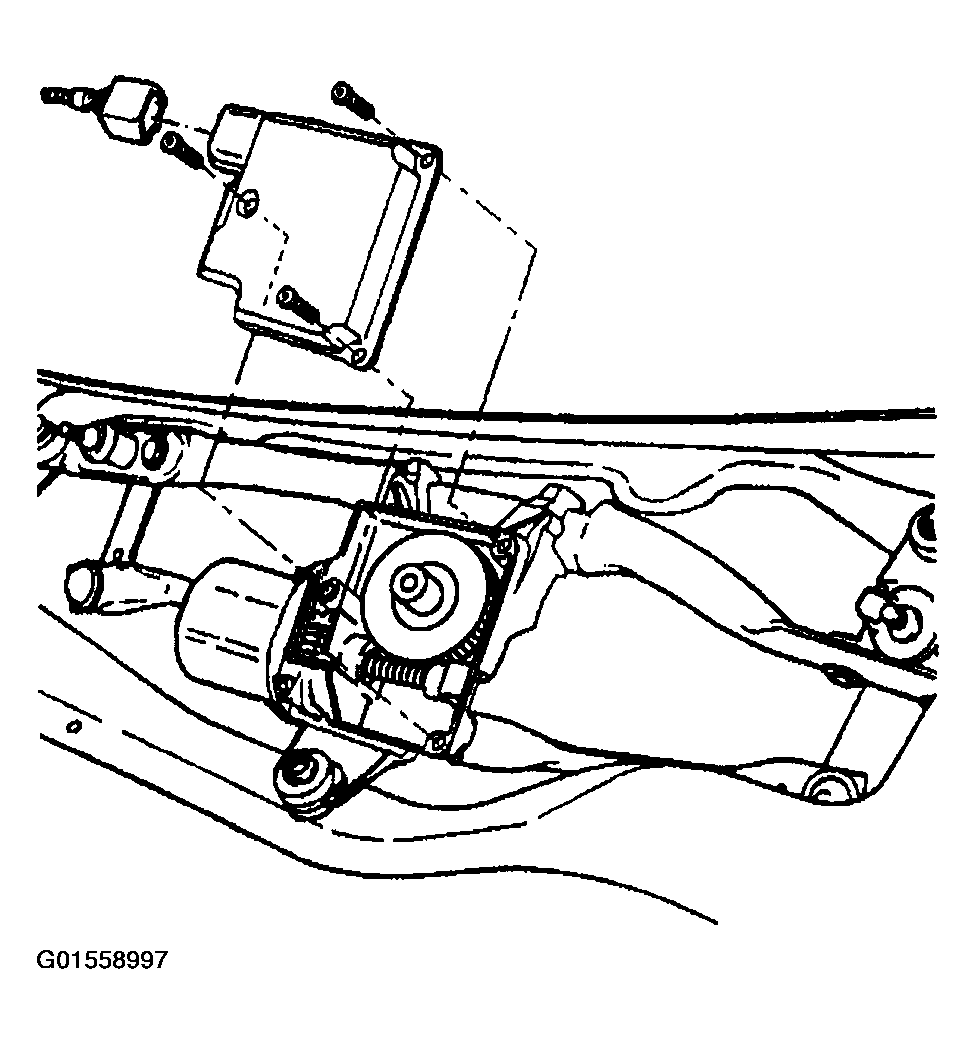

    Fig 1: Removing Wiper Motor Cover
    G01558997Courtesy of GENERAL MOTORS CORP.
