Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wiper motor electrical connector.
  2. Position the wiper motor cover onto the wiper motor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the wiper motor cover screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  5. Inspect the wipers for proper operation.

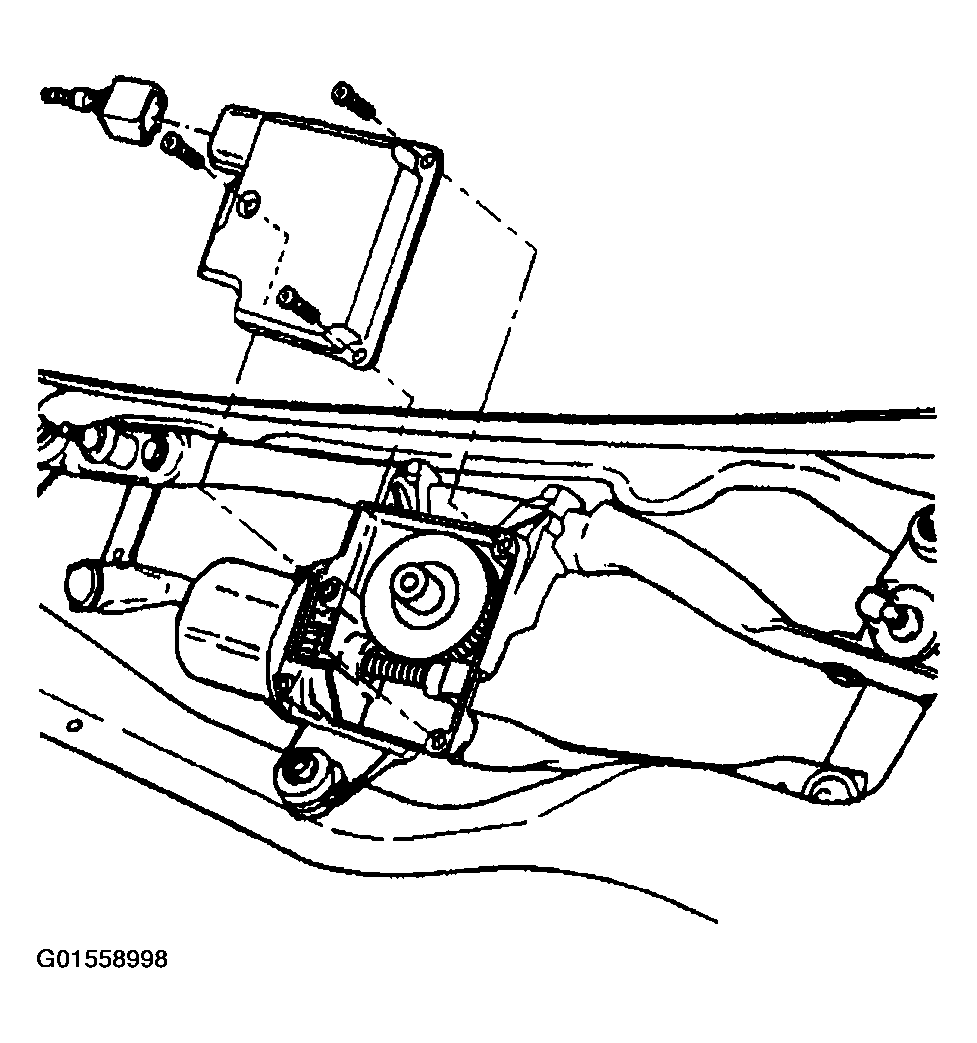

    Fig 1: Installing Wiper Motor Cover
    G01558998Courtesy of GENERAL MOTORS CORP.
