Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to the ACCY position.
  2. Turn the wiper switch to the DELAY position.
  3. Turn the ignition OFF when the wiper arms are in the innerwipe position and not moving.
  4. Mark the position of the wiper arm on the windshield with tape.
  5. Disconnect the washer hose from the washer nozzle.
  6. Remove the wiper arm nut cover.
  7. Remove the wiper arm nut.
  8. Using the J 39822, remove the wiper arm from the wiper transmission.

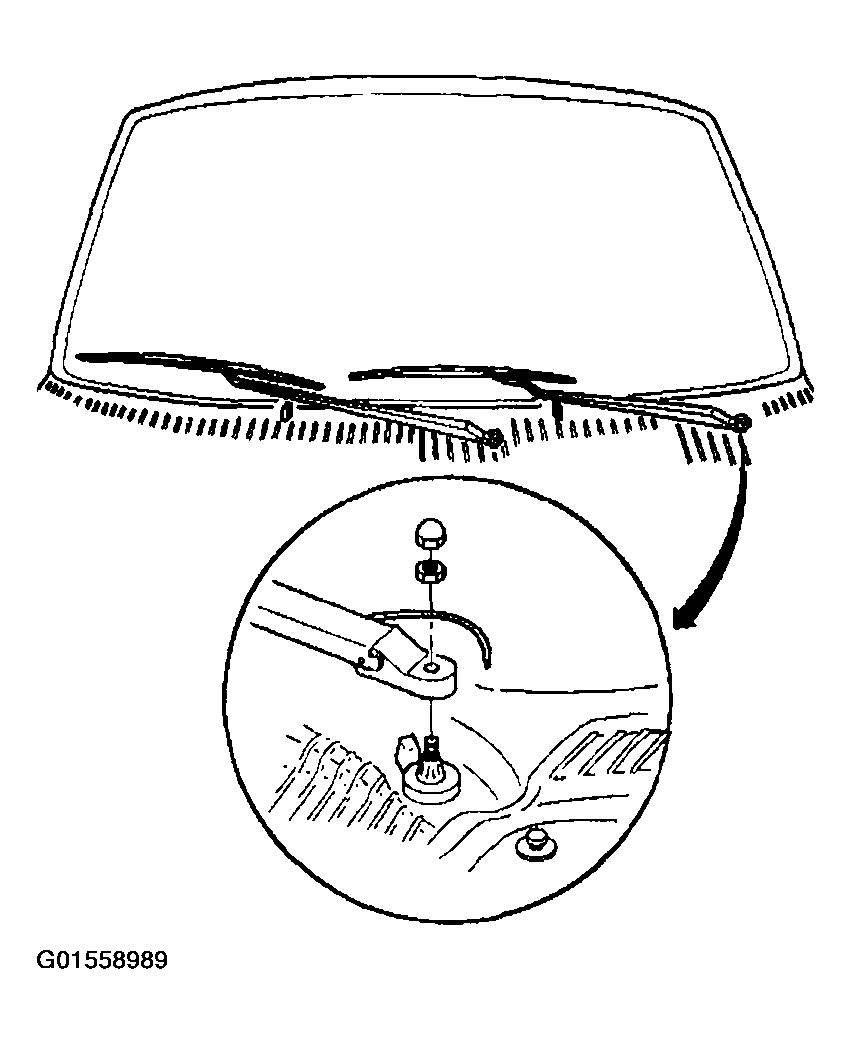

    Fig 1: Removing Wiper Arm
    G01558989Courtesy of GENERAL MOTORS CORP.
