Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper arm onto the wiper transmission.
  2. Align the wiper arm to the tape marks on the windshield.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the wiper arm nut.

    Tighten

    Tighten the nut to 30 N.m (22 lb ft).

  4. Install the wiper arm nut cover.
  5. Connect the washer hose to the washer nozzle.
  6. Remove the tape marks from the windshield.
  7. Inspect the wipers for proper operation.

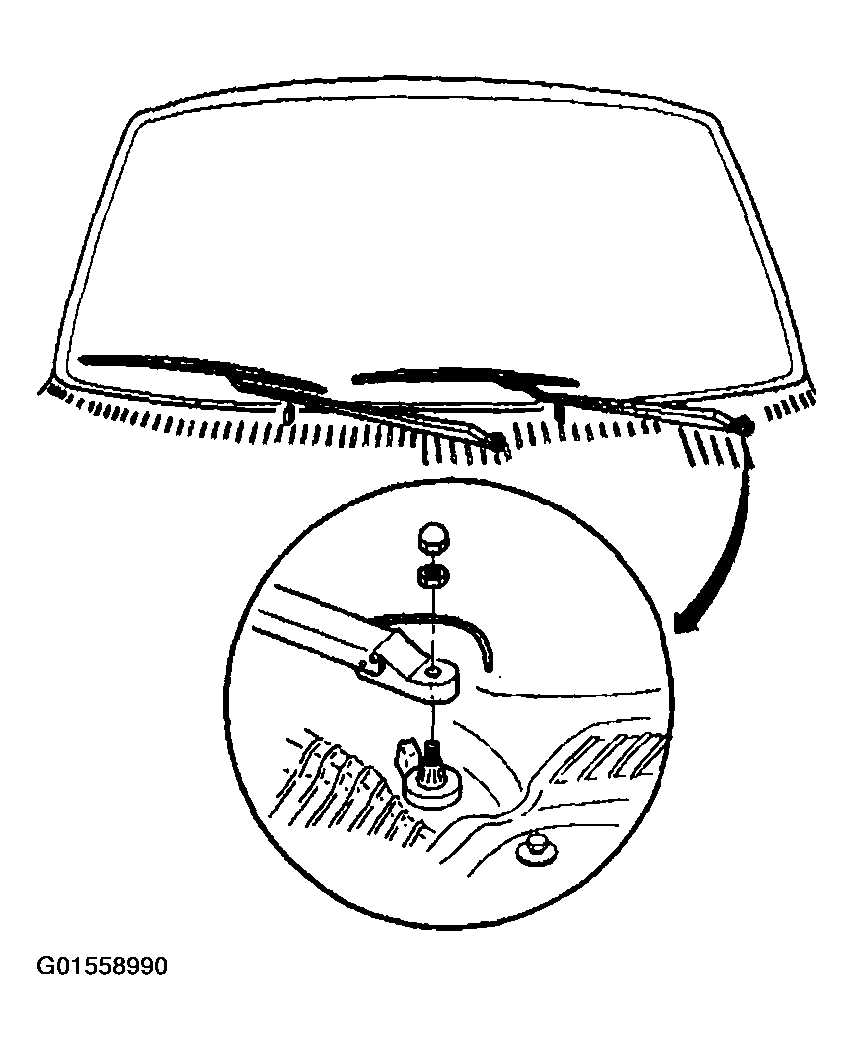

    Fig 1: Installing Wiper Arm
    G01558990Courtesy of GENERAL MOTORS CORP.
