Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Drain the washer solvent from the washer solvent container.
  3. Remove the washer solvent container cap.
  4. Remove the left front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.
  5. Disconnect the anti-lock brake electrical harness from the washer solvent container.

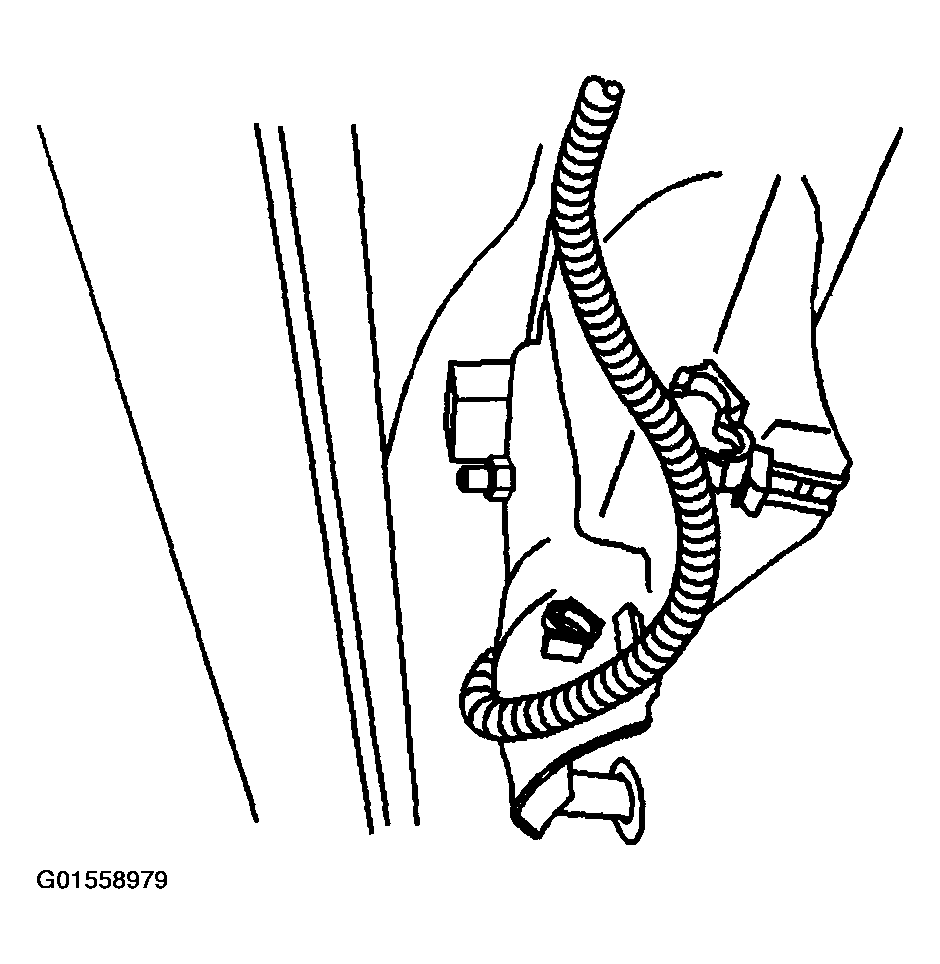

    Fig 1: Disconnecting Anti-Lock Brake Electrical Harness From Washer Solvent Container
    G01558979Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the washer pump electrical connector.
  7. Disconnect the washer pump hose.

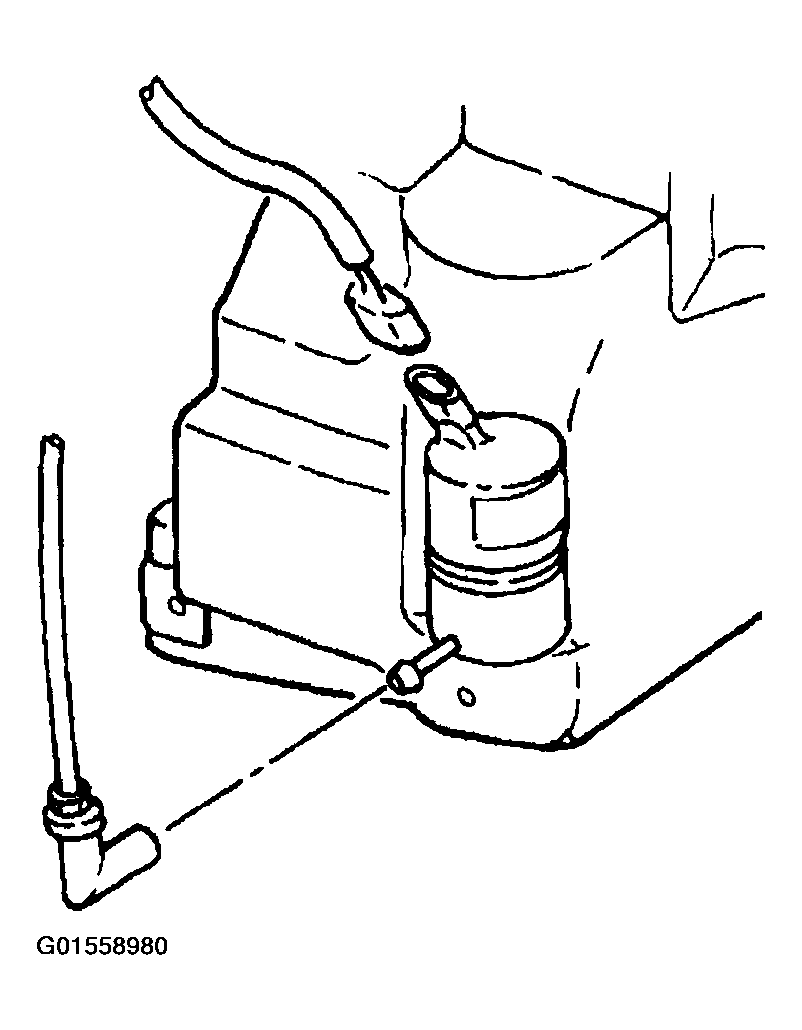

    Fig 2: Disconnecting Washer Pump Electrical Connector And Washer Pump Hose
    G01558980Courtesy of GENERAL MOTORS CORP.
  8. Remove the push-in retainer from the air induction tube.
  9. Remove the washer solvent container screws.
  10. Remove the washer solvent container from the vehicle.

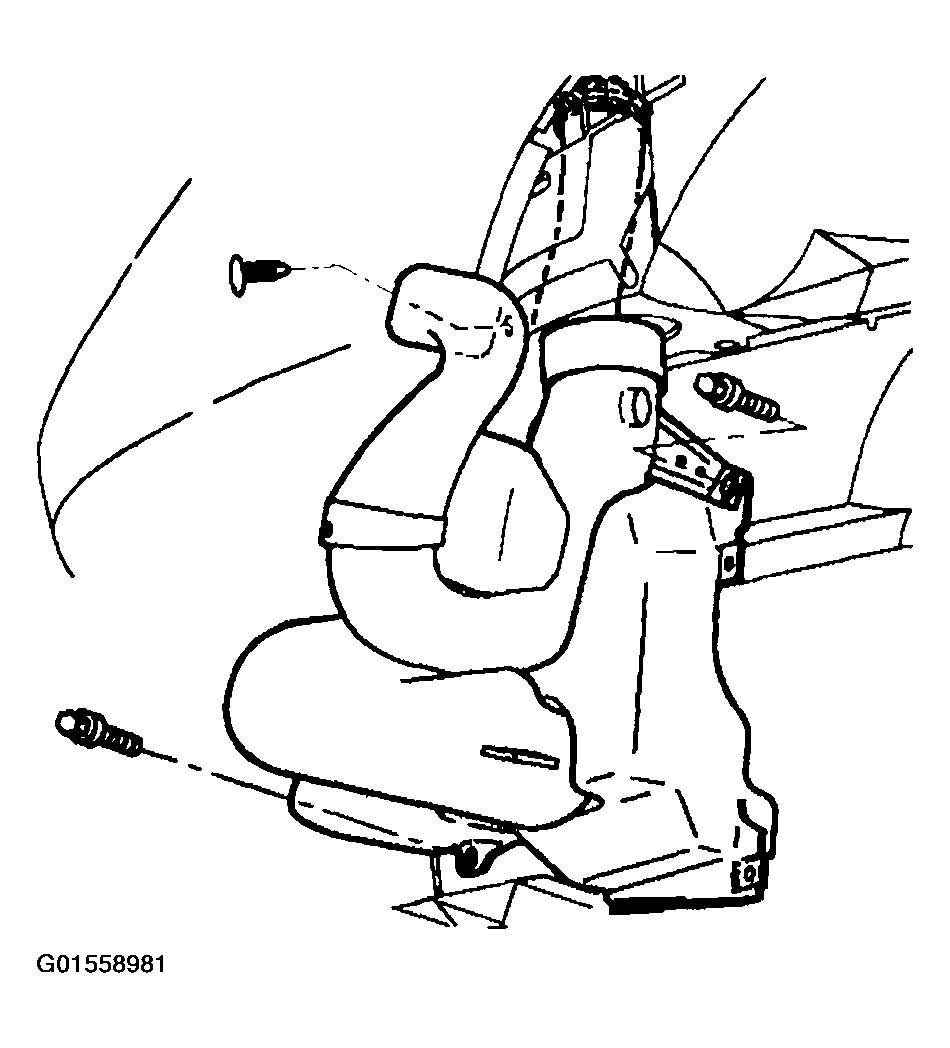

    Fig 3: Removing Washer Solvent Container
    G01558981Courtesy of GENERAL MOTORS CORP.
  11. Remove the air induction tube screw.
  12. Remove the air induction tube from the washer solvent container.

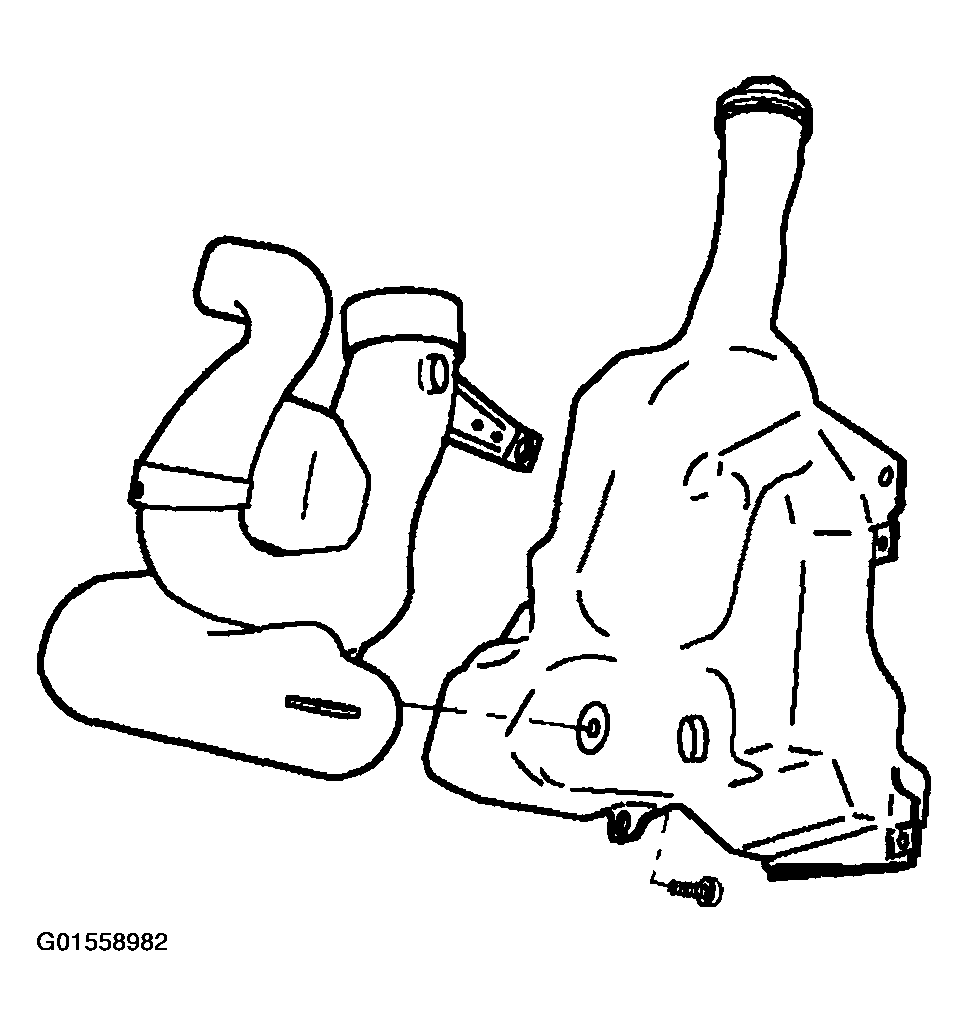

    Fig 4: Removing Air Induction Tube From Washer Solvent Container
    G01558982Courtesy of GENERAL MOTORS CORP.
