Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the washer solvent from the washer solvent container.
  2. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  3. Disconnect the washer pump electrical connector.
  4. Disconnect the washer pump hose.
  5. Using a small flat-bladed tool, remove the washer pump from the washer solvent container.
  6. Using a small flat-bladed tool, remove the washer pump seal from the washer solvent container.

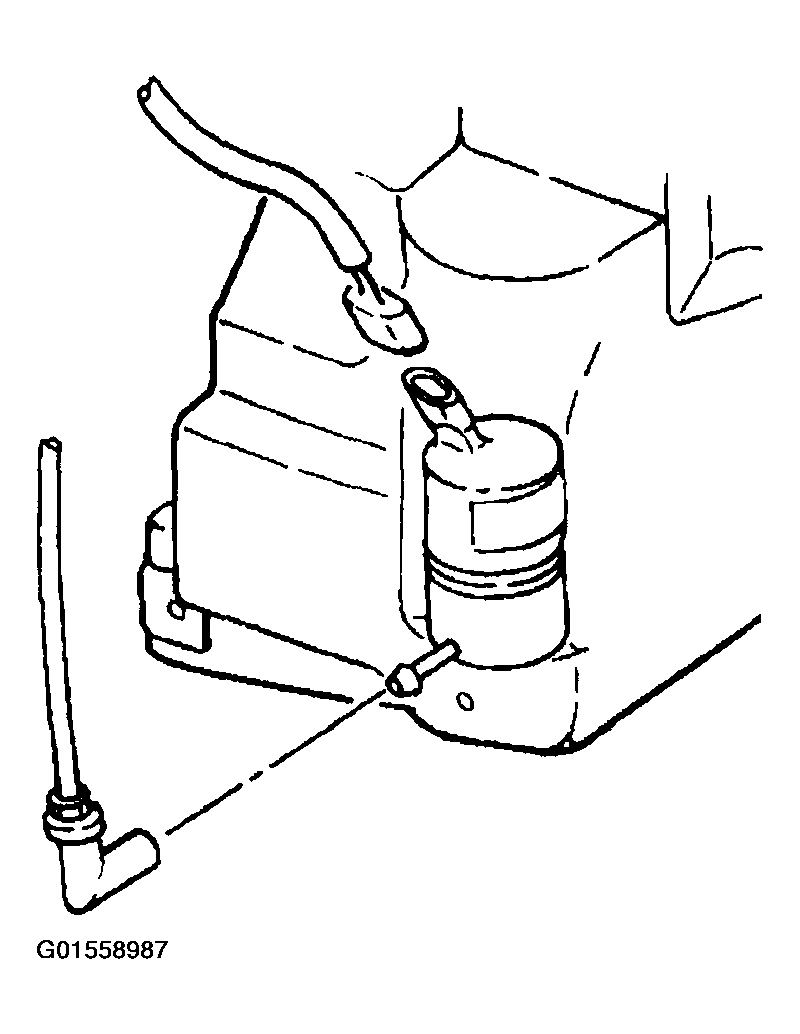

    Fig 1: Disconnecting Washer Pump Electrical Connector And Washer Pump Hose
    G01558987Courtesy of GENERAL MOTORS CORP.
