Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer pump seal to the washer solvent container, pressing in until fully seated.
  2. Position the washer pump to the washer solvent container, pressing in until fully seated.
  3. Connect the washer pump hose.
  4. Connect the washer pump electrical connector.
  5. Lower the vehicle.
  6. Fill the washer solvent container with washer solvent.
  7. Inspect the washer system for proper operation.

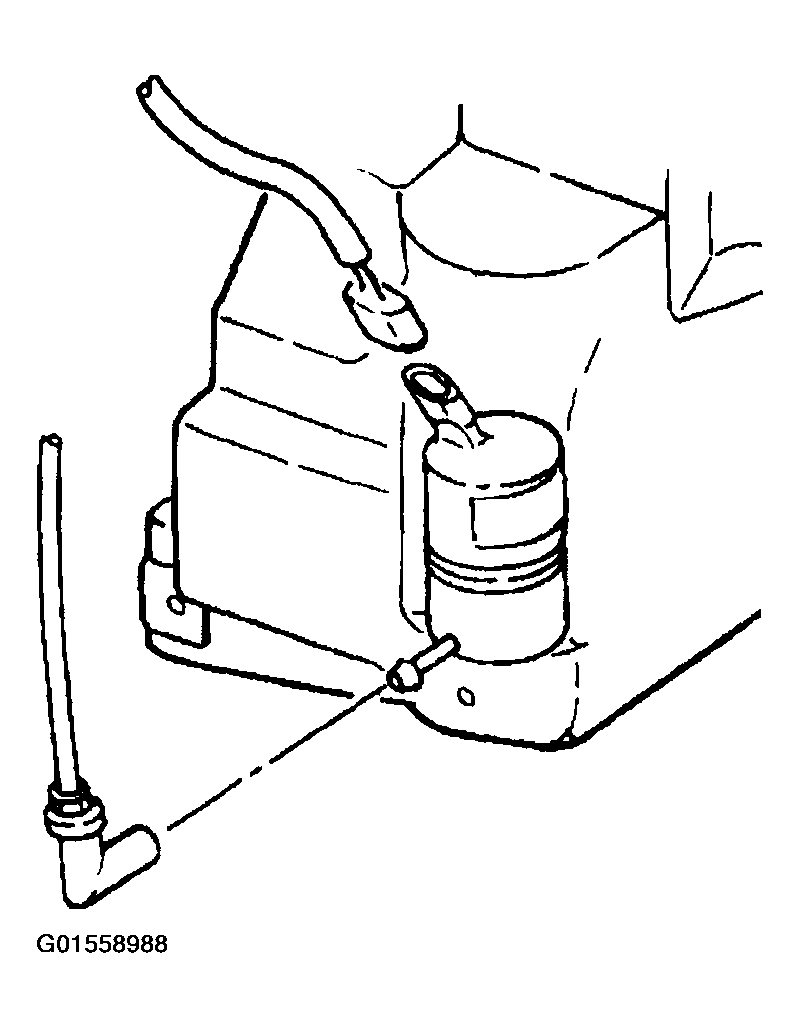

    Fig 1: Connecting Washer Pump Electrical Connector And Washer Pump Hose
    G01558988Courtesy of GENERAL MOTORS CORP.
