Test Description

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

7. This step tests for continuity through the 24K Ω resistor in the windshield wiper/washer switch. The connector behind the instrument panel knee bolster is suitable for performing this step.

8. This step tests for continuity through the delay resistor in the windshield wiper/washer switch. The connector behind the instrument panel knee bolster is suitable for performing this step.

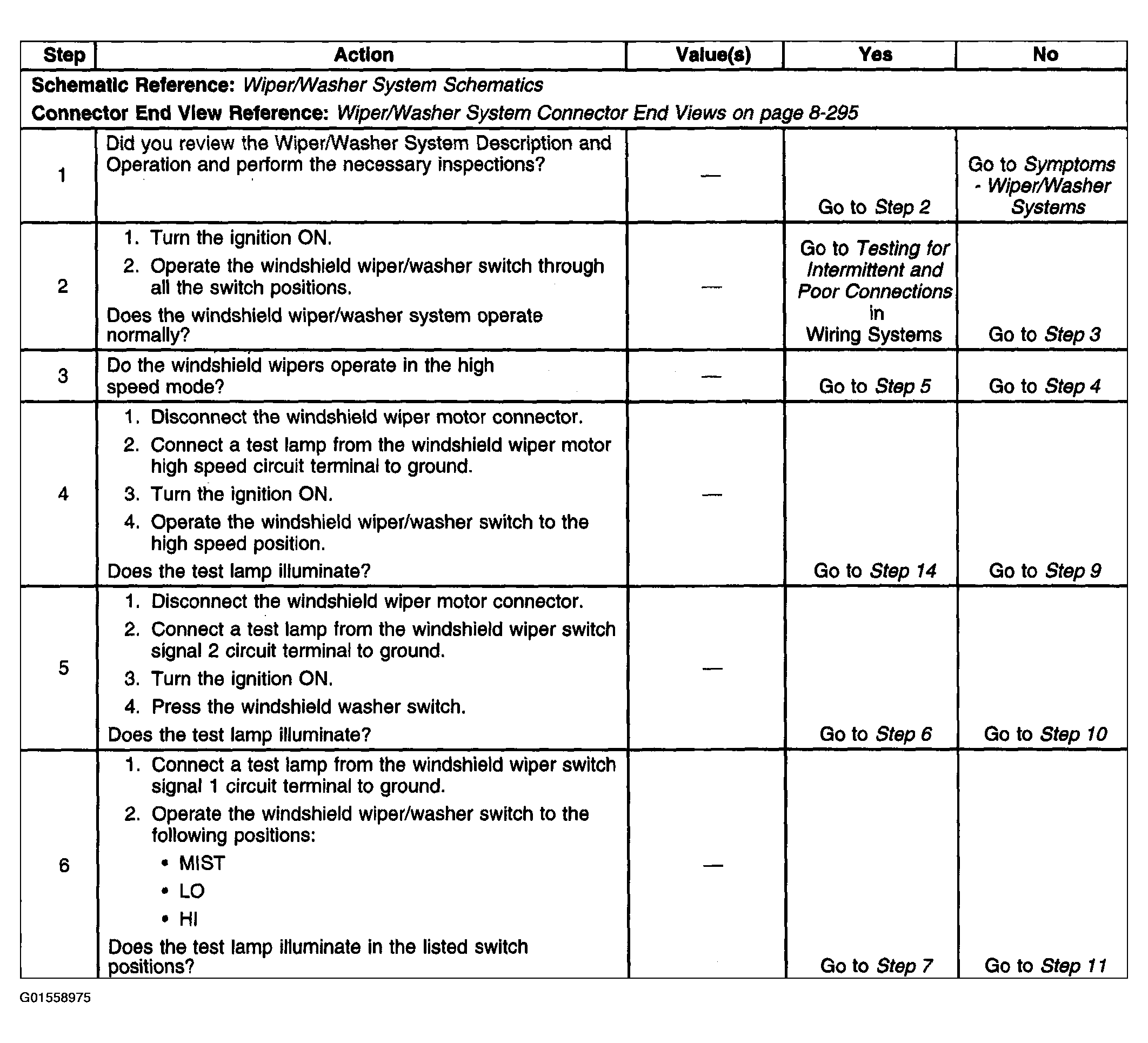

Fig 1: Wipers Inoperative - One Or More Modes (Without CD4) - Diagnostic Table (1 Of 2)
G01558975Courtesy of GENERAL MOTORS CORP.

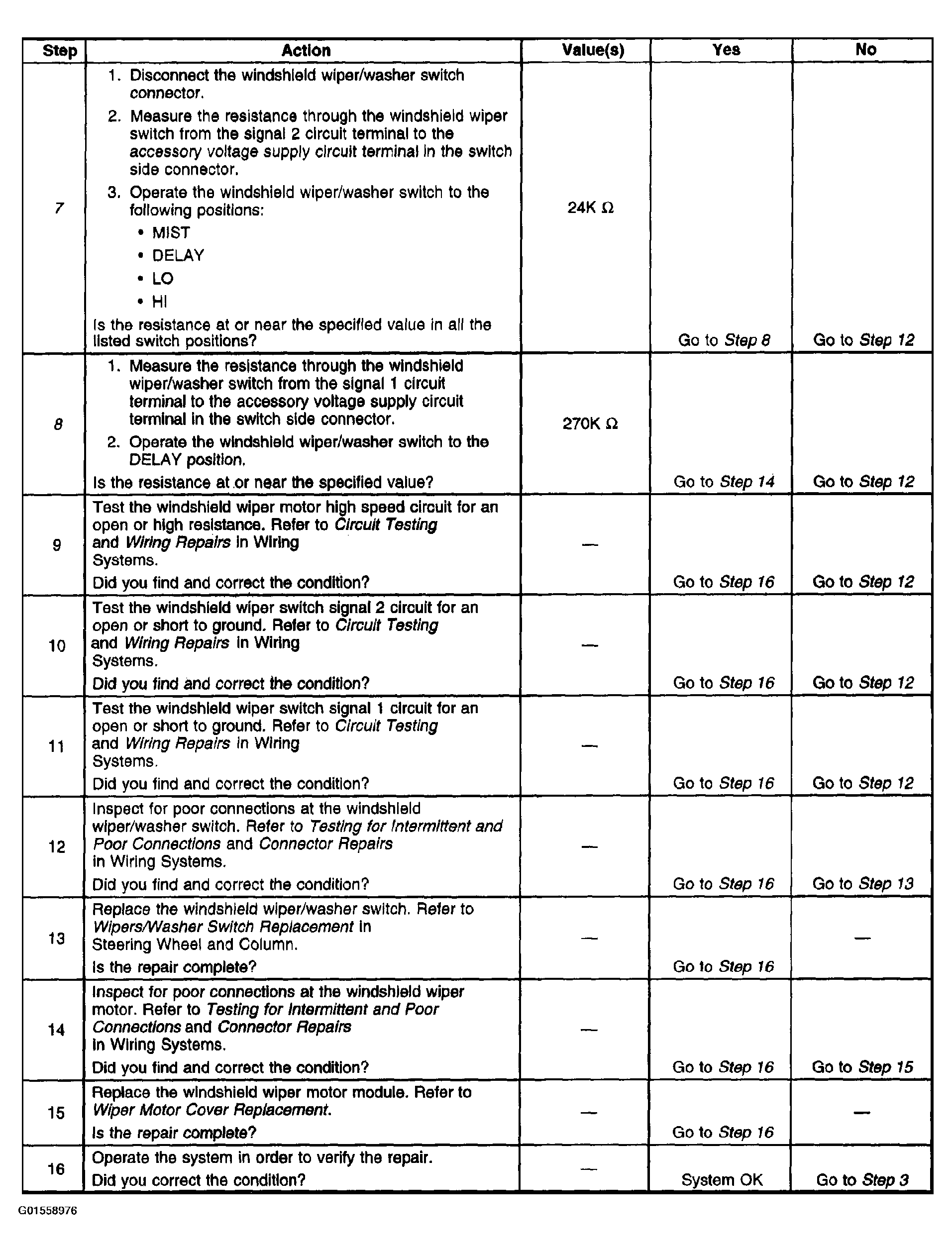

Fig 2: Wipers Inoperative - One Or More Modes (Without CD4) - Diagnostic Table (2 Of 2)
G01558976Courtesy of GENERAL MOTORS CORP.
