Vehicle Speed Sensor: Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire, 2002 Pontiac Grand Am, 2002 Oldsmobile Alero, and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

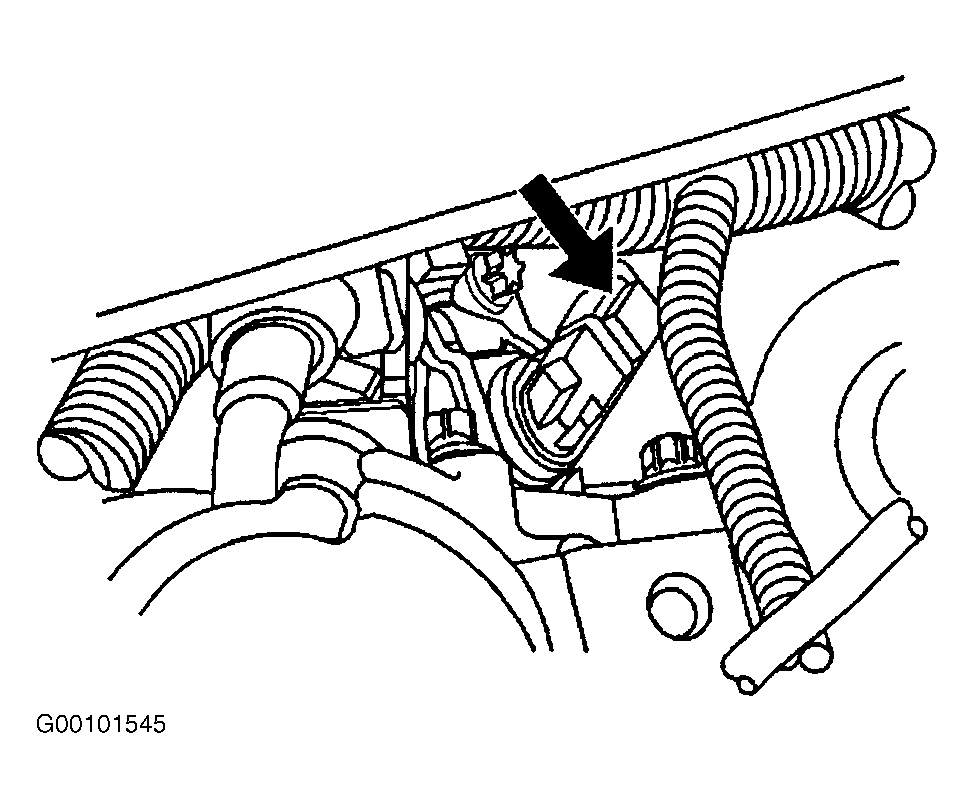

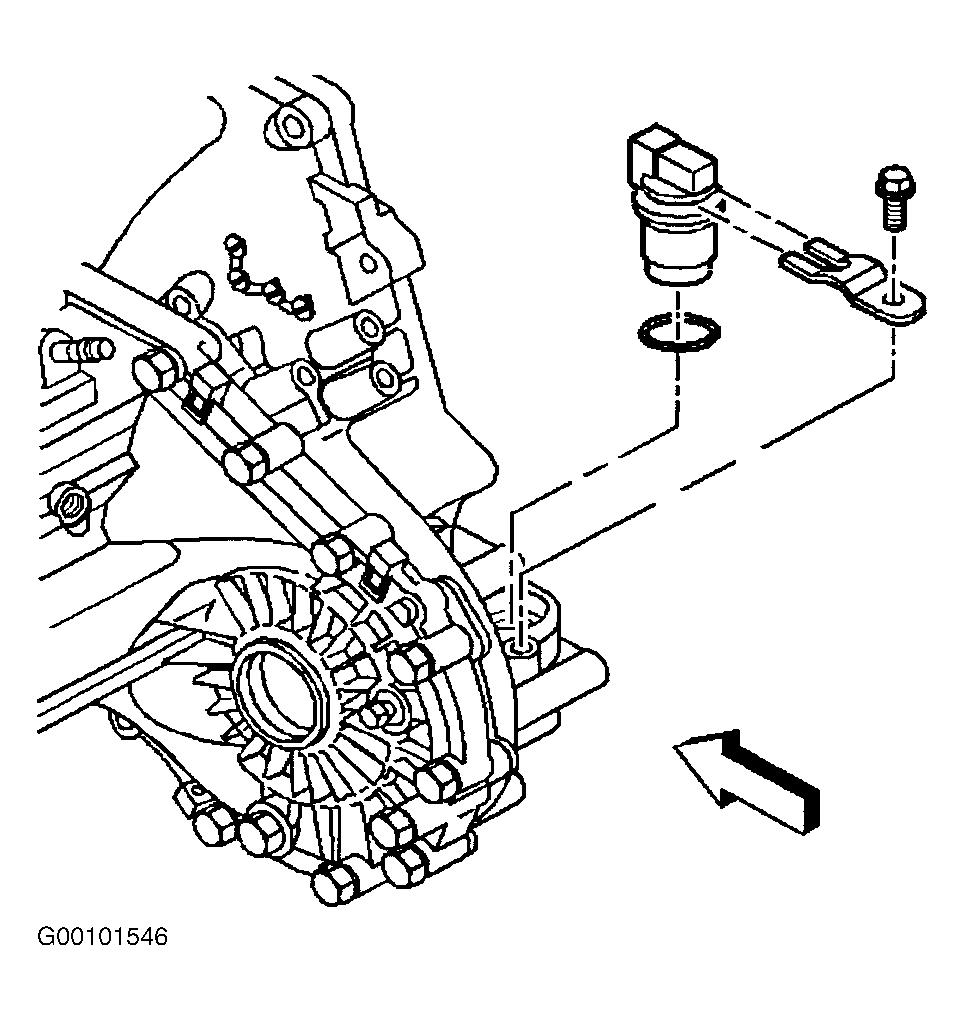

Lubricate a new O-ring with Dexron-III(R) ATF. Install the new O-ring. Install the VSS retainer. Install the VSS assembly. See Figure . Install the VSS retainer bolt. Tighten the bolt to specification. See TORQUE SPECIFICATIONS . Connect the VSS connector to the VSS. See Figure . Lower the vehicle.
