Shift Cable: Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire, 2002 Pontiac Grand Am, 2002 Oldsmobile Alero, and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Remove the console. See CONSOLE  . Lift up on the cable retainers. See Figure . Disconnect the cable ends from the shifter.
  2. Depress the locking tabs and remove the forward cable from the anchor. See Fig 1 . Remove the air inlet duct. On the transaxle end, disconnect the cable from the shift actuator. See Fig 2 .
  3. Remove both cables from the underhood cable bracket. See Fig 3 . Position the passenger front carpet aside. Remove the right rear floor duct elbow. See Fig 4 .
  4. Separate the grommet from the floor plan. See Fig 5 . Pull the cables through the passenger floor opening.

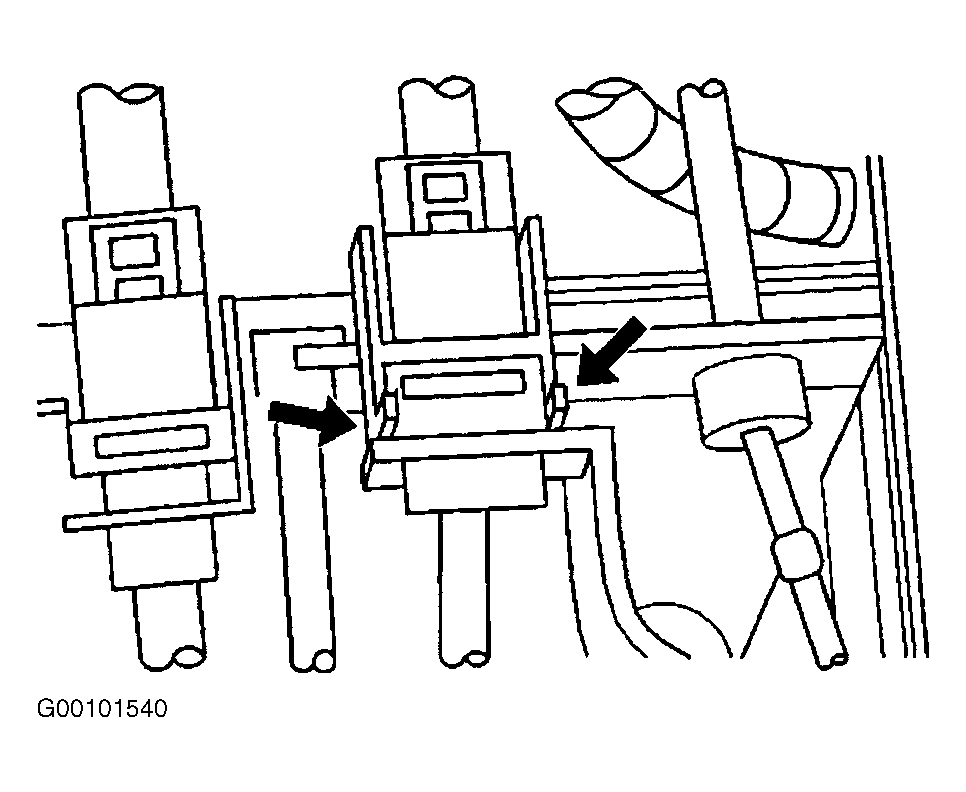

Fig 1: Identifying Locking Tabs
G00101540Courtesy of GENERAL MOTORS CORP.

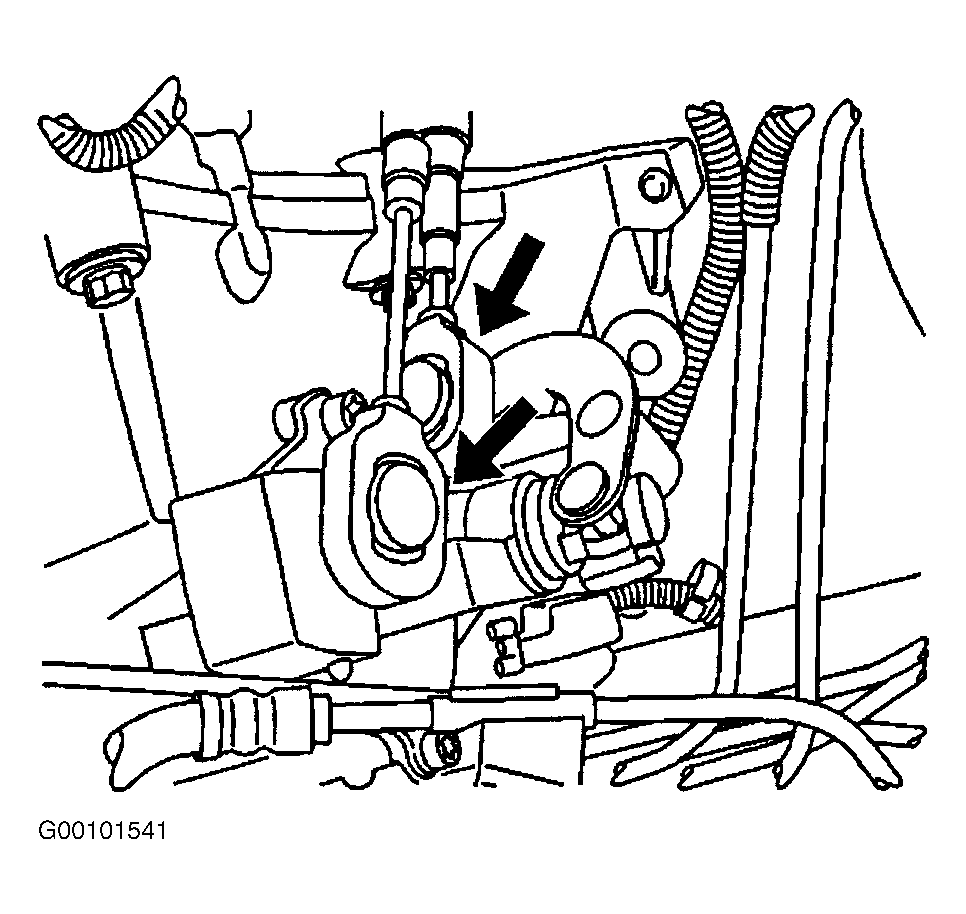

Fig 2: Removing & Installing Shift Cables (At Shift Actuator)
G00101541Courtesy of GENERAL MOTORS CORP.

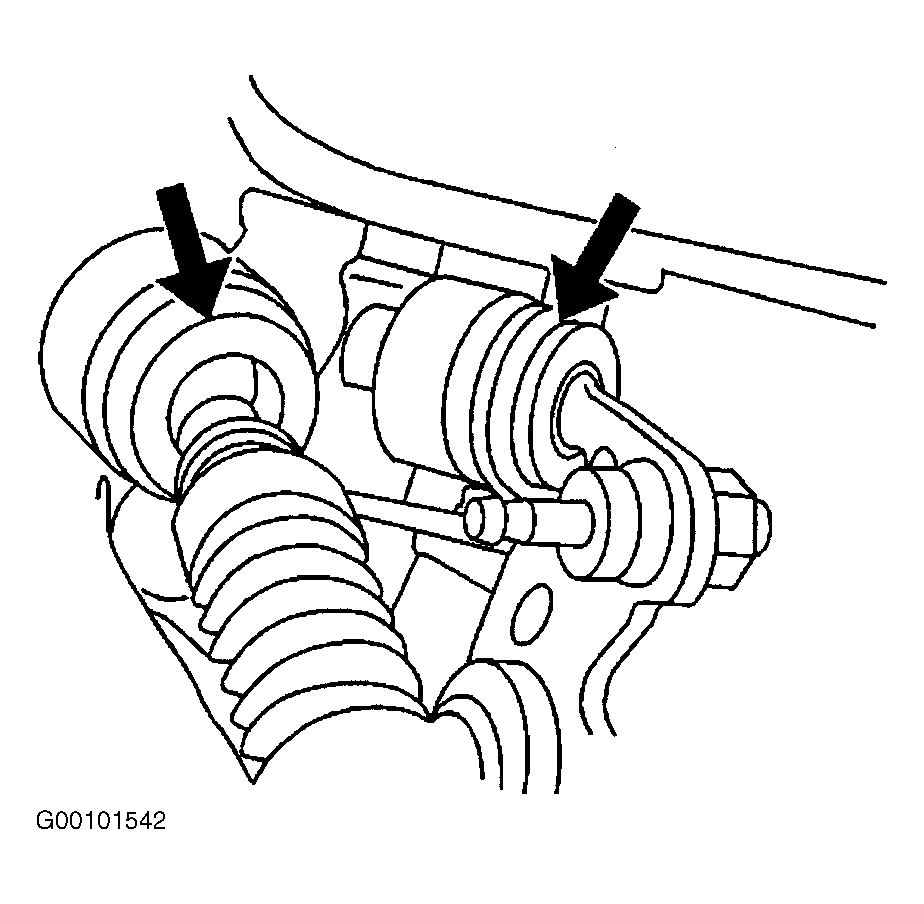

Fig 3: Removing & Installing Shift Cables (At Shift Bracket)
G00101542Courtesy of GENERAL MOTORS CORP.

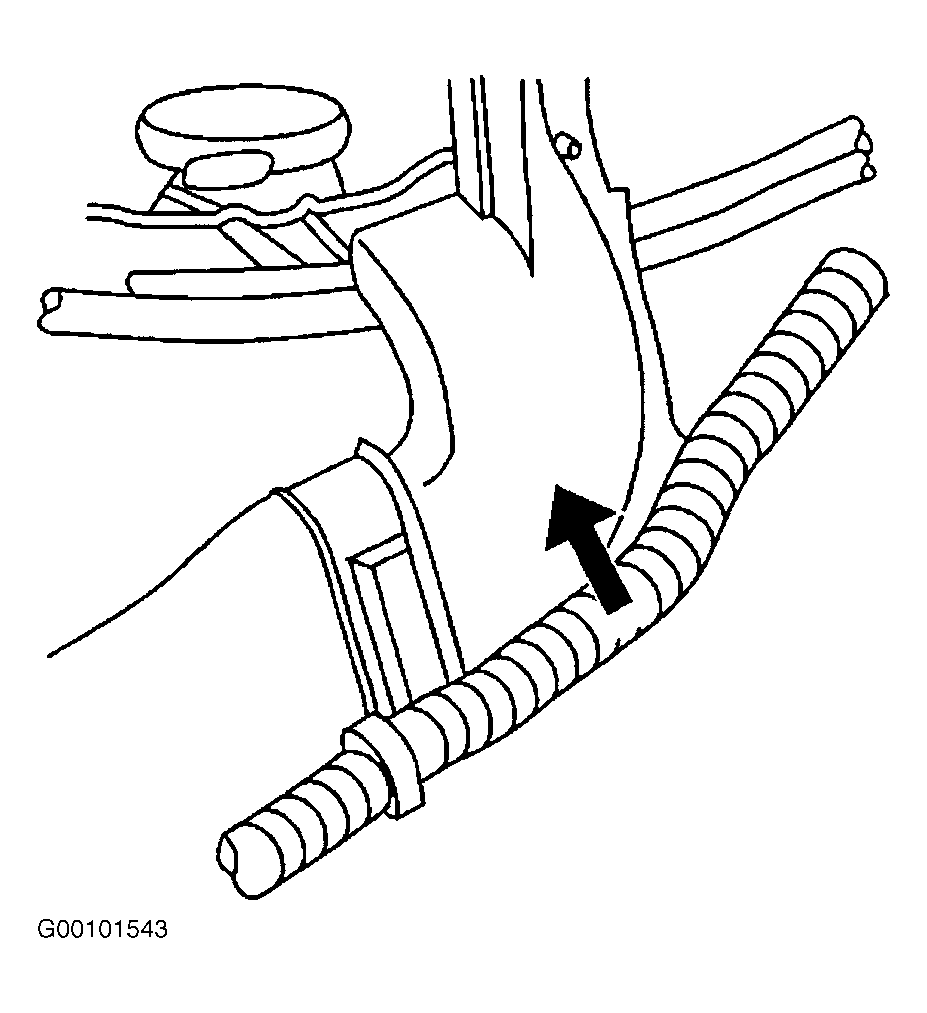

Fig 4: Identifying Floor Duct
G00101543Courtesy of GENERAL MOTORS CORP.

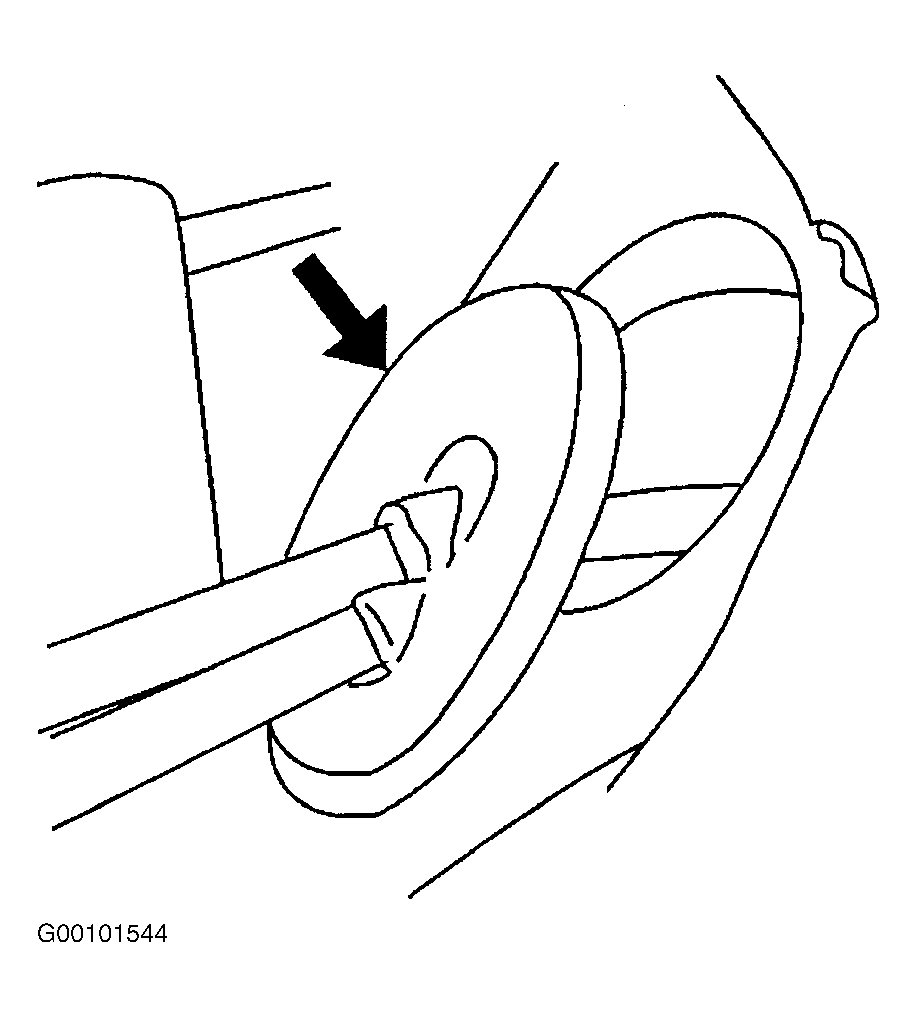

Fig 5: Removing & Installing Shift Cable Grommet
G00101544Courtesy of GENERAL MOTORS CORP.
