Checking Fluid Levels

WARNING: This page is about a different car, the 2002 Pontiac Sunfire, 2002 Pontiac Grand Am, 2002 Oldsmobile Alero, and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect the fluid level only when the engine is off. Ensure the vehicle is level. The transaxle must be cold.

Raise and support the vehicle. Remove the level check plug. Verify the fluid is up to the opening. Perform the following procedure if no fluid is visible:
1. Lower the vehicle.
2. Remove transaxle filler cap. See Fig 1 .
3. Add appropriate fluid to the level check opening until the level check opening begins to leak fluid. See Fig 2 .
4. Raise and suitably support the vehicle.
Install the fluid level check plug and tighten to specification. See TORQUE SPECIFICATIONS . Lower the vehicle.

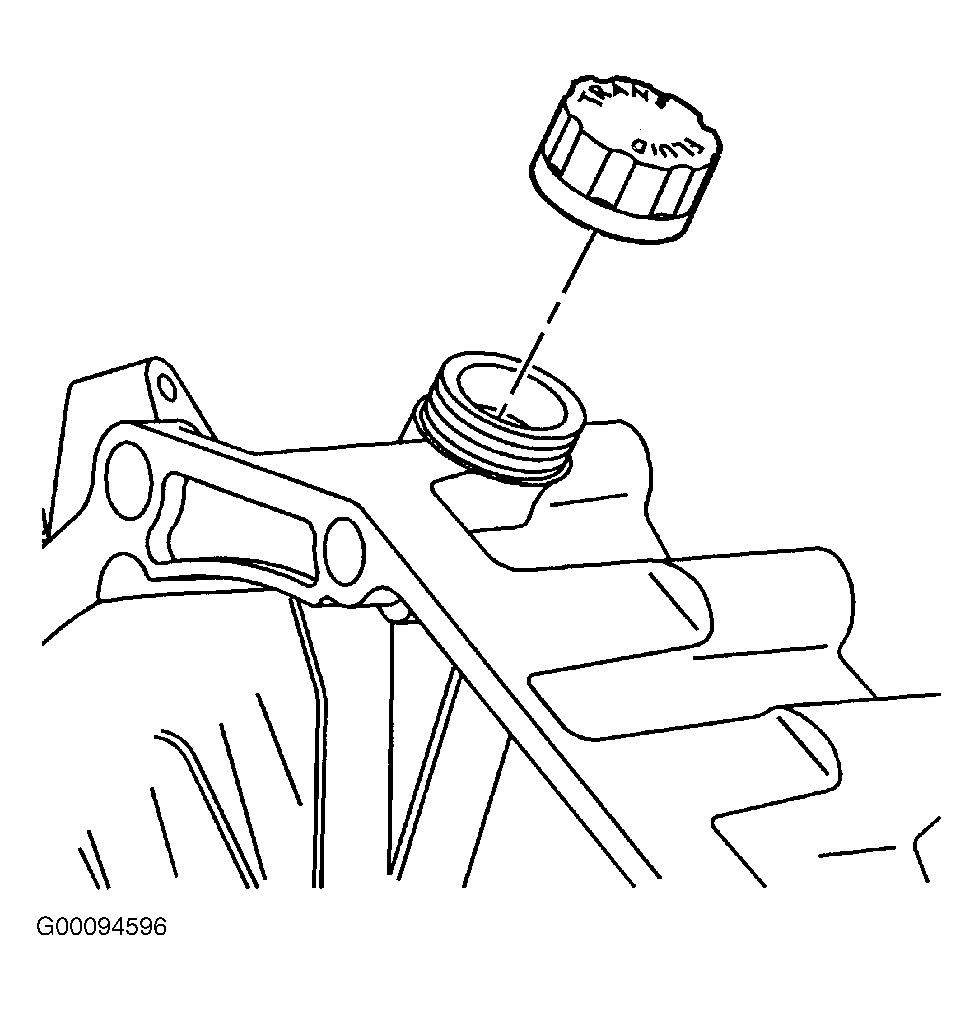

Fig 1: Removing & Installing Filler Cap

Courtesy of GENERAL MOTORS CORP.

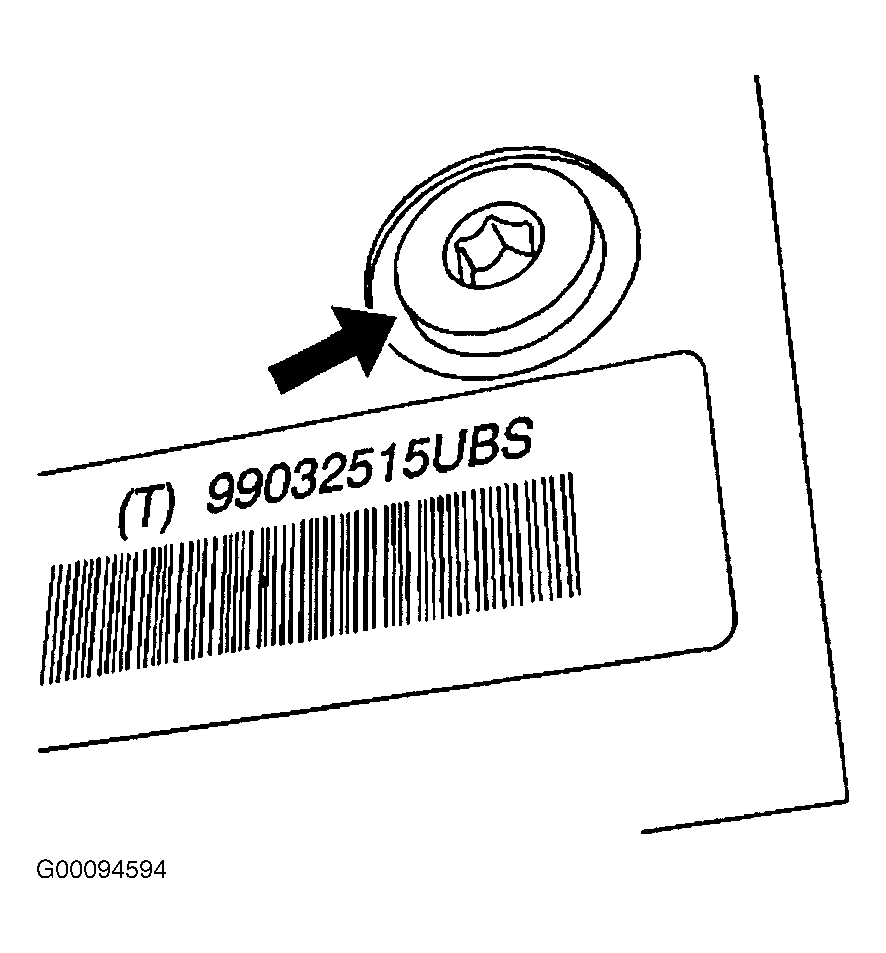

Fig 2: Locating Fluid Level Check Plug

Courtesy of GENERAL MOTORS CORP.
