Section 34 (Manual Transmission Servicing): Identification: Transaxle

WARNING: This page is about a different car, the 2002 Pontiac Sunfire, 2002 Pontiac Grand Am, 2002 Oldsmobile Alero, and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

There are various possible locations for the Getrag Vehicle Identification Number (VIN) derivative (1). See Fig 1 .

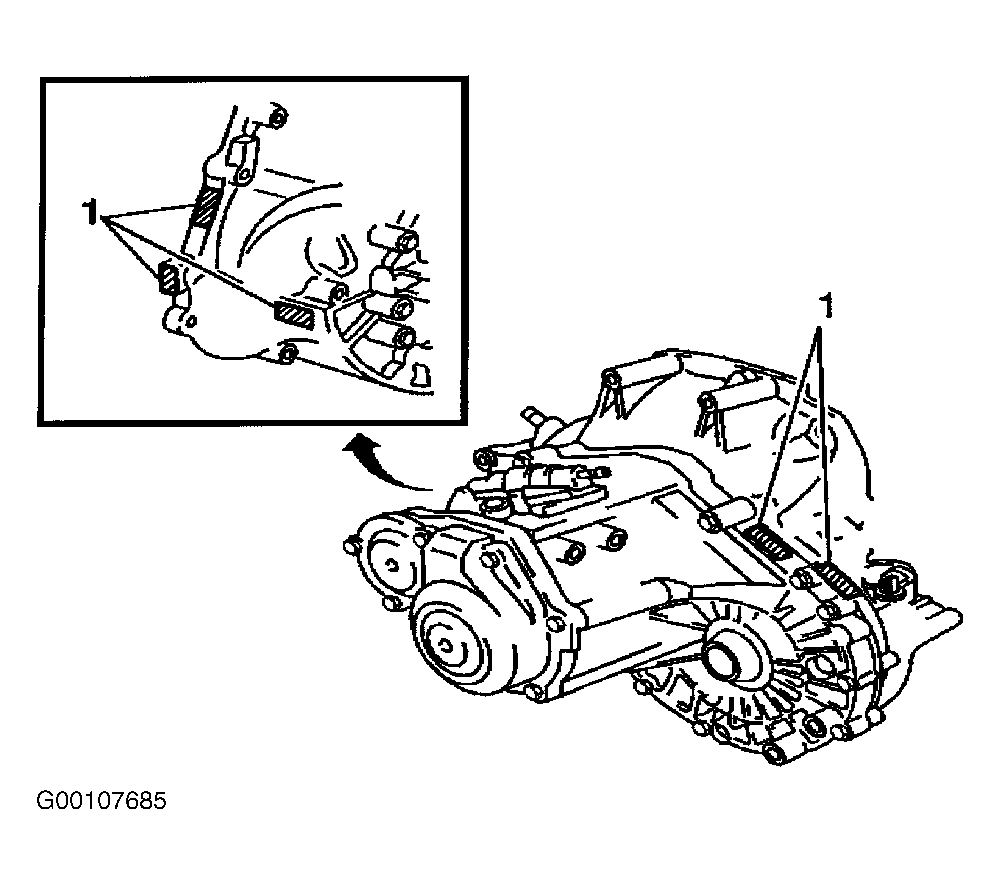

Fig 1: Locating Transaxle Identification Tags
G00107685Courtesy of GENERAL MOTORS CORP.
