Interior Lights Schematics

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

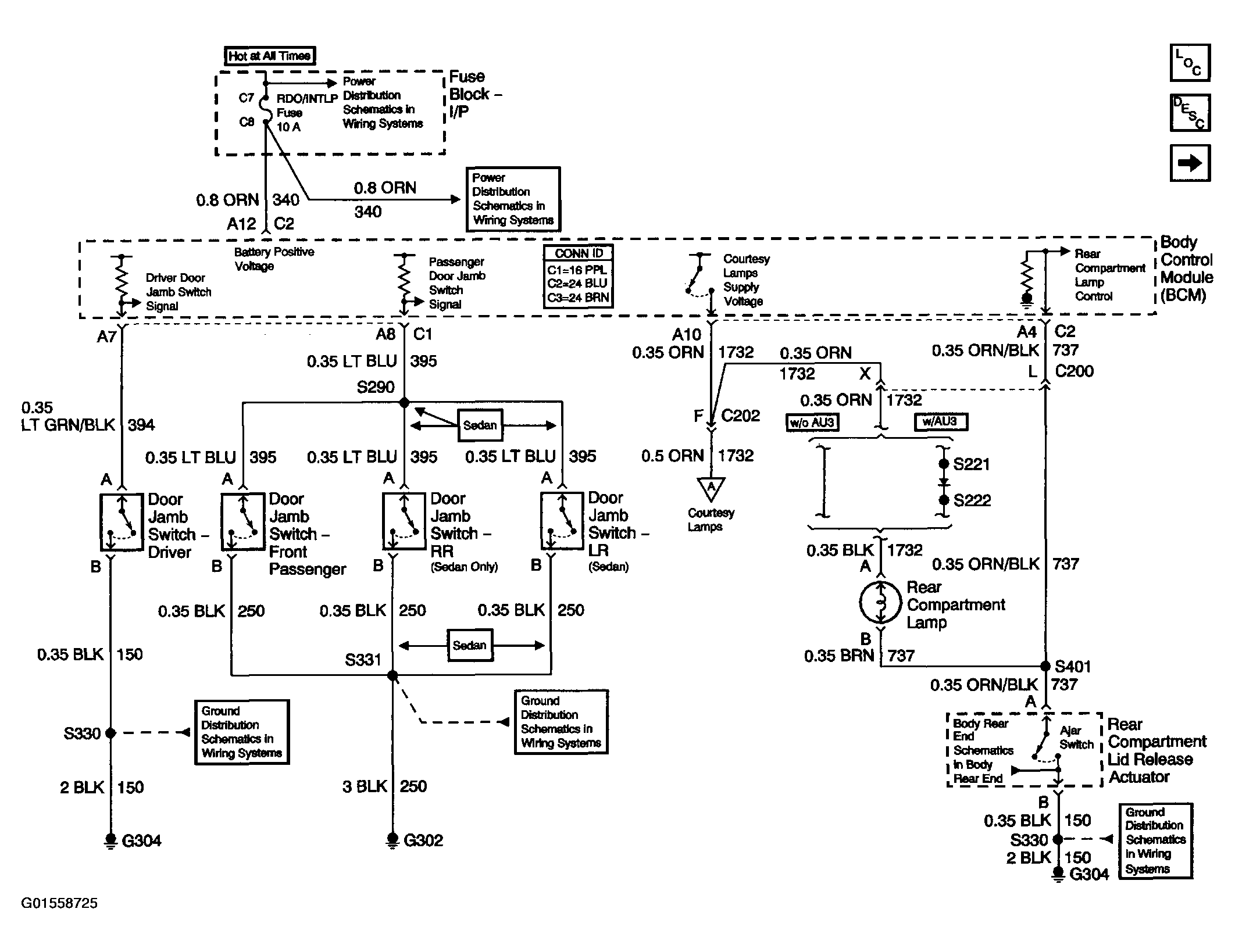

Fig 1: Interior Lights Schematic (Door Switch Signals And Courtesy Lamps Controls)

Courtesy of GENERAL MOTORS CORP.

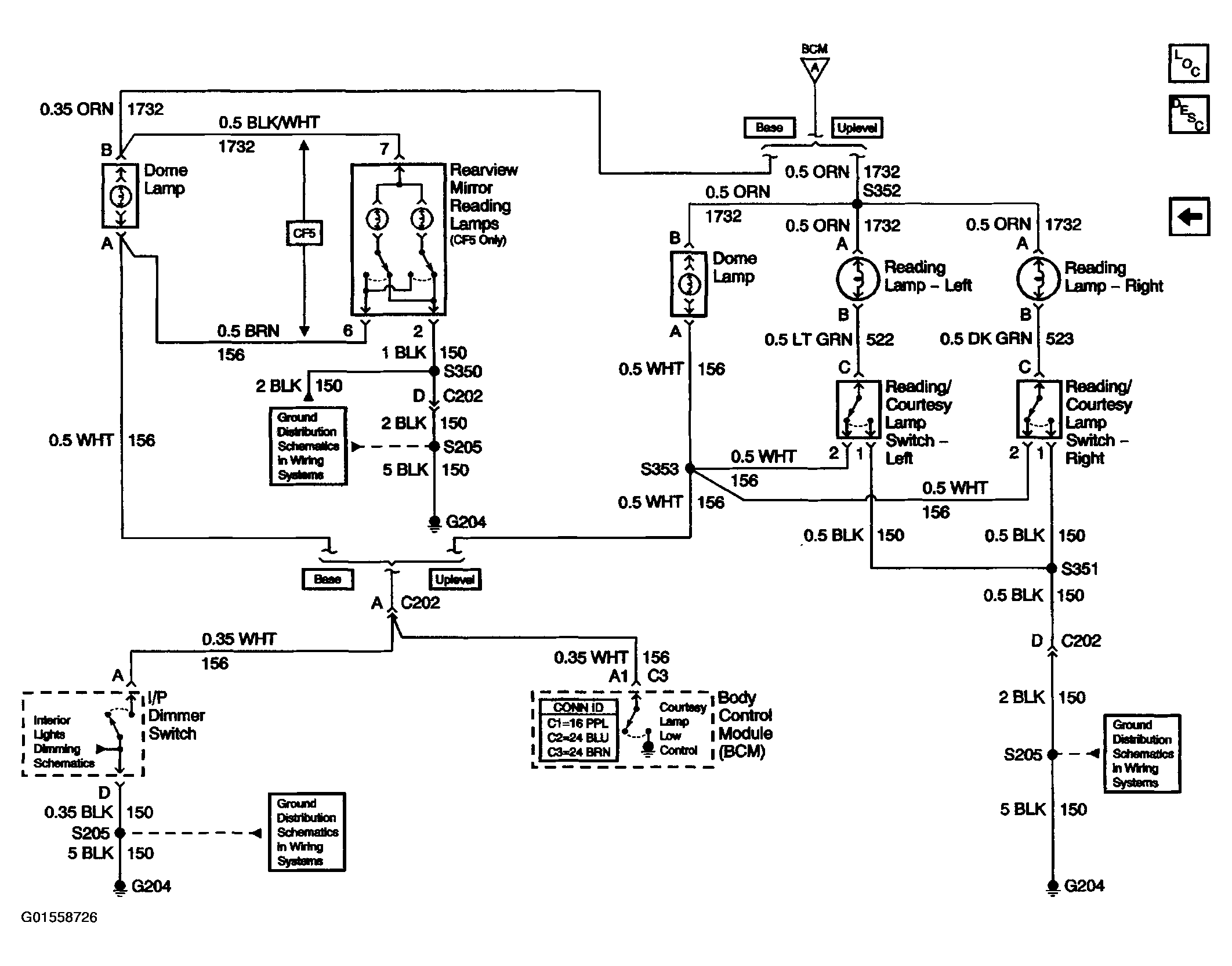

Fig 2: Interior Lights Schematic (Courtesy/Reading Lamps)

Courtesy of GENERAL MOTORS CORP.
