Headlights/Daytime Running Lights (DRL) Schematics (Controls and Indicators - Domestic)

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

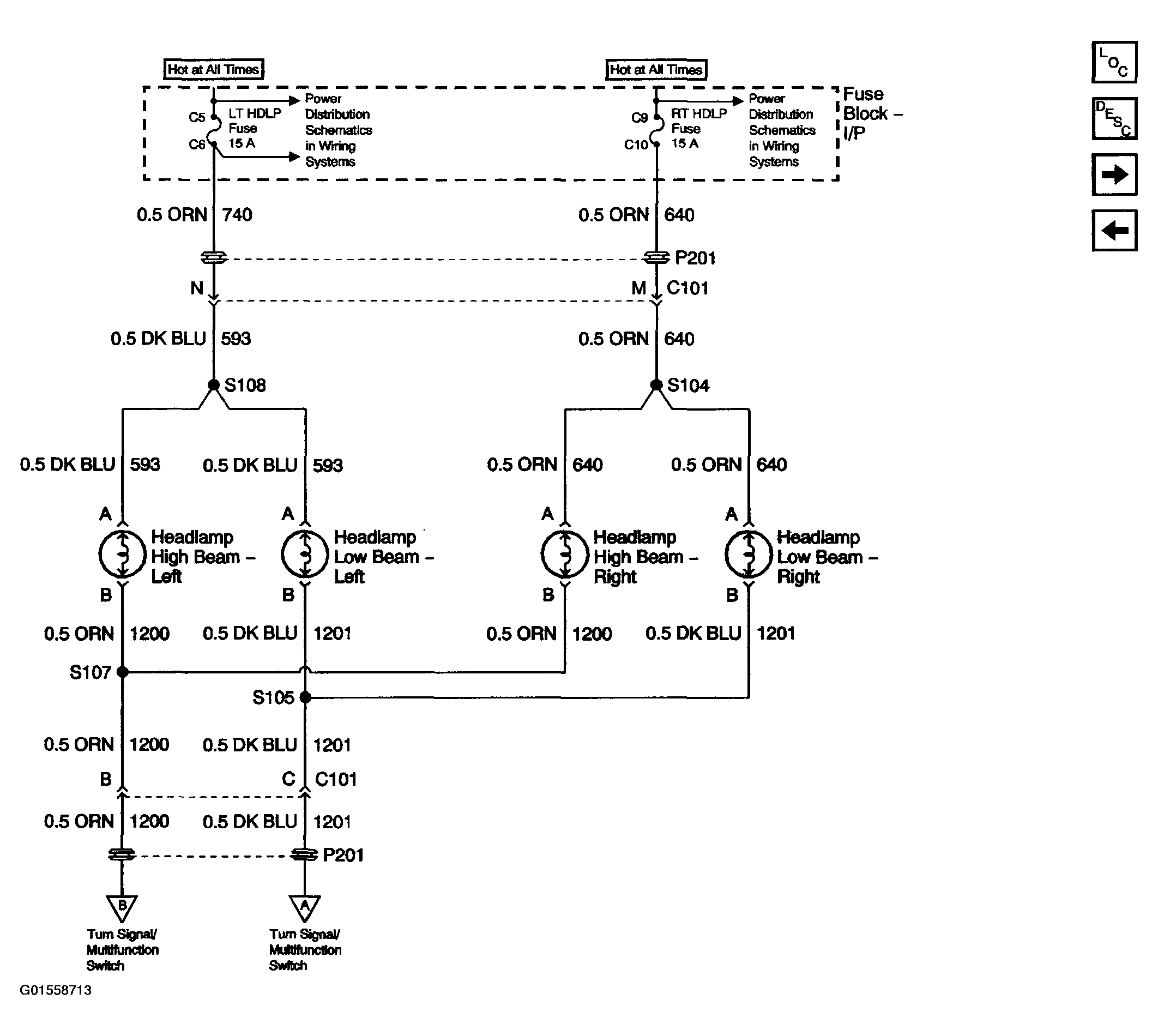

Fig 1: Headlights/Daytime Running Lights Schematic (Controls And Indicators - Domestic)

Courtesy of GENERAL MOTORS CORP.

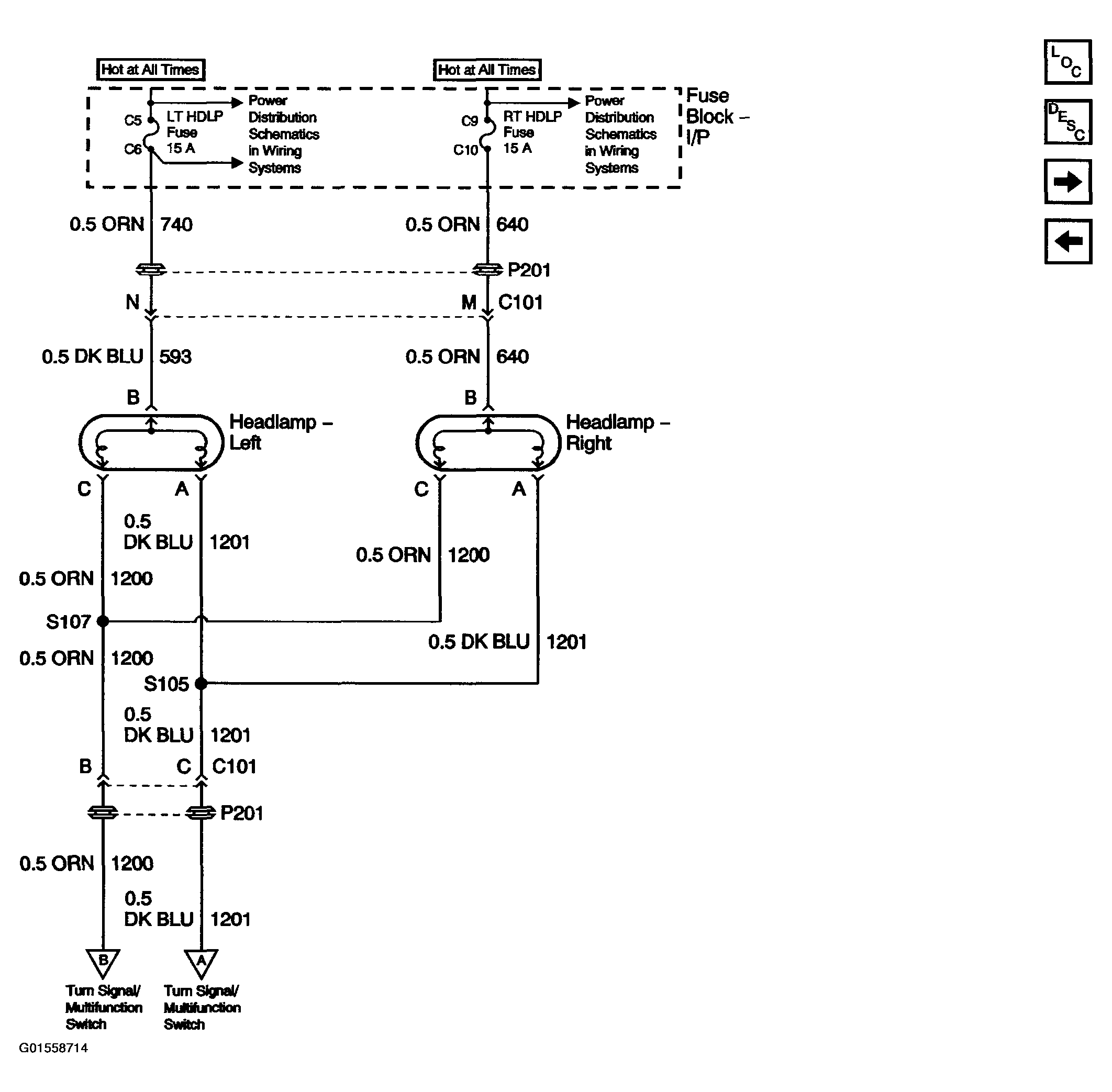

Fig 2: Headlights/Daytime Running Lights Schematic (Headlamps - Pontiac)

Courtesy of GENERAL MOTORS CORP.

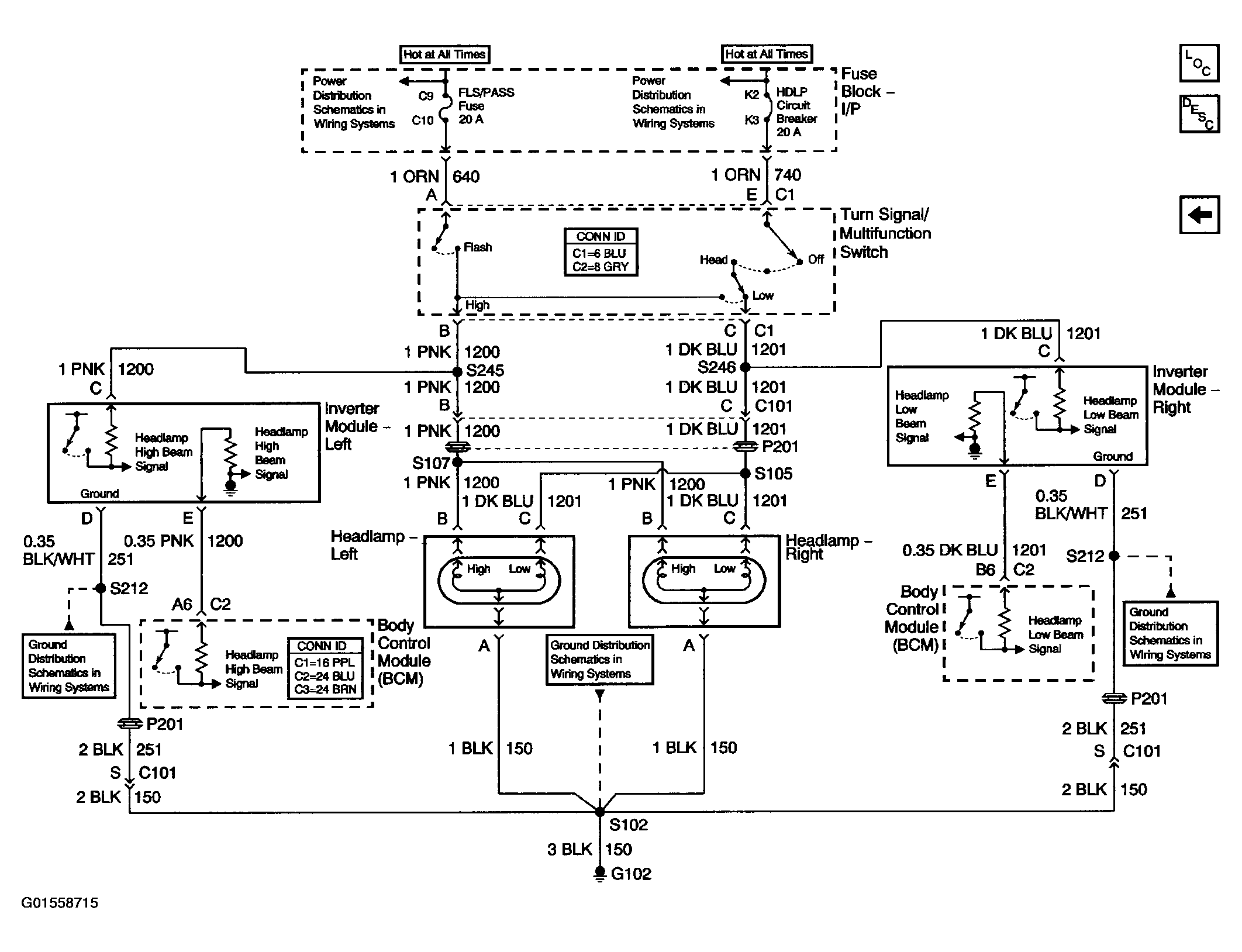

Fig 3: Headlights/Daytime Running Lights Schematic (Headlamps - Chevrolet Domestic)

Courtesy of GENERAL MOTORS CORP.

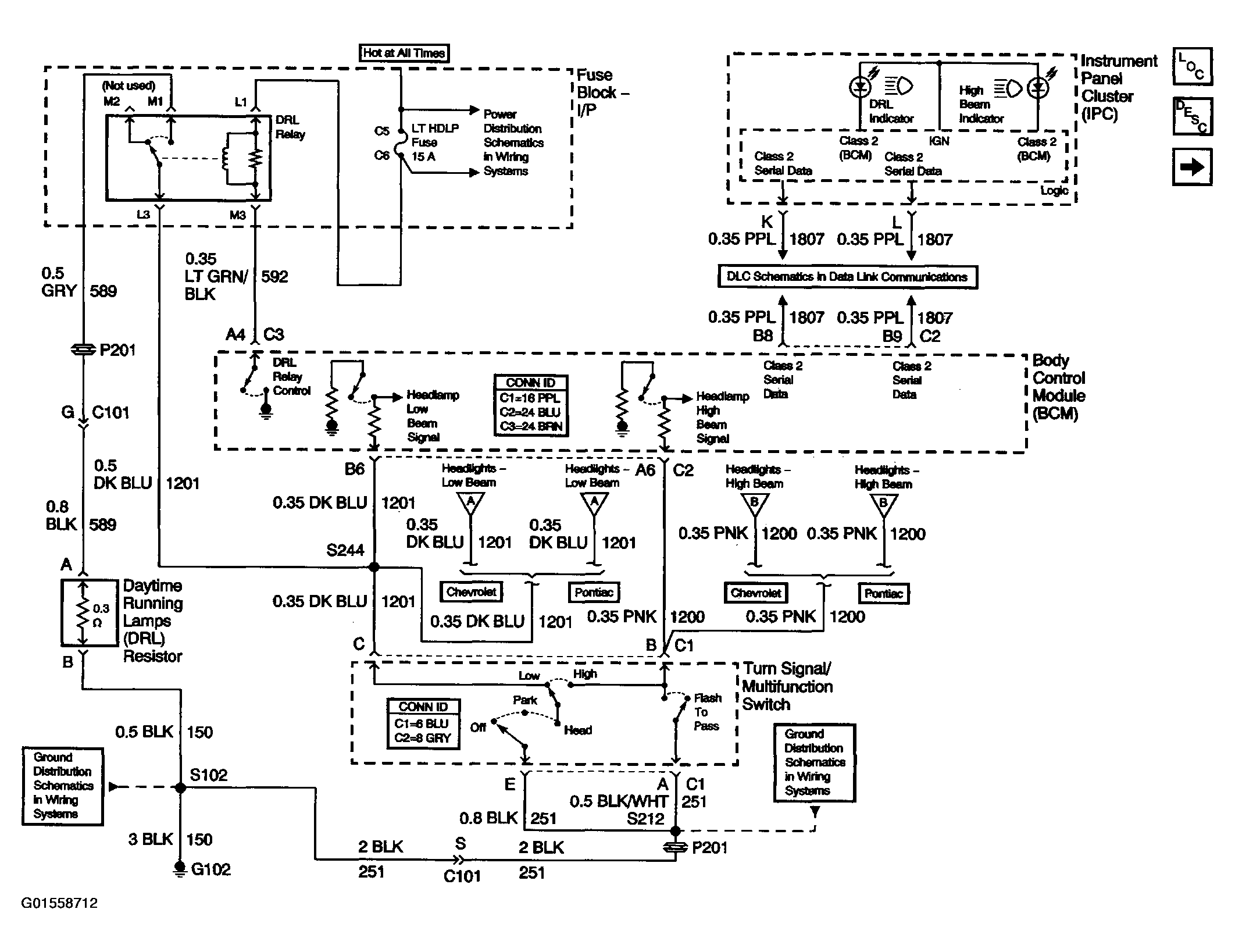

Fig 4: Headlights/Daytime Running Lights Schematic (Export Headlamps And Indicators)

Courtesy of GENERAL MOTORS CORP.
