Fog Lights Schematics

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

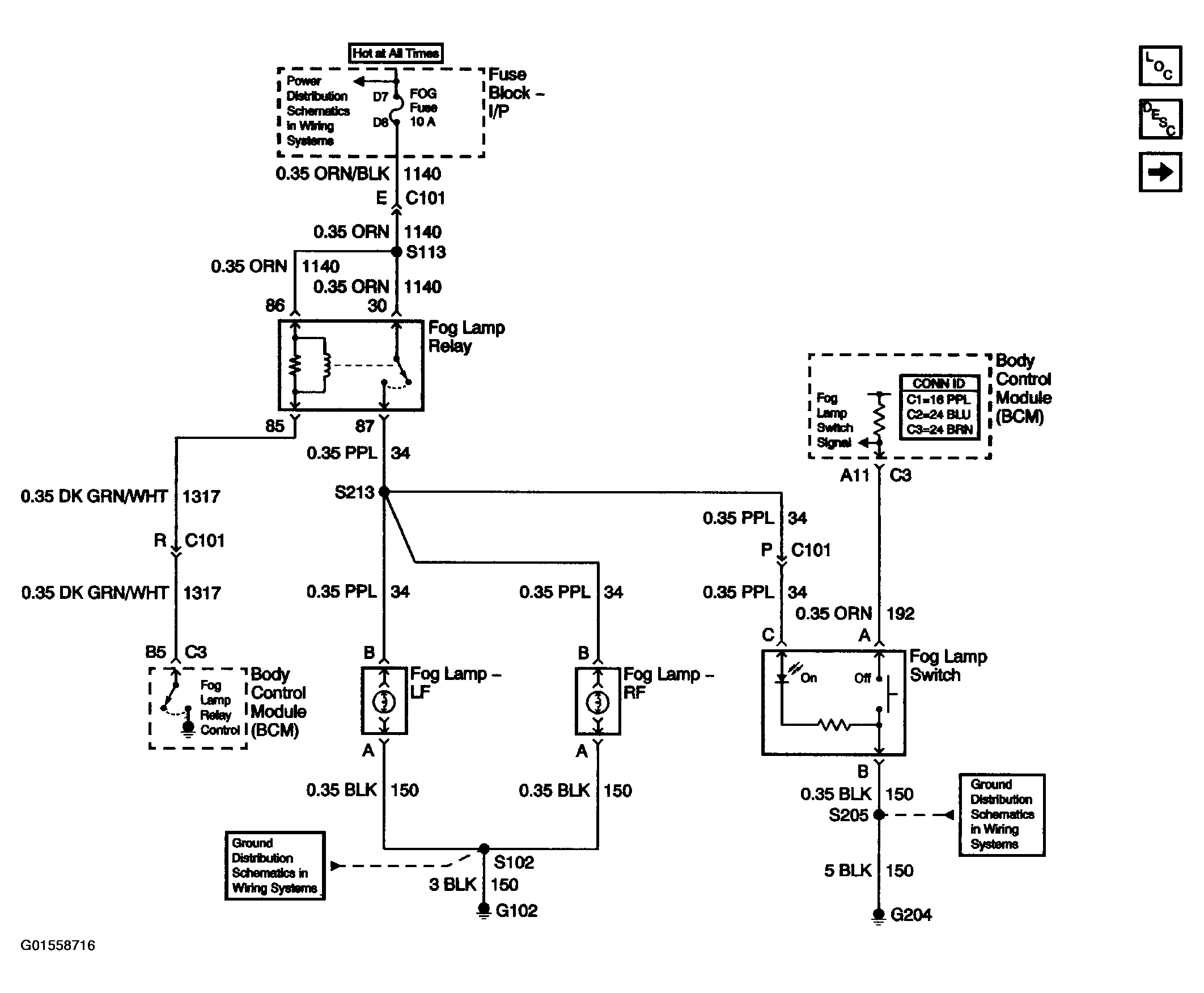

Fig 1: Fog Lights Schematic (Front Fog Lamps (Pontiac))

Courtesy of GENERAL MOTORS CORP.

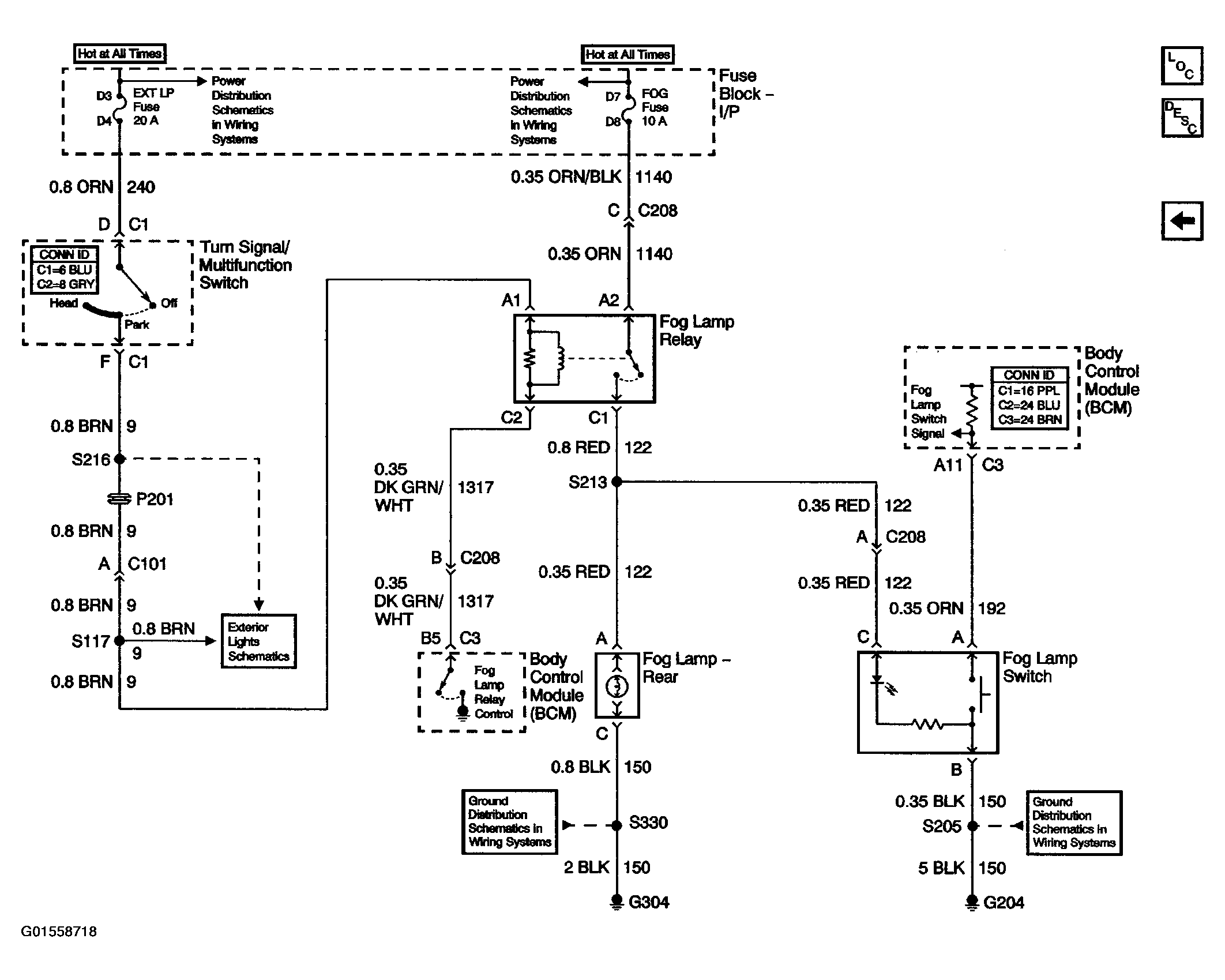

Fig 2: Fog Lights Schematic (Front Fog Lamps (Chevrolet))

Courtesy of GENERAL MOTORS CORP.

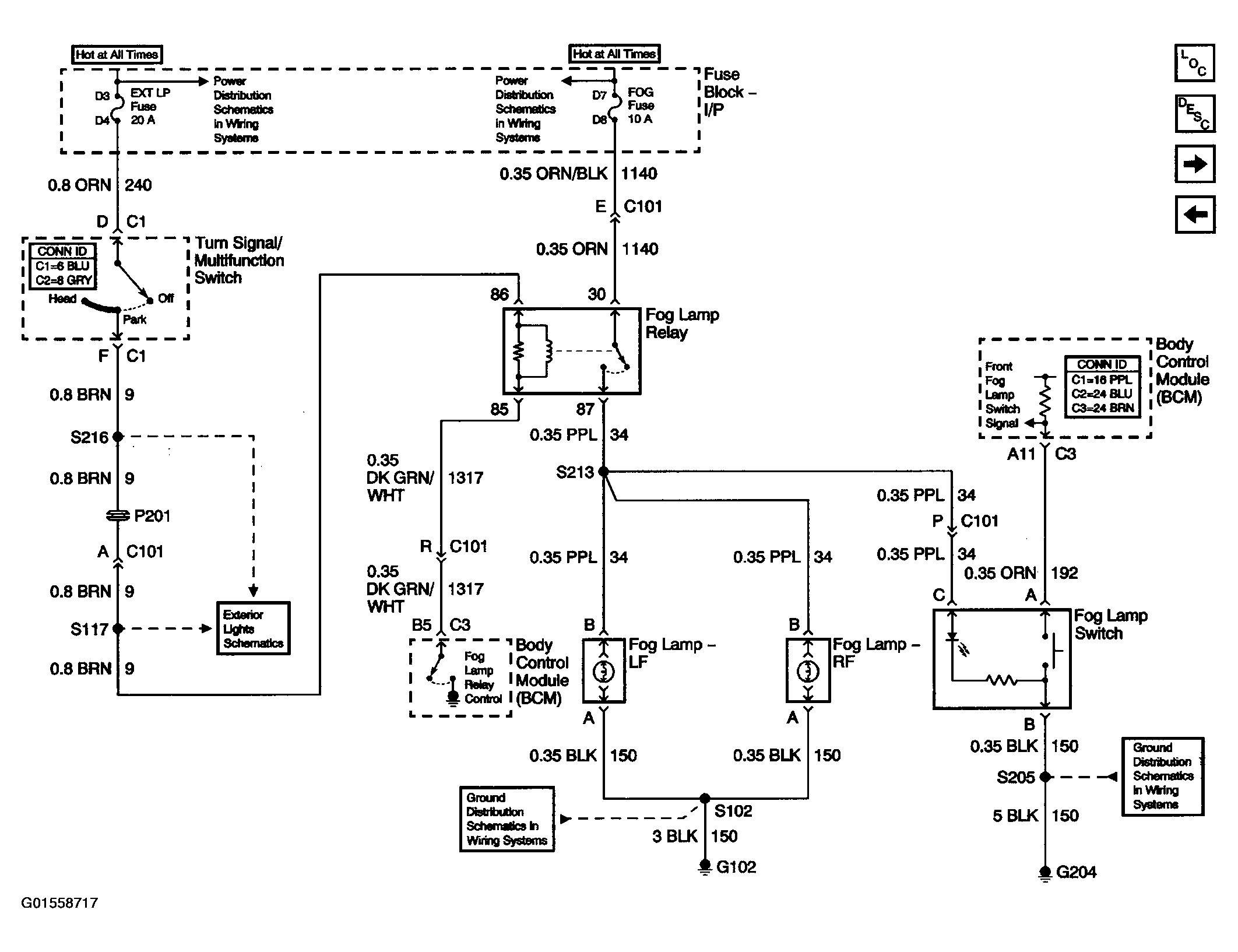

Fig 3: Fog Lights Schematic (Fog Lamps - Export)

Courtesy of GENERAL MOTORS CORP.
