Exterior Lights Schematics

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

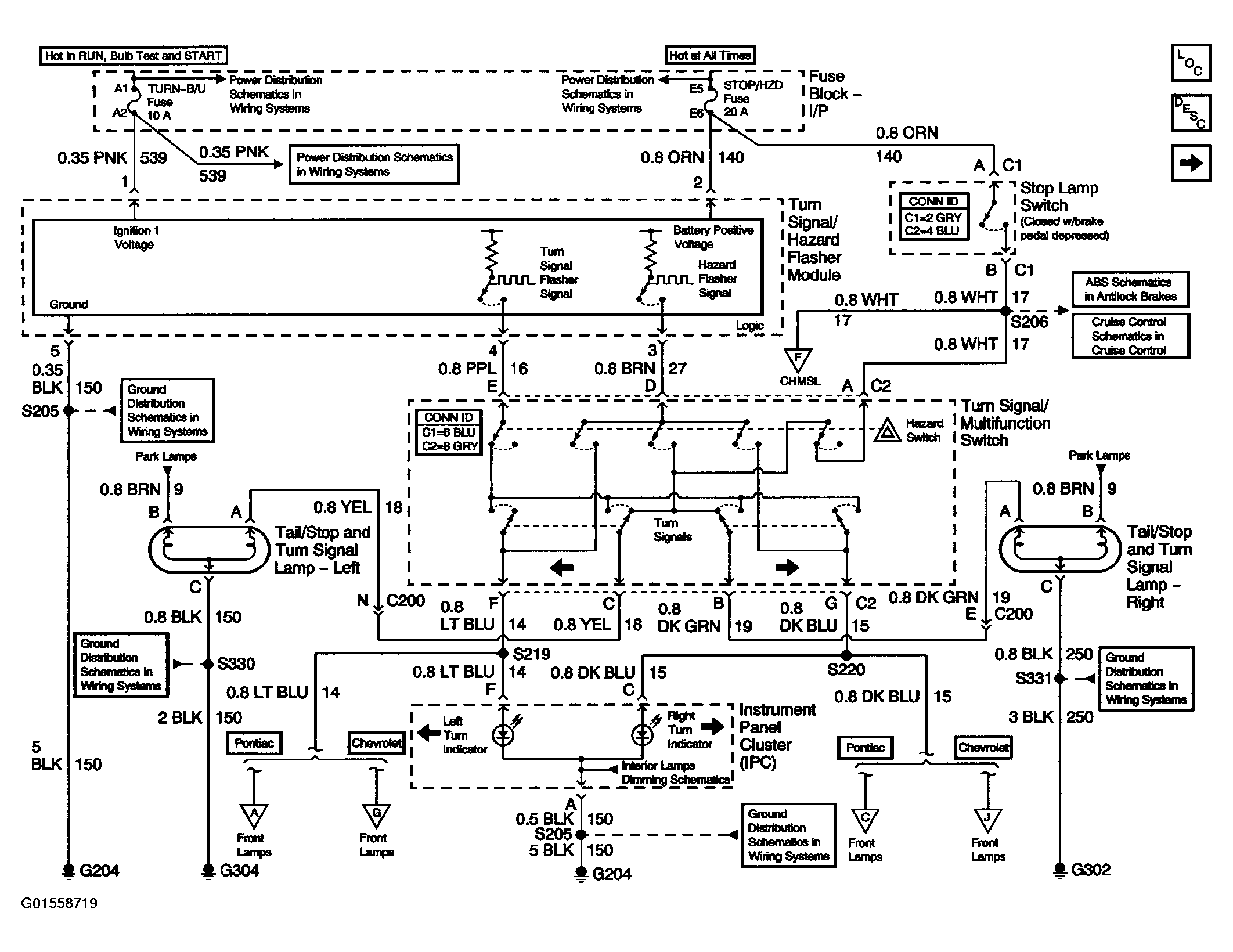

Fig 1: Exterior Lights Schematic (Lamp Controls, Rear Turn Lamps And Indicators)

Courtesy of GENERAL MOTORS CORP.

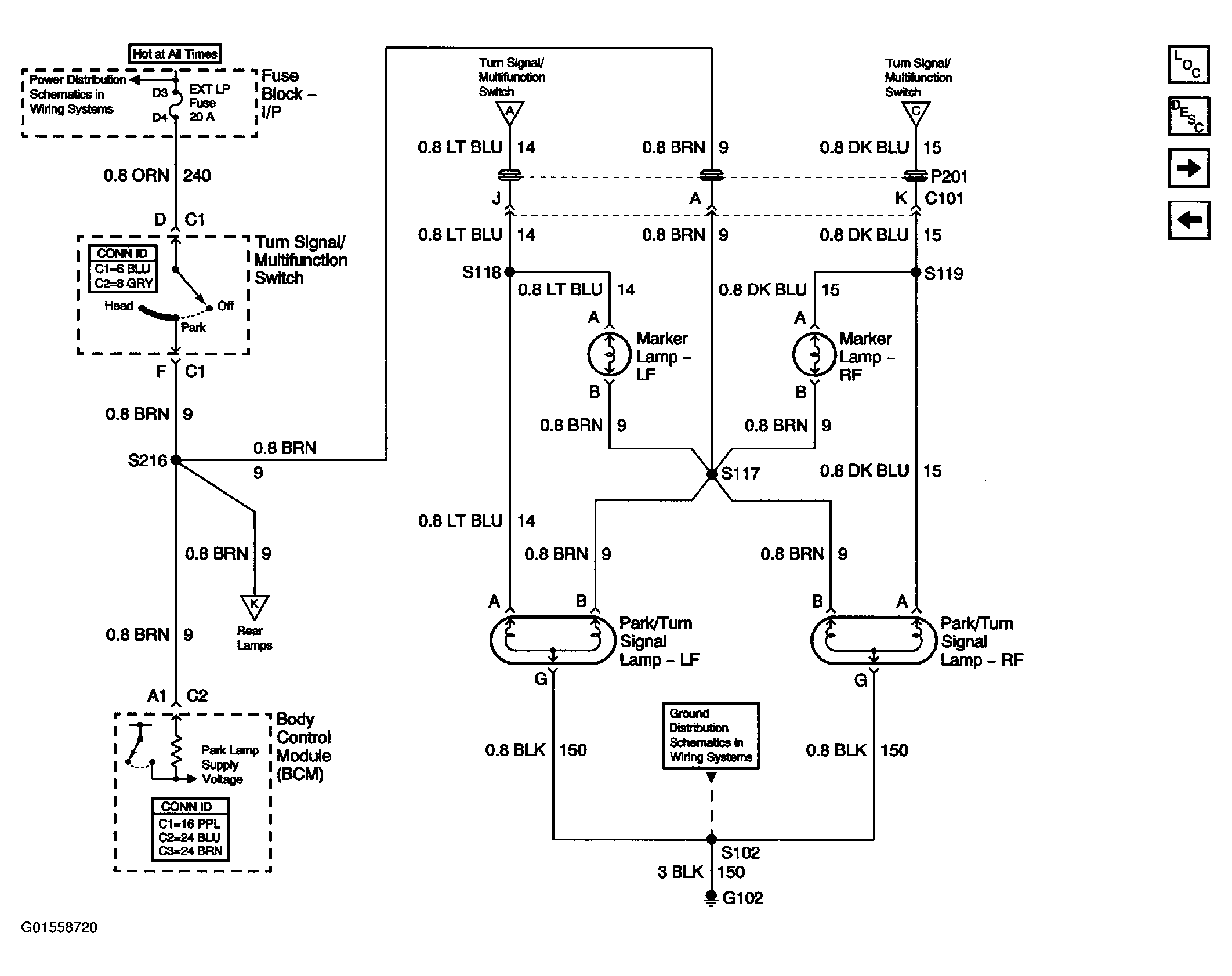

Fig 2: Exterior Lights Schematic (Park Lamps And Marker Lamps Controls - Front (Pontiac))

Courtesy of GENERAL MOTORS CORP.

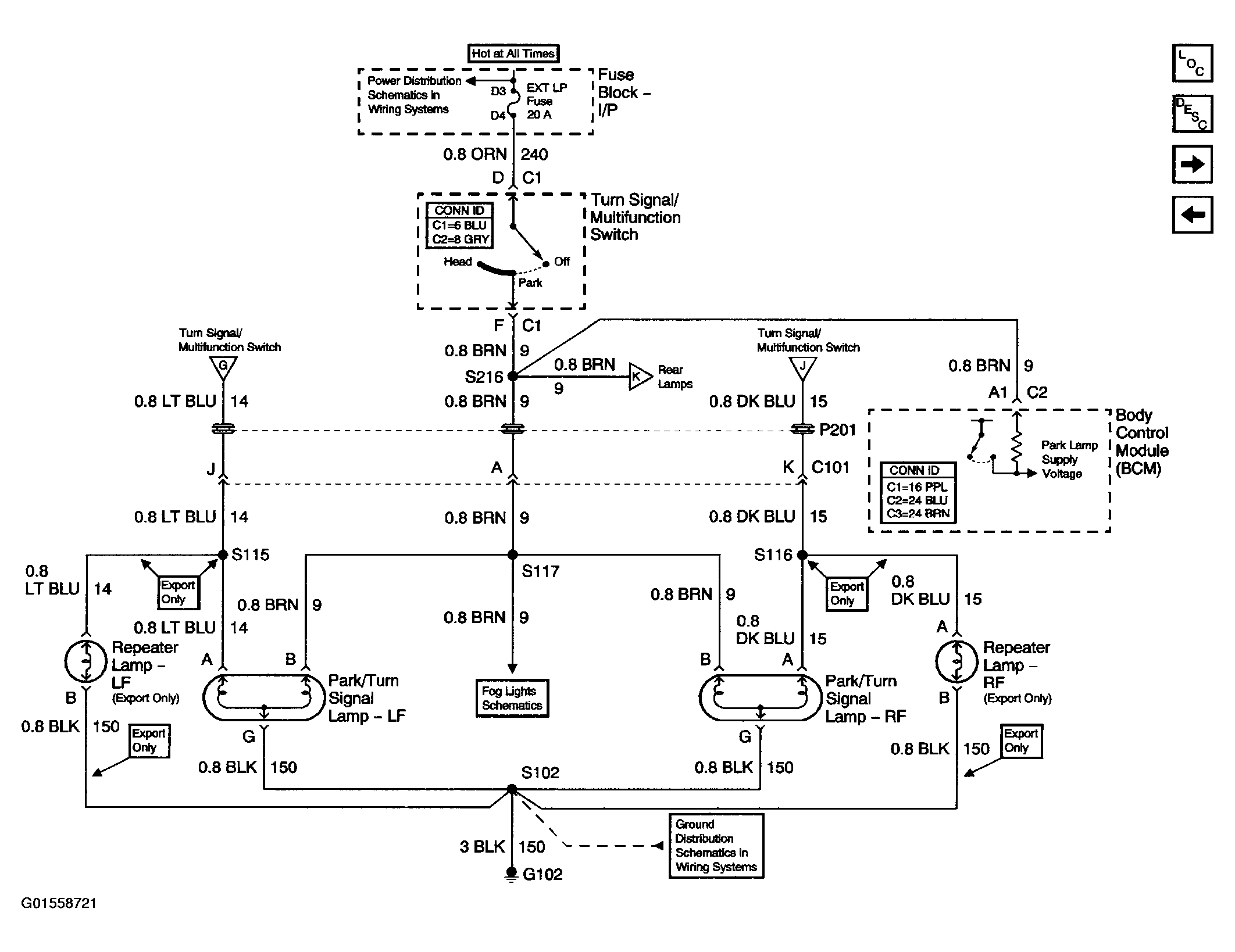

Fig 3: Exterior Lights Schematic - Park Lamps Controls And Repeater Lamps (Export) - (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

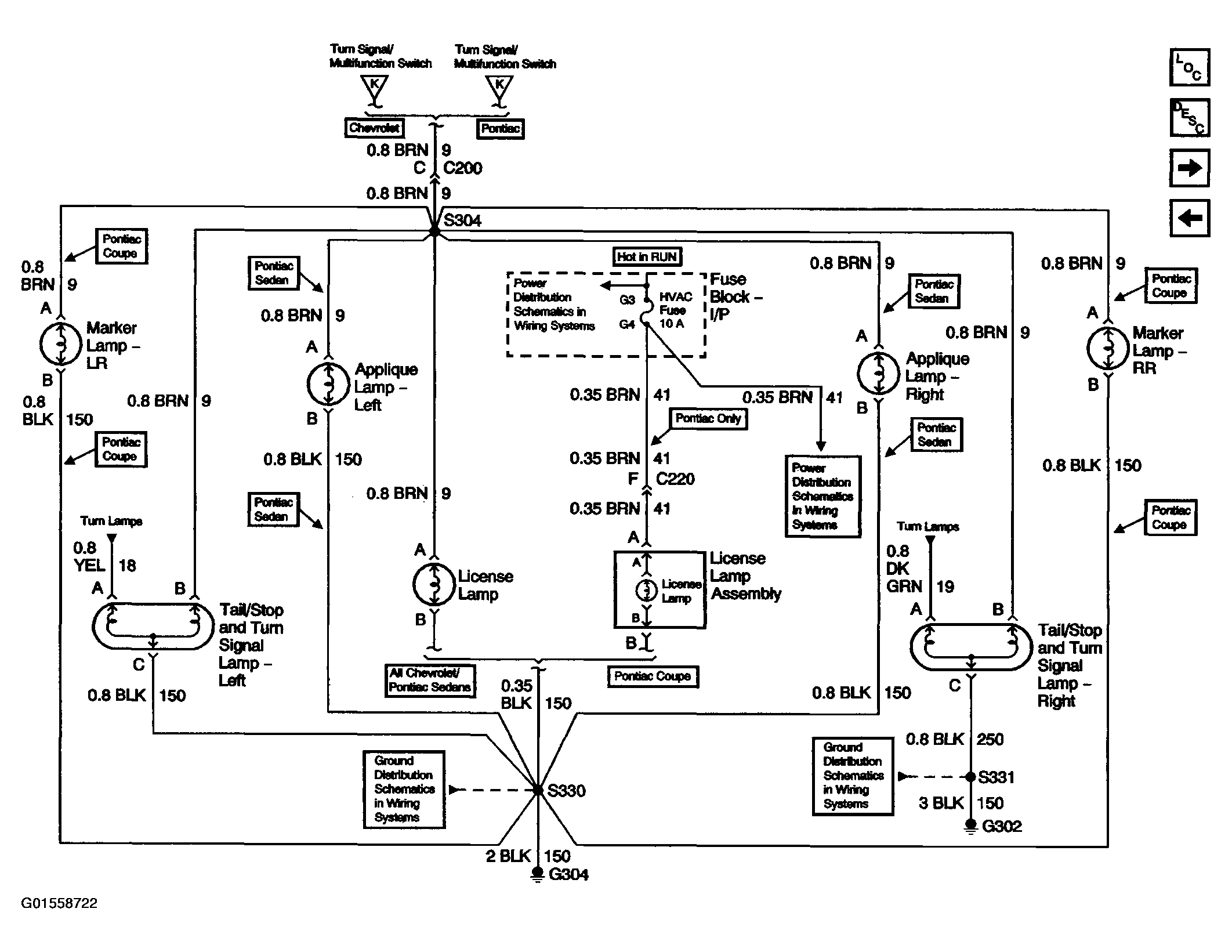

Fig 4: Exterior Lights Schematic (Rear Lamps)

Courtesy of GENERAL MOTORS CORP.

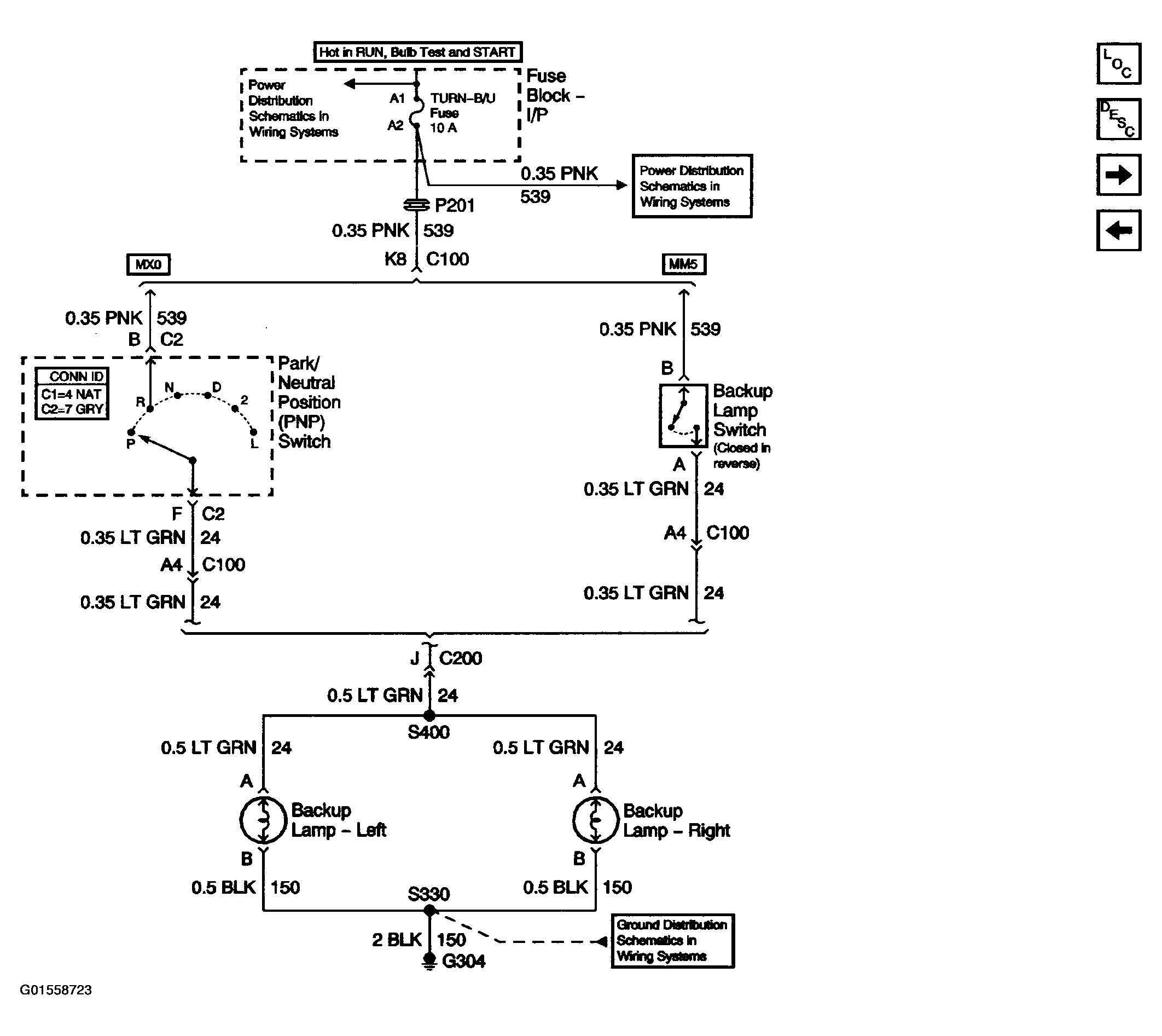

Fig 5: Exterior Lights Schematic (Backup Lamps)

Courtesy of GENERAL MOTORS CORP.

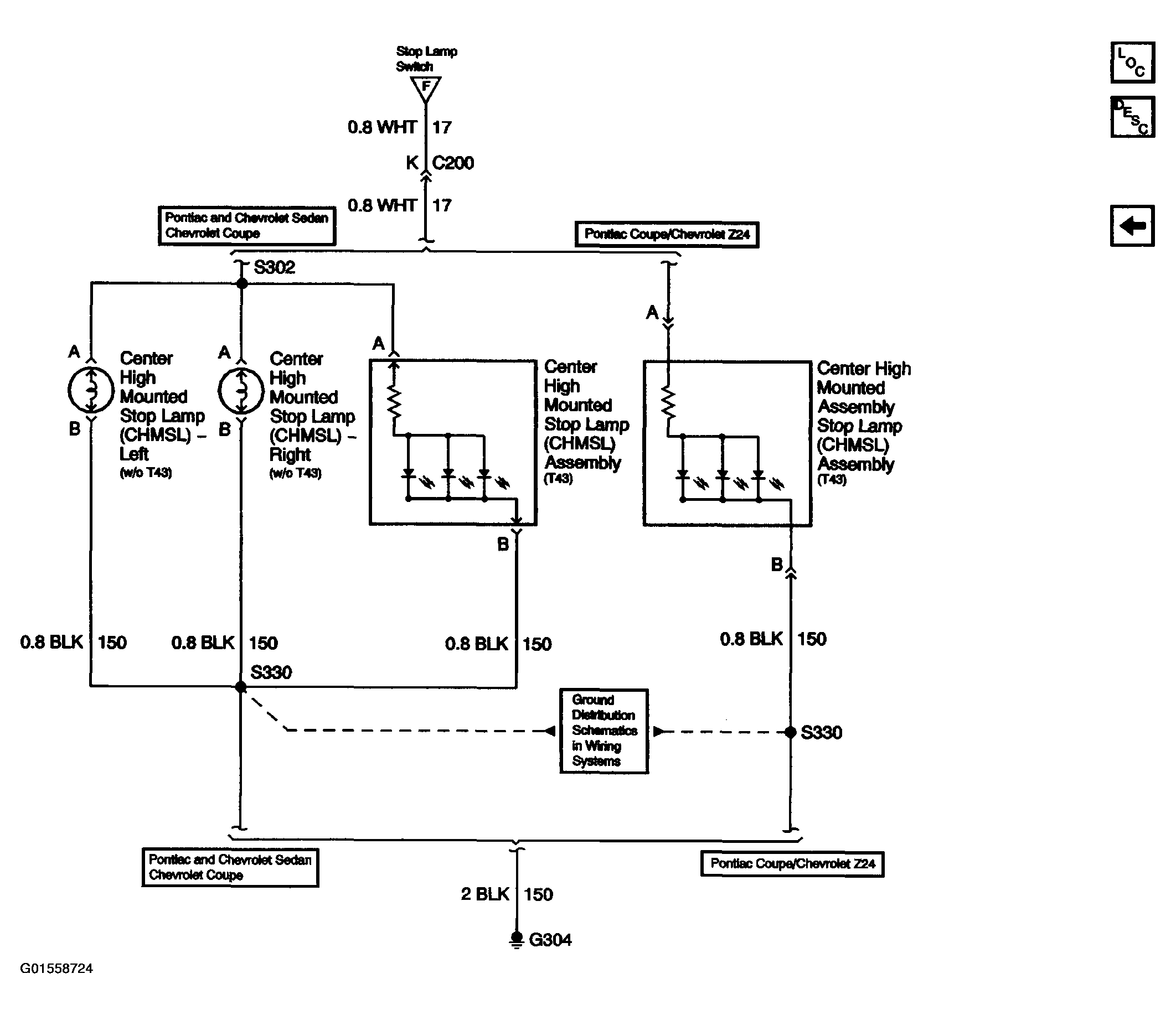

Fig 6: Exterior Lights Schematic (Center High Mounted Stop Lamps)

Courtesy of GENERAL MOTORS CORP.
