Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull back the rear compartment trim to access the tail lamp. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  2. Disconnect the electrical connector from the tail lamp (3).
  3. Remove the bulb/socket from the tail lamp
  4. Remove the bulb from the socket, if required.
  5. Remove the nuts (2) from the tail lamp.
  6. Remove the tail lamp from the quarter panel.

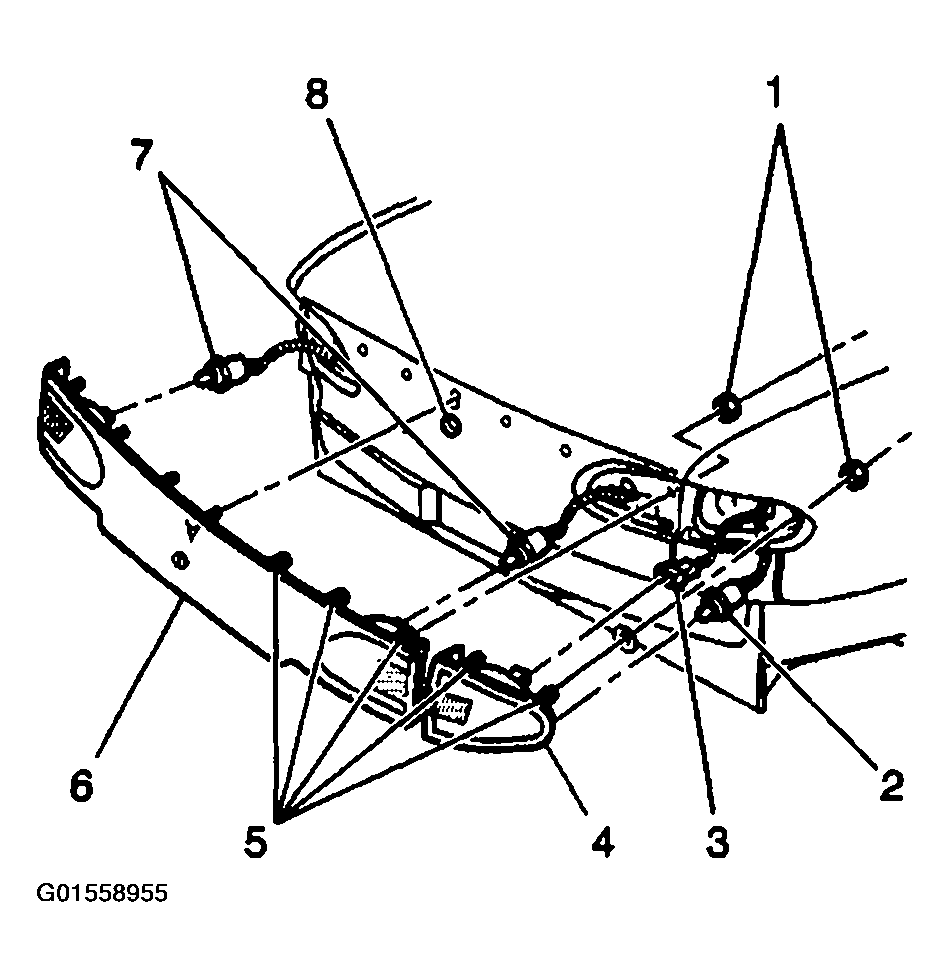

    Fig 1: Removing Tail Lamp From Quarter Panel (Pontiac)
    G01558955Courtesy of GENERAL MOTORS CORP.
