Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to ELECTRICAL WIRING ROUTING NOTICE in Cautions and Notices.
  1. Position the tail lamp to the quarter panel.
  2. Align the tail lamp to the rear compartment lid applique.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the nuts (2) to the tail lamp.

    Tighten

    Tighten the tail lamps nuts to 6 N.m (53 lb.in).

  4. Install the bulb to the socket, if required.
  5. Install the bulb/socket (3) to the tail lamp.
  6. Connect the electrical connector to the tail lamp (3).

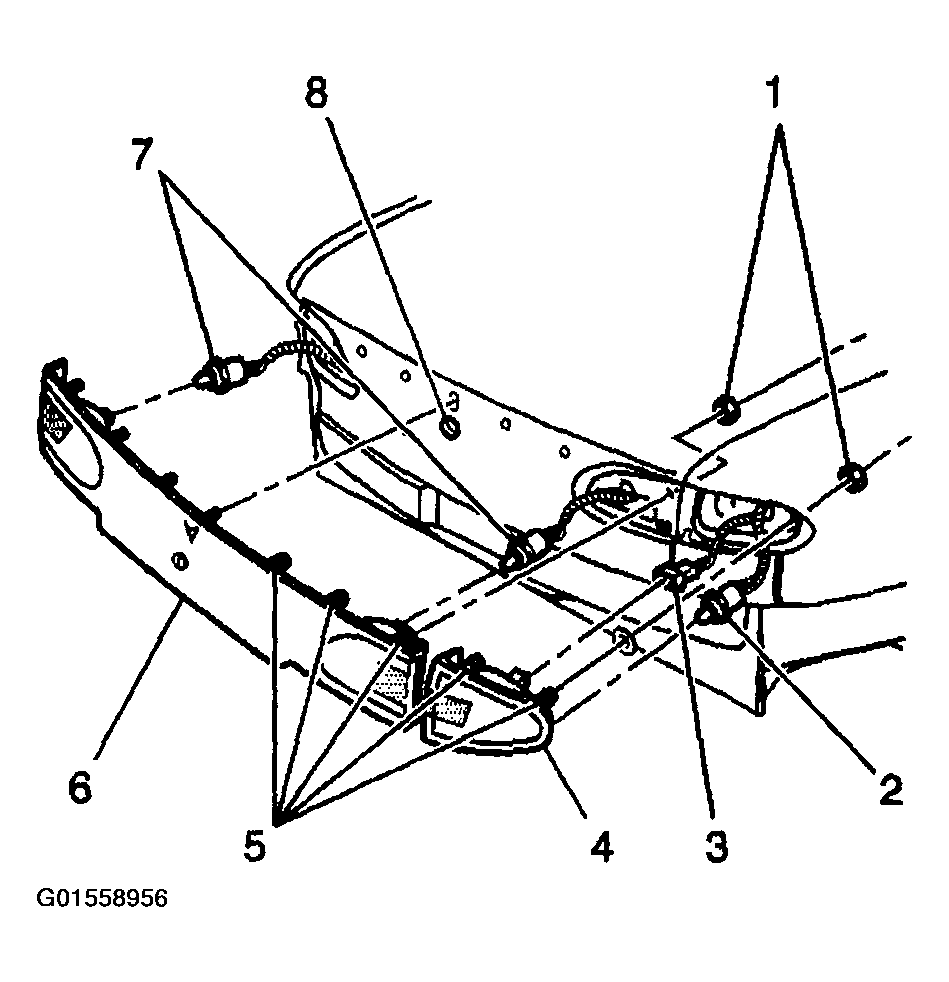

    Fig 1: Installing Tail Lamp To Quarter Panel (Pontiac)
    G01558956Courtesy of GENERAL MOTORS CORP.
