Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to ELECTRICAL WIRING ROUTING NOTICE in Cautions and Notices.
  1. Install the tail lamp to the quarter panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the tail lamp nuts (2) to the tail lamp.

    Tighten

    Tighten the tail lamp nuts (2) to 5 N.m (44 lb.in).

  3. Connect the electrical connector (1) to the tail lamp.
  4. Install the bulb to the socket, if required.
  5. Install the bulb /socket to the tail lamp.
  6. Pull back the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.

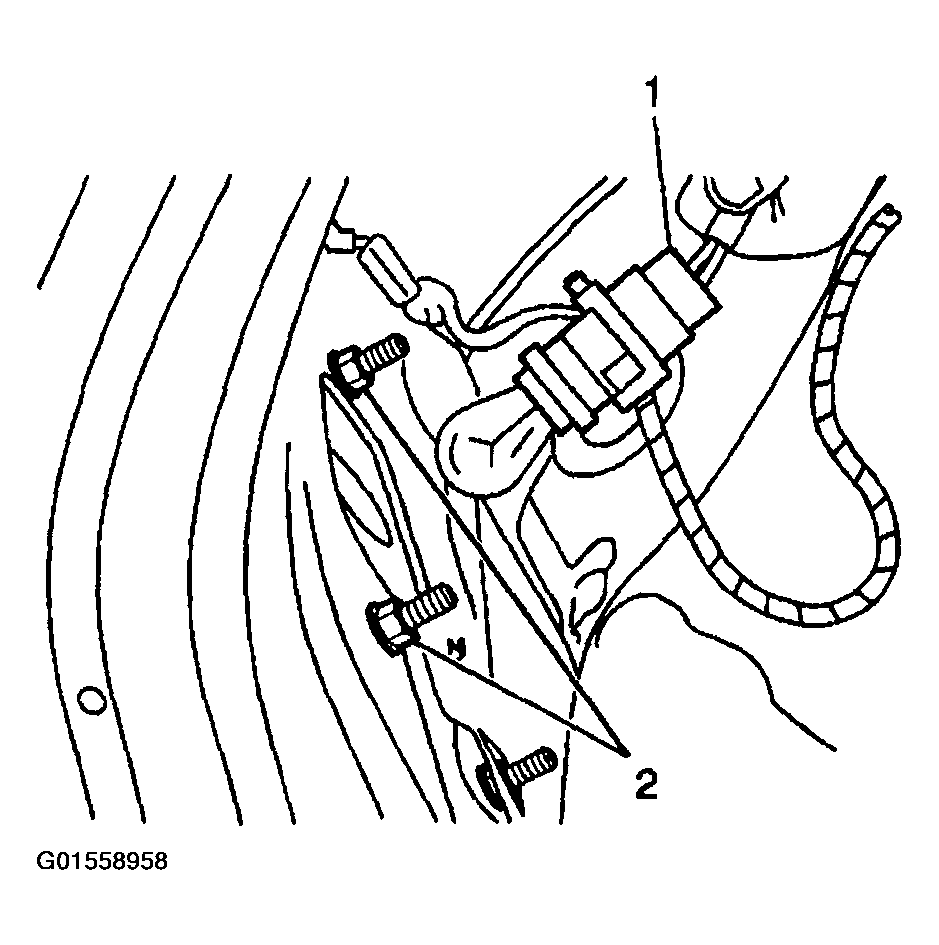

    Fig 1: Installing Tail Lamp To Quarter Panel (Chevrolet)
    G01558958Courtesy of GENERAL MOTORS CORP.
