Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower I/P trim insulator screw.
  2. Remove the lower I/P trim insulator from the brake pedal bracket.
  3. Disconnect the electrical connections (3, 4) from the stop lamp switch (5).
  4. Rotate the stop lamp switch (5) counterclockwise until the travel stop has been reached.
  5. Pull the stop lamp switch (5) rearward.
  6. Remove the stop lamp switch (5) from the brake pedal bracket (1).

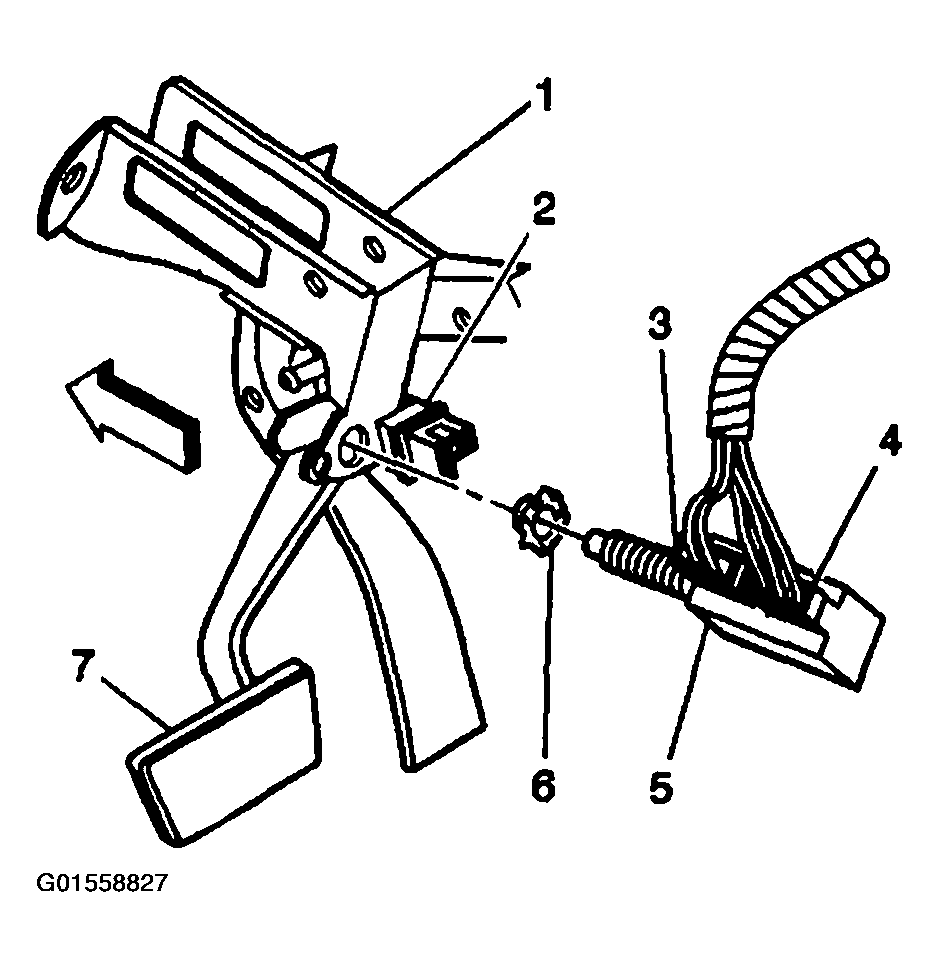

    Fig 1: Removing Stop Lamp Switch From Brake Pedal Bracket
    G01558827Courtesy of GENERAL MOTORS CORP.
