Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a small flat-bladed tool, carefully pry at the rear edge, furthest from the windshield, of the lamp lens (2) to release the retaining tabs, then remove the lens from the rearview mirror.
  2. Carefully remove the bulb (1) from the socket.

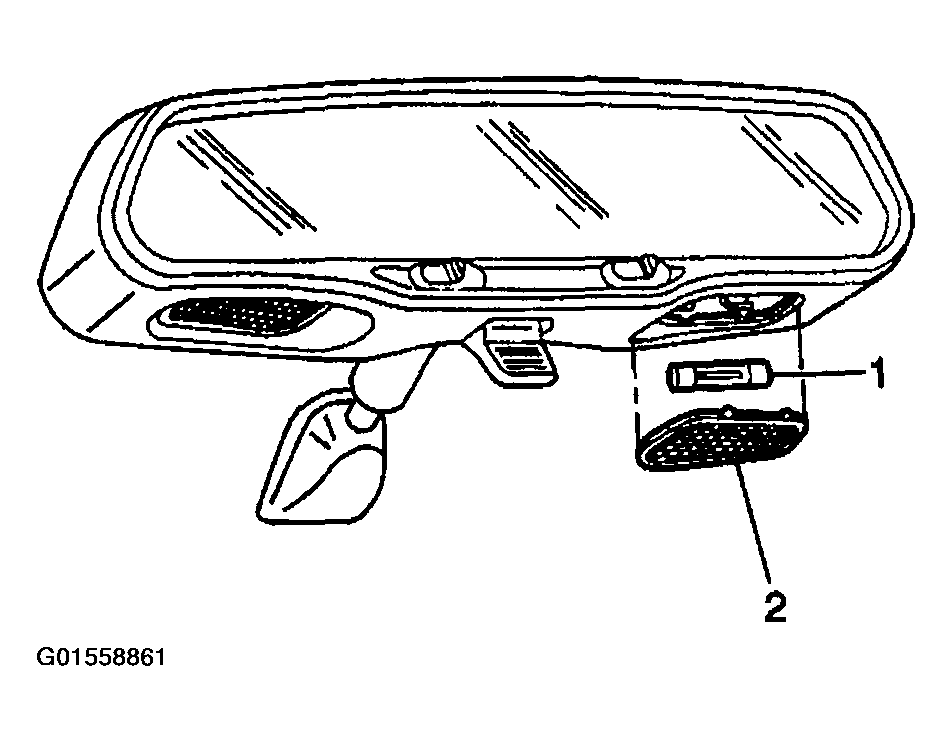

    Fig 1: Removing Bulb From Socket
    G01558861Courtesy of GENERAL MOTORS CORP.
