Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

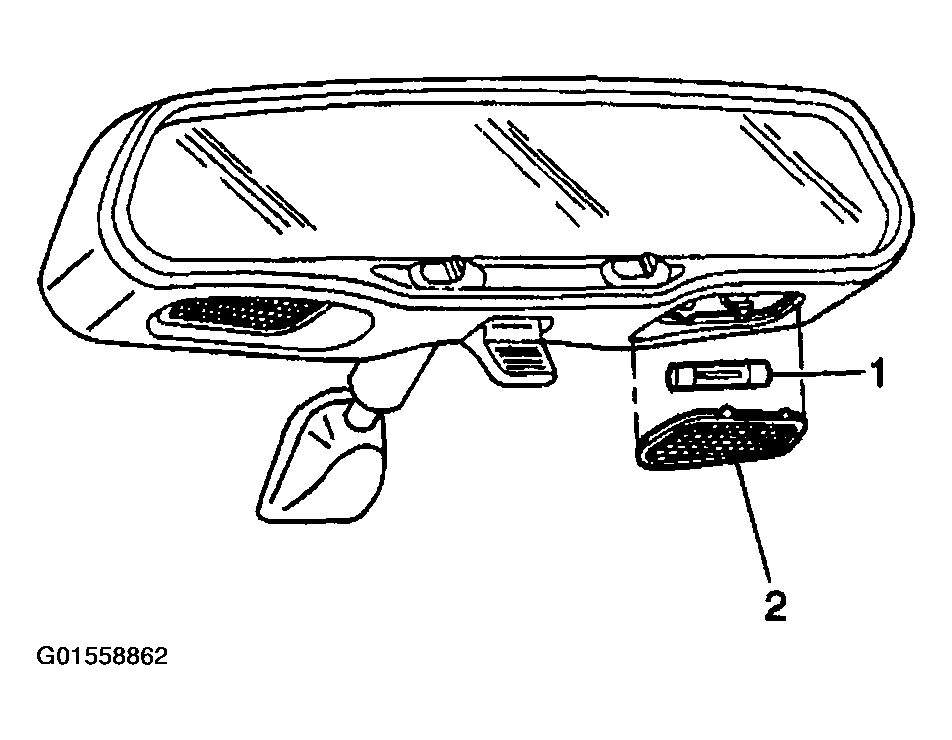

- Install the bulb (1) to the socket.
- Align and insert the forward edge, nearest the windshield, of the lamp lens (2) into place, then press the rear edge into place to secure the lens.
Courtesy of GENERAL MOTORS CORP.
