Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood close out filler panel. Refer to HOOD CLOSE OUT FILLER REPLACEMENT in Body Front End.
  3. Remove the park/turn signal bulb/socket by depressing the lock tab and rotating the bulb/socket counterclockwise.

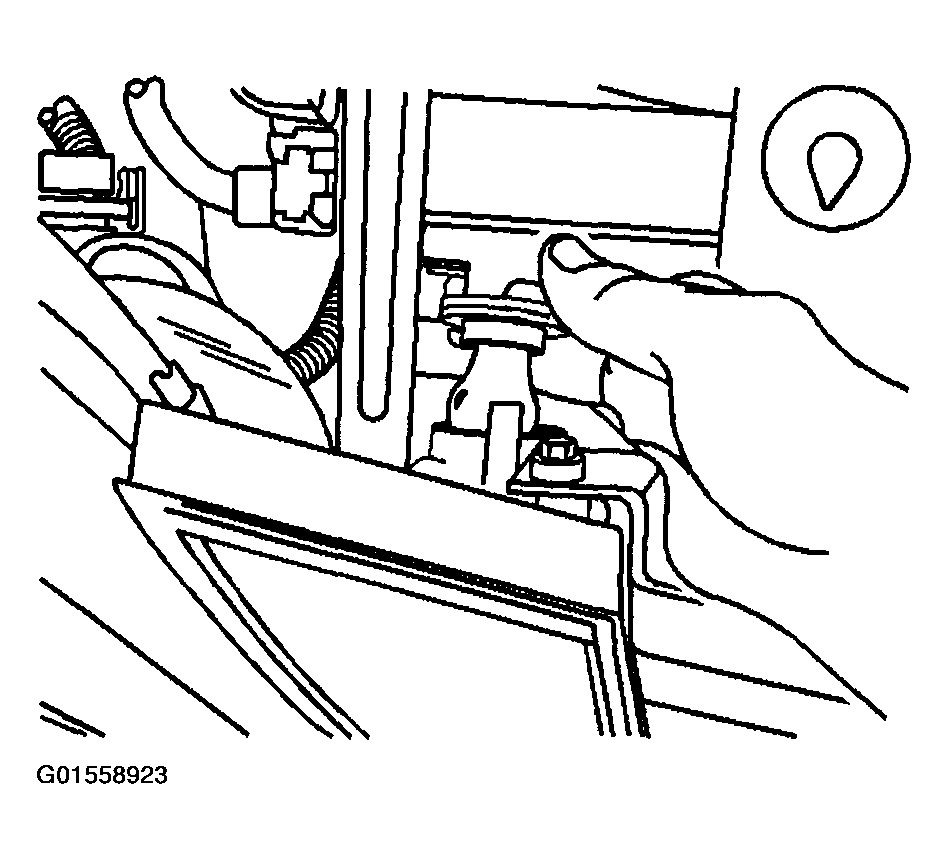

    Fig 1: Removing Park/Turn Signal Bulb/Socket (Pontiac)
    G01558923Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt that retains the park/turn signal lamp bracket to the upper tie bar.
  5. Remove the screw that retains the grille assembly to the fascia.

    Remove the park/turn lamp housing with the grille assembly from the vehicle.

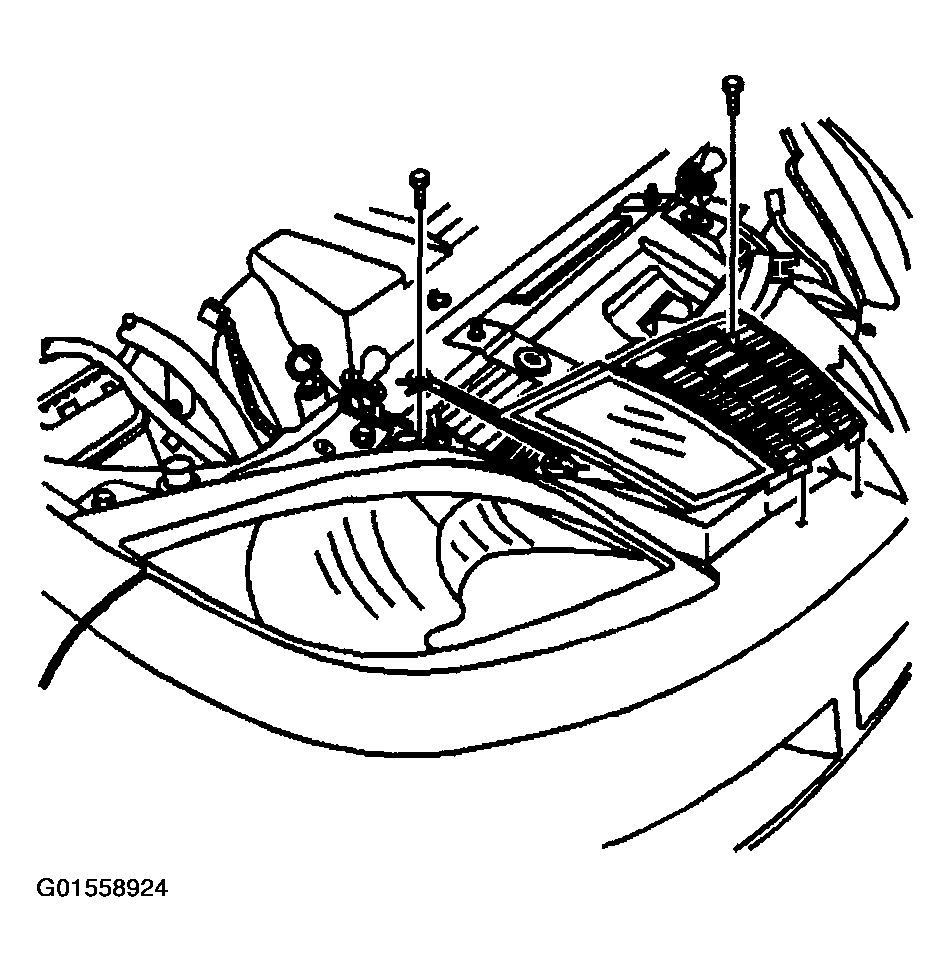

    Fig 2: Removing Park/Turn Lamp Housing With Grille Assembly From Vehicle (Pontiac)
    G01558924Courtesy of GENERAL MOTORS CORP.
  6. Remove the push retainer that secures the grille to the park/turn lamp assembly.

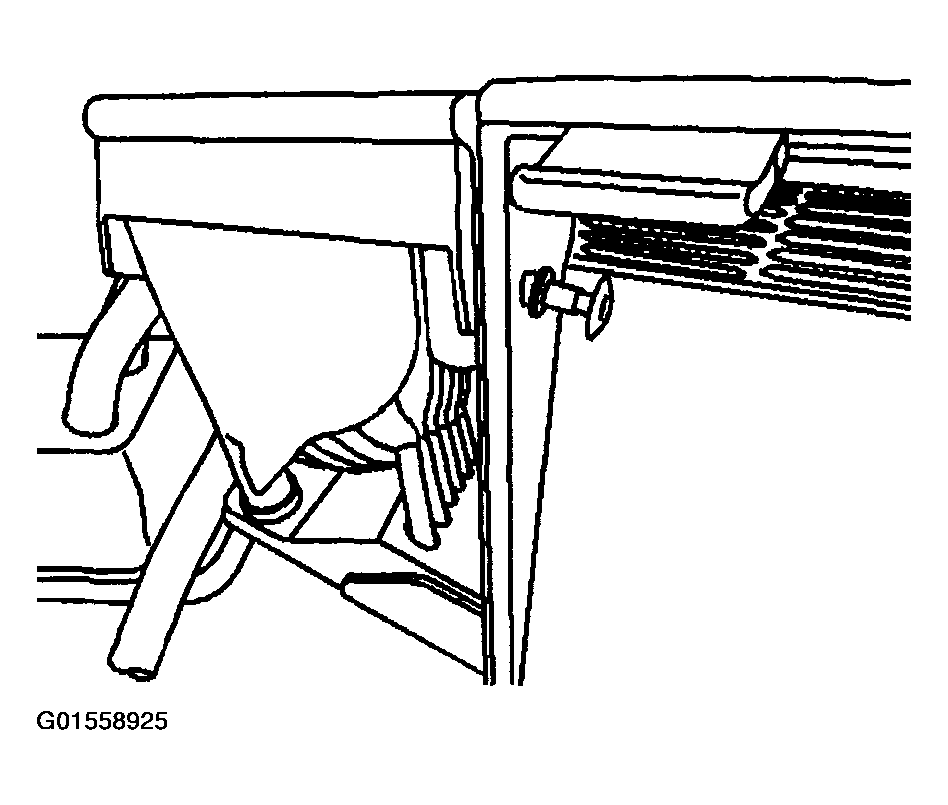

    Fig 3: Identifying Grille Push Retainer (Pontiac)
    G01558925Courtesy of GENERAL MOTORS CORP.
  7. Remove the bolts/screws that retain the grille assembly to the park/turn lamp assembly.
  8. Remove the bolts that retain the park/turn signal lamp assembly from the lamp.

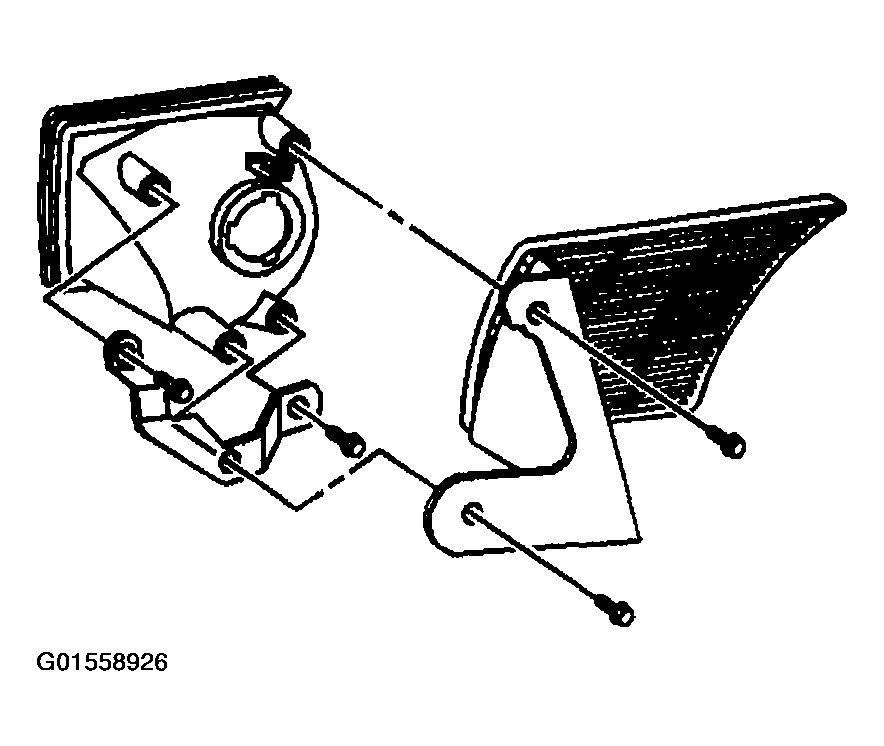

    Fig 4: Removing Bolts/Screws That Retain Grille Assembly To Park/Turn Lamp Assembly (Pontiac)
    G01558926Courtesy of GENERAL MOTORS CORP.
