Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the bolts/screws to retain the park/turn signal lamp assembly to the park/turn lamp.
Tighten

Tighten the bolts/screws to 2 N.m (18 lb. in)
Install the bolts/screws to retain the grille assembly to the park/turn lamp.
Tighten

Tighten the bolts/screws to 2 N.m (18 lb. in)

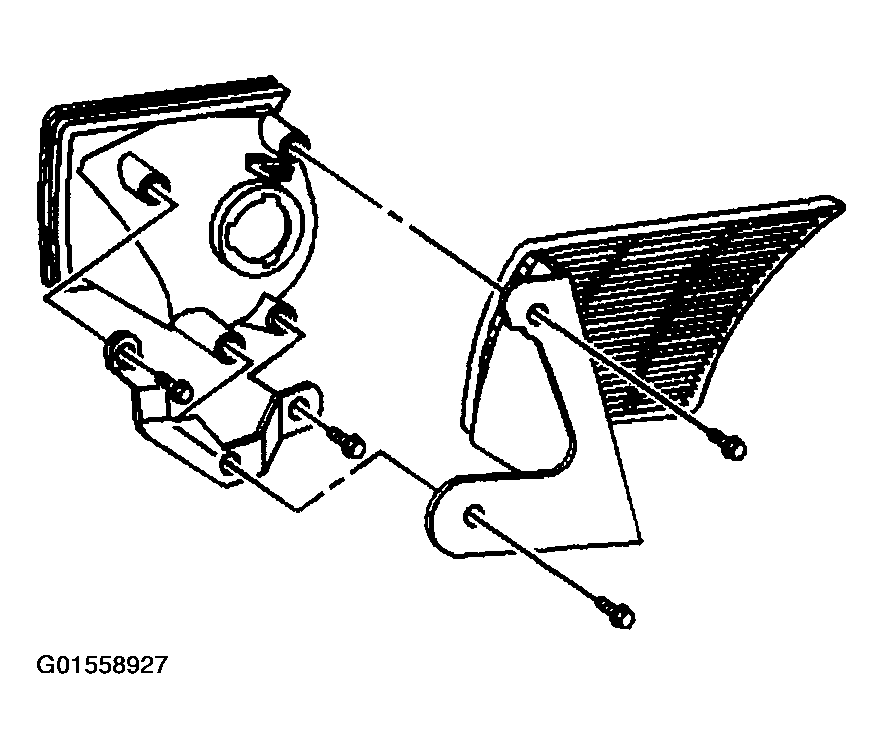

Fig 1: Installing Bolts/Screws To Retain Grille Assembly To Park/Turn Lamp (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Install the push retainer that secures the grille to the park/turn lamp assembly.

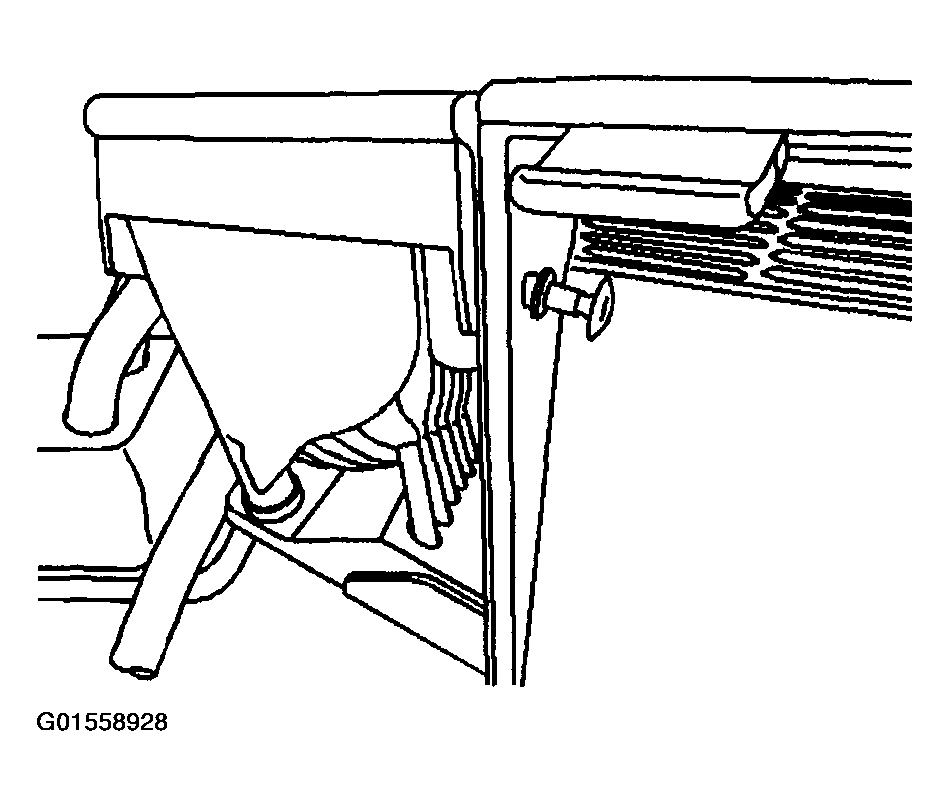

Fig 2: Identifying Grille Push Retainer (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Position the park/turn lamp housing with the grille assembly to the vehicle.
Install the bolt that retains the park/turn signal lamp bracket to the upper tie bar.
Tighten

Tighten the bolt to 10 N.m (89 lb.in)

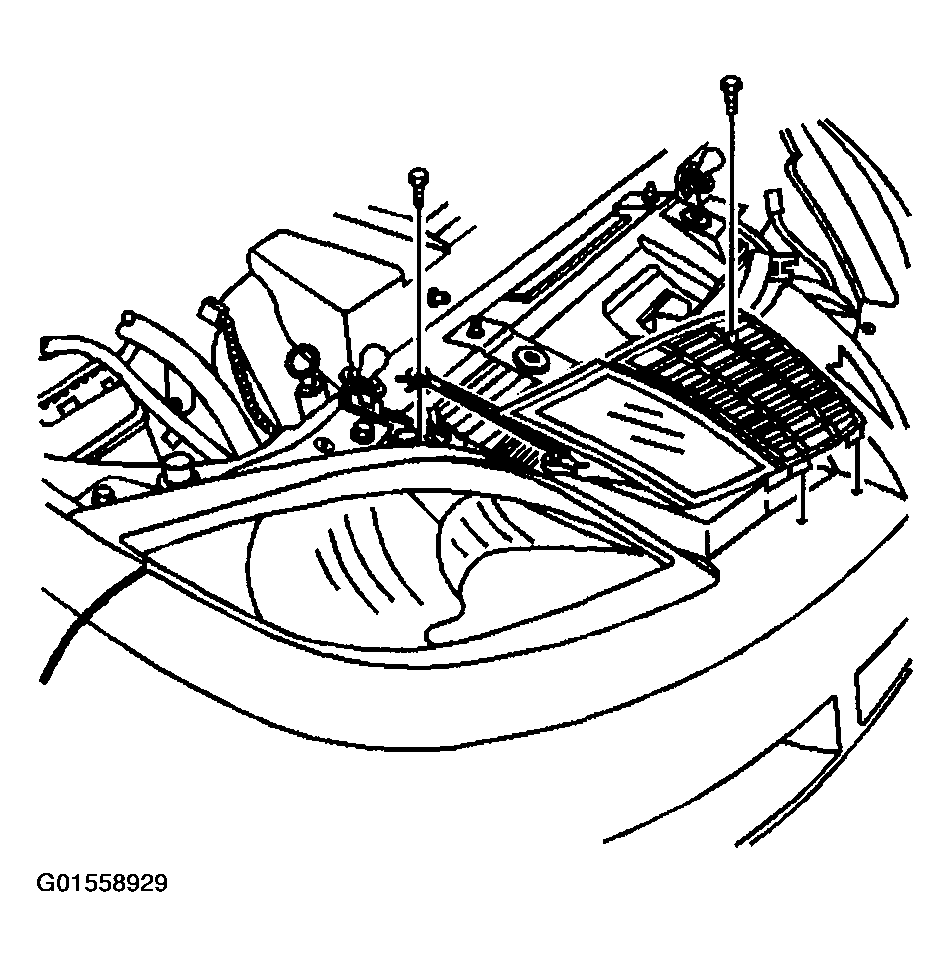

Fig 3: Installing Park/Turn Lamp Housing With Grille Assembly To Vehicle (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Install the screw that retains the grille assembly to the fascia.
Install the park/turn signal bulb/socket by depressing the lock tab and rotating the bulb/socket clockwise.
Install the hood close out filler panel. Refer to HOOD CLOSE OUT FILLER REPLACEMENT in Body Front End.
Close the hood.

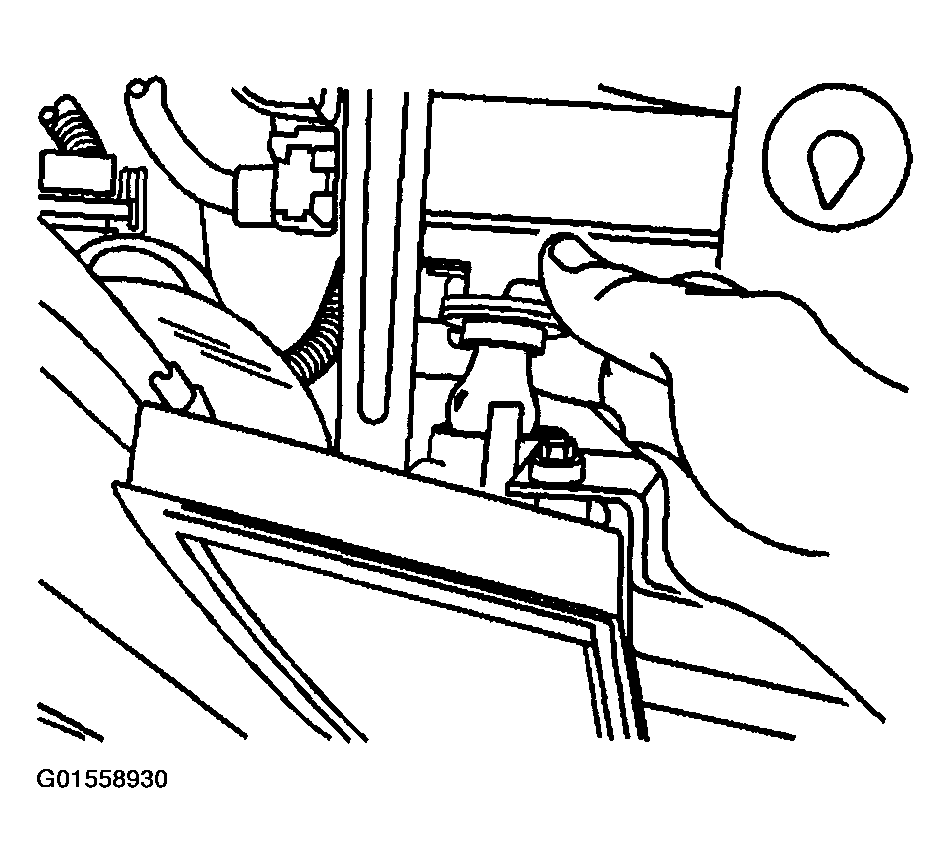

Fig 4: Installing Park/Turn Signal Bulb/Socket (Pontiac)
Courtesy of GENERAL MOTORS CORP.
