Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood close out filler panel. Refer to HOOD CLOSE OUT FILLER REPLACEMENT in Body Front End.
  3. Reach behind the park/turn signal lamp assembly. Remove the park/turn signal bulb/socket by depressing the tab and rotating the bulb/socket counterclockwise.
  4. Remove the bulb from the socket.

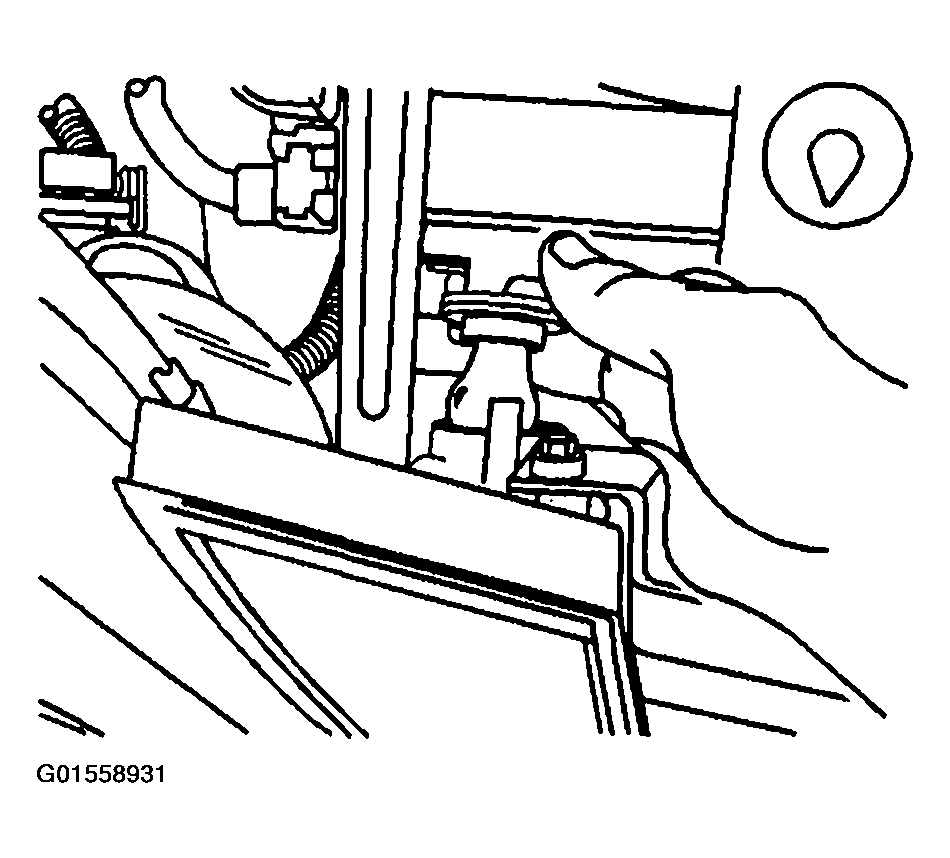

    Fig 1: Removing Bulb/Socket From Lamp (Pontiac)
    G01558931Courtesy of GENERAL MOTORS CORP.
