Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb into the bulb socket.
  2. Install the bulb/socket into the lamp by rotating the bulb/socket clockwise until the tab locks.
  3. Install the hood close out filler panel. Refer to HOOD CLOSE OUT FILLER REPLACEMENT in Body Front End.
  4. Close the hood.

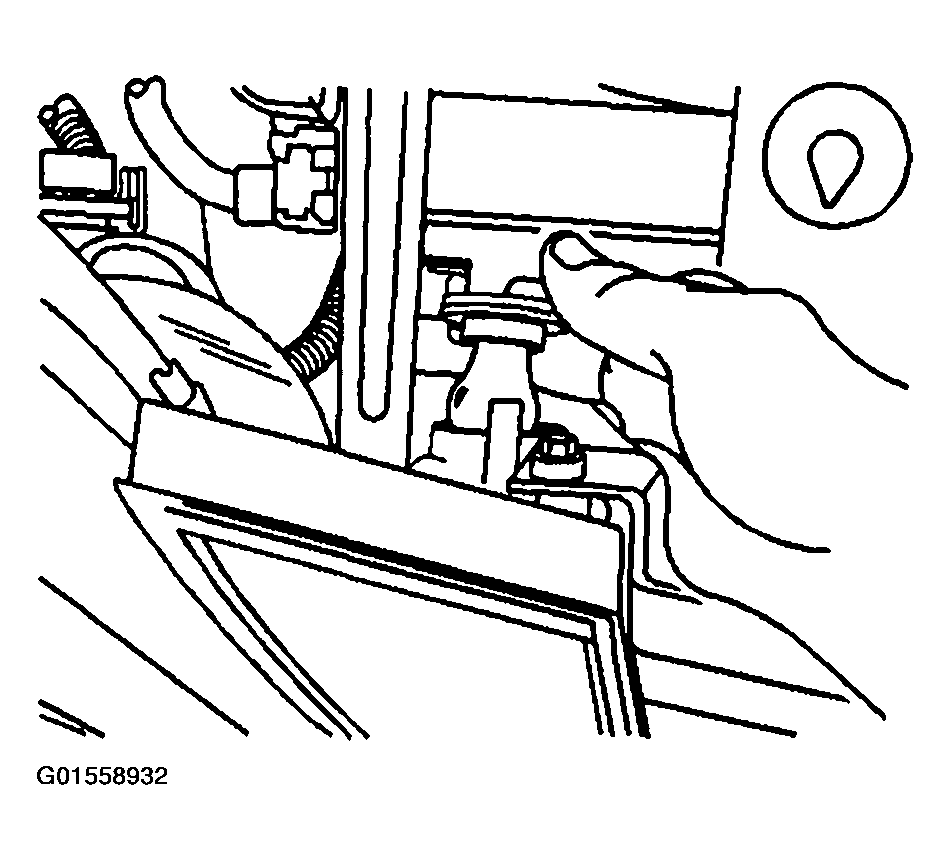

    Fig 1: Installing Bulb/Socket Into Lamp (Pontiac)
    G01558932Courtesy of GENERAL MOTORS CORP.
