Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment lid applique. Refer to COMPARTMENT LID APPLIQUE REPLACEMENT - REAR (PONTIAC SEDAN/CHEVROLET - ALL) in Body Rear End.
  2. Remove the bulbs/sockets from the rear compartment lid applique by turning counterclockwise.
  3. Remove the bulbs from the sockets.

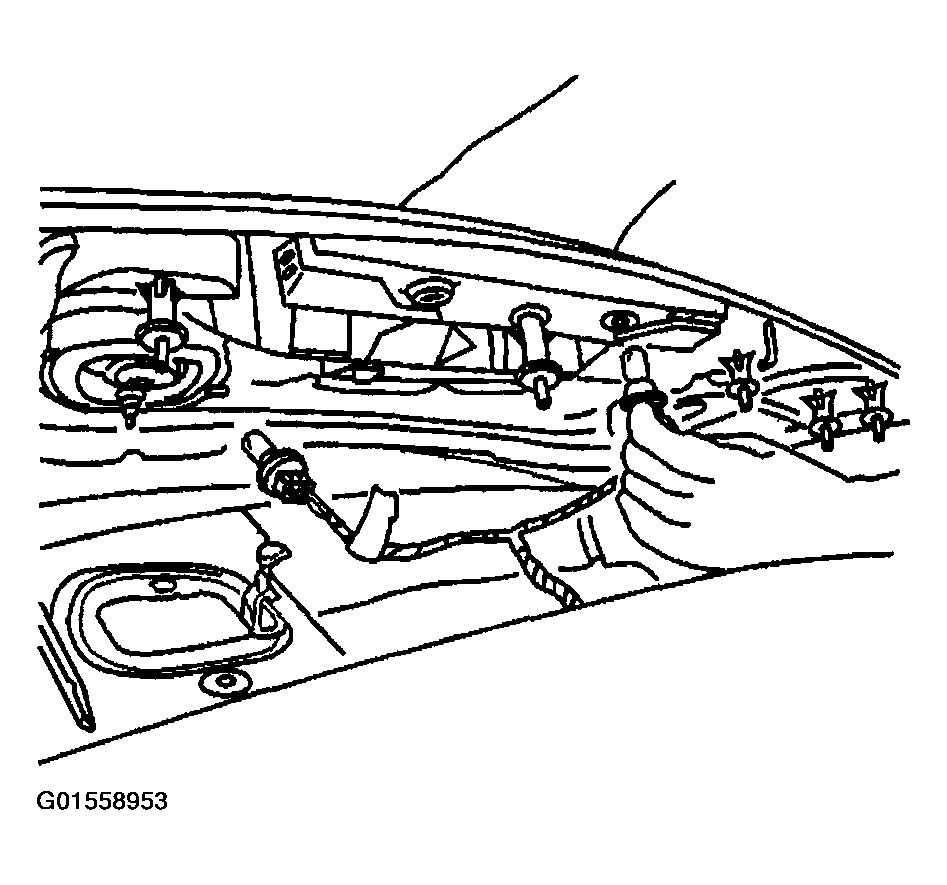

    Fig 1: Removing Bulbs/Sockets From Rear Compartment Lid Applique (Sunfire GT)
    G01558953Courtesy of GENERAL MOTORS CORP.
