Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulbs to the sockets.
  2. Install the sockets to the rear compartment lid applique by turning sockets clockwise
  3. Install the rear compartment lid applique. Refer to COMPARTMENT LID APPLIQUE REPLACEMENT - REAR (PONTIAC SEDAN/CHEVROLET - ALL) in Body Rear End.

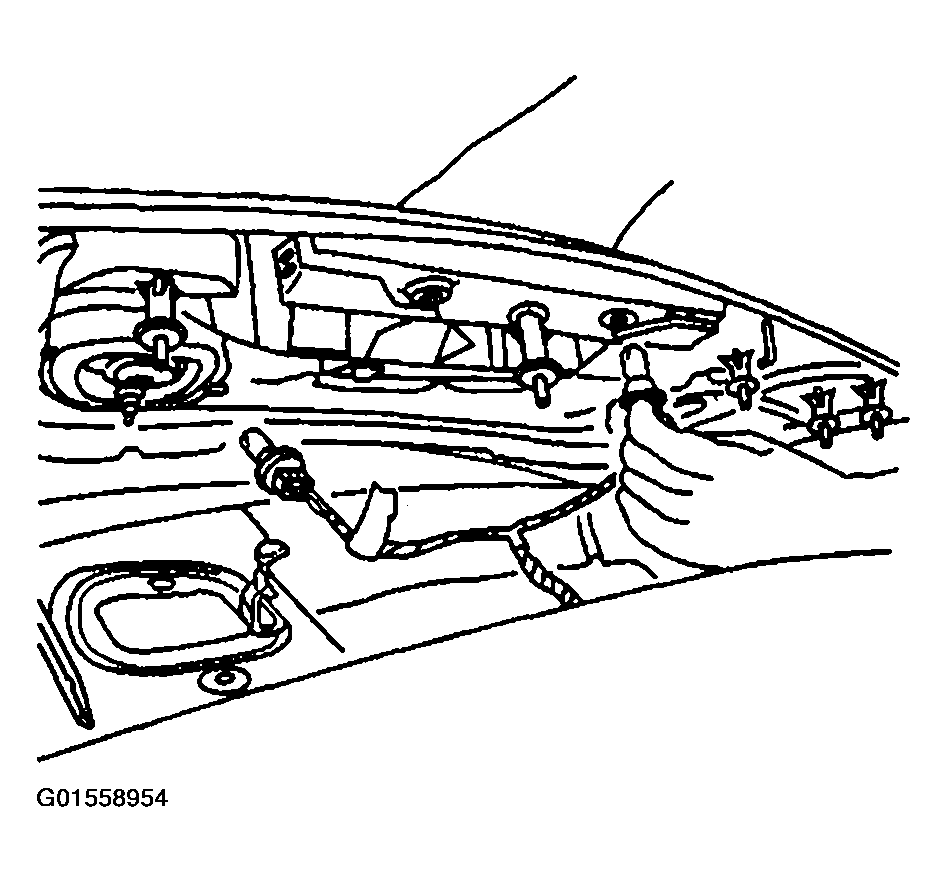

    Fig 1: Installing Bulbs/Sockets To Rear Compartment Lid Applique (Sunfire GT)
    G01558954Courtesy of GENERAL MOTORS CORP.
