Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license plate from the rear bumper fascia.
  2. Remove the screws from the license plate lamp.
  3. Remove the license plate lamp (1) from the rear bumper fascia.
  4. Remove the bulb/socket from the license plate lamp (1) by turning counterclockwise.
  5. Remove the bulb from the of socket.

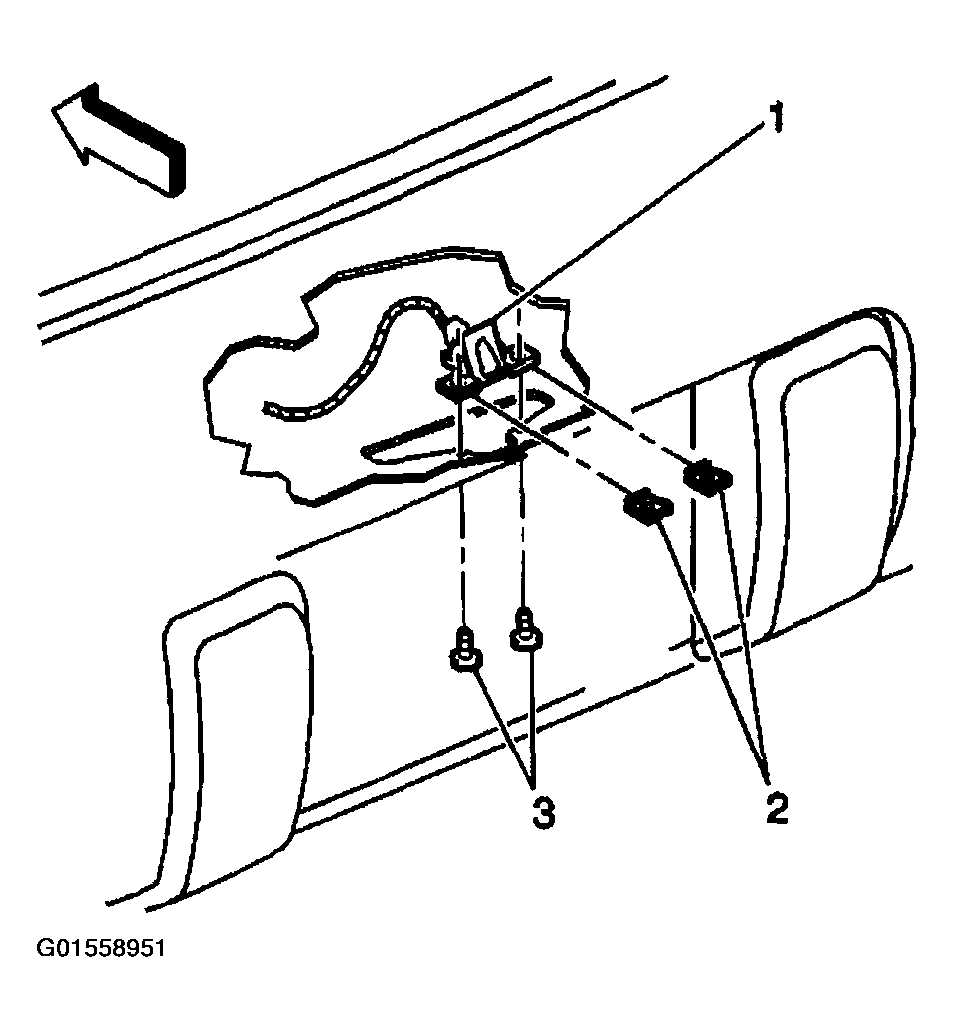

    Fig 1: Removing License Plate Lamp From Rear Bumper Fascia (Sedan And Coupe)
    G01558951Courtesy of GENERAL MOTORS CORP.
