Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.
  2. Install the socket to the license plate lamp by turning the socket clockwise.
  3. Install the license plate lamp (1) to the rear bumper fascia.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
    1. Install the screws (3) to the license plate lamp.

      Tighten

      Tighten the license plate lamp screws to 2 N.m (18 lb.in).

    2. Install the license plate to the rear bumper fascia.

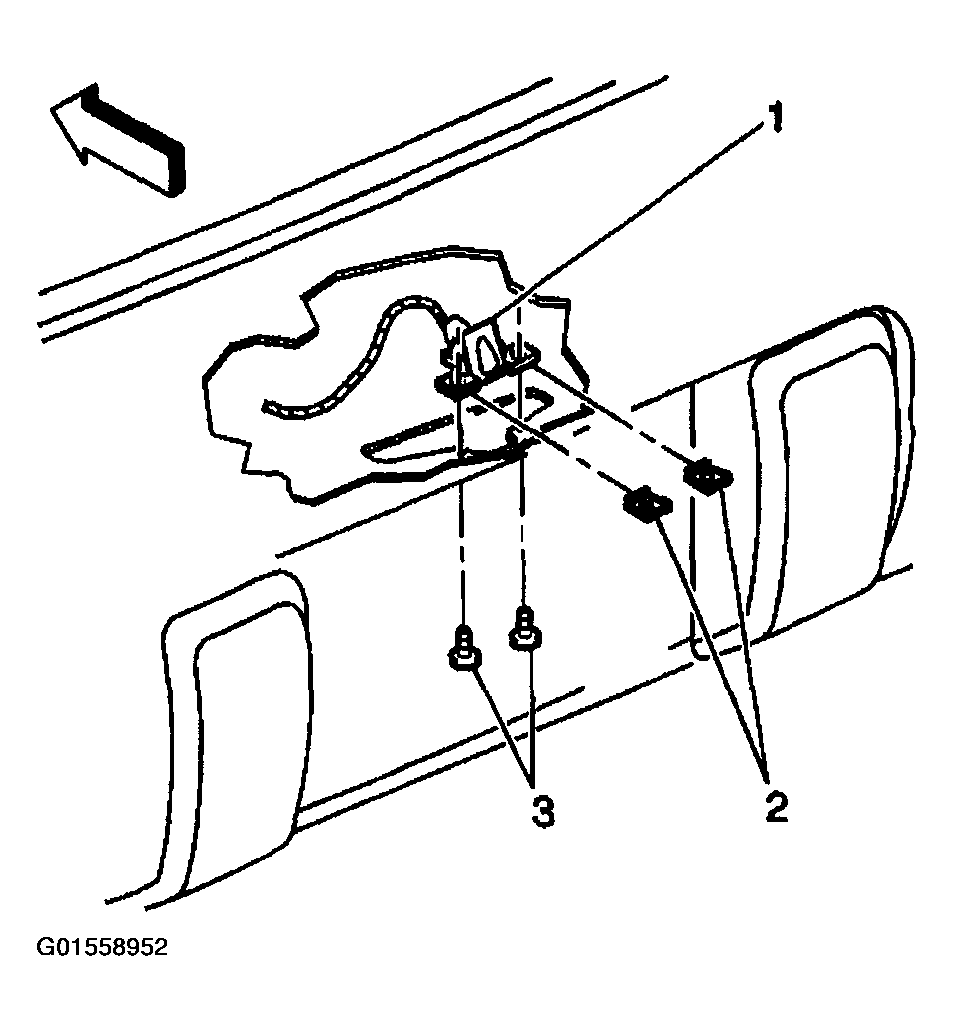

      Fig 1: Installing License Plate To Rear Bumper Fascia (Sedan And Coupe)
      G01558952Courtesy of GENERAL MOTORS CORP.
