Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel accessory trim plate to access the fog lamp switch. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET) or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (PONTIAC) in Instrument Panel, Gages, and Console.
  2. Release the retainers on the fog lamp/dimmer switch housing using a small flat-bladed tool.
  3. Remove the fog lamp/dimmer switch (3) housing from the instrument panel accessory trim plate.
  4. Release the retainers on the dimmer lamp switch using a small flat-bladed tool.
  5. Remove the dimmer lamp switch from the fog lamp/dimmer switch (3) housing.

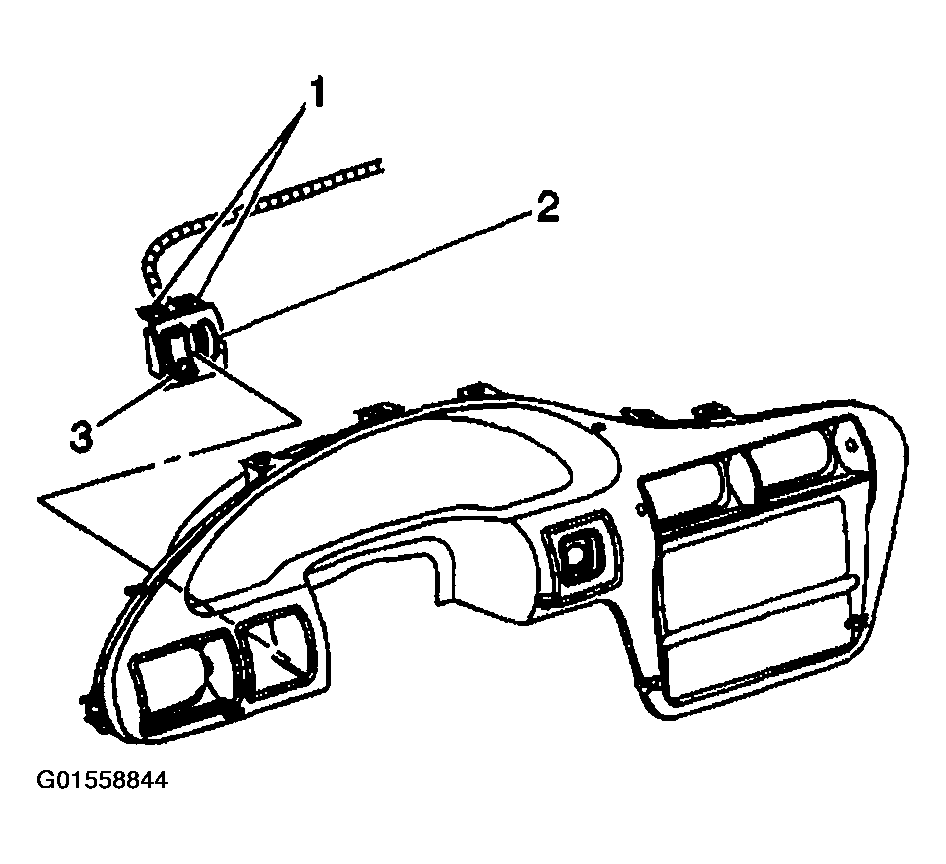

    Fig 1: Removing Fog Lamp/Dimmer Switch Housing From Instrument Panel Accessory Trim Plate (Chevrolet)
    G01558844Courtesy of GENERAL MOTORS CORP.
