Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Disconnect the electrical connector from the high mounted stop lamp.
  3. Remove the bulbs/sockets (1) from the high mounted stop lamp.
  4. Remove the bulbs from the sockets.
  5. Remove the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  6. Pull the high mounted lamp (2) forward to disengage it from the retaining slots (3).
  7. Remove the high mounted stop lamp from the rear shelf lifting up and out.

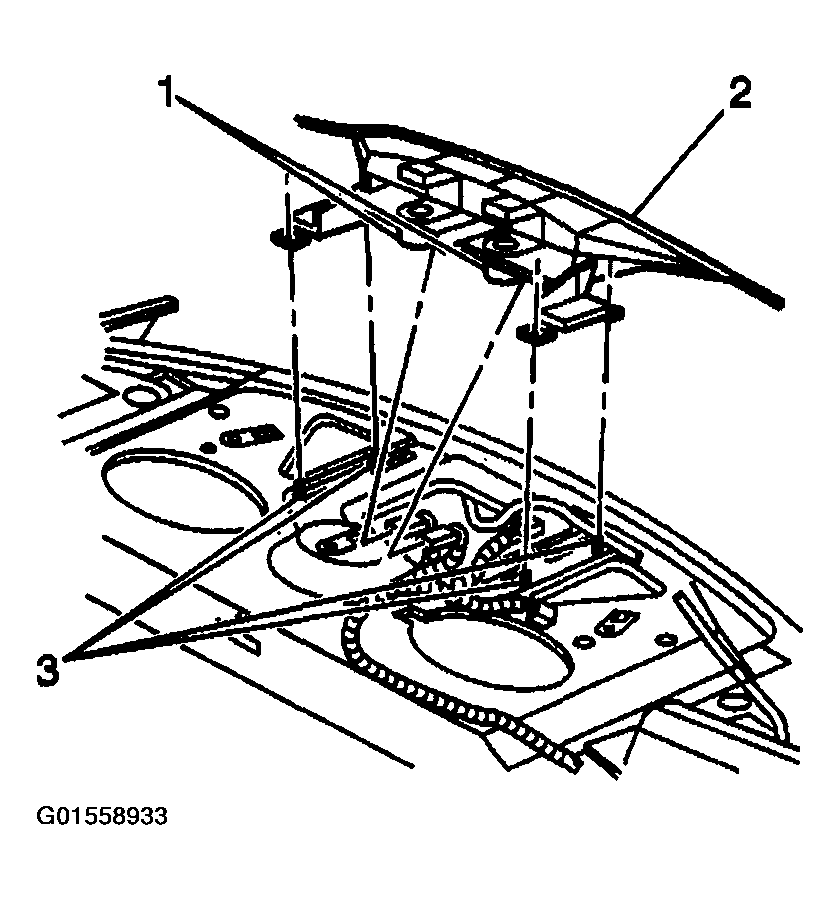

    Fig 1: Removing High Mounted Stop Lamp From Rear Shelf (Rear Window Panel Mounted)
    G01558933Courtesy of GENERAL MOTORS CORP.
