Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The high mounted stop lamp bulbs are not serviceable. The high mounted stop lamp must be replaced as a unit.
  1. Open the rear compartment.
  2. Disconnect the electrical connector from the high mounted stop lamp.
  3. Remove the screws (1) from the high mounted stop lamp.
  4. Remove the high mounted stop lamp from the rear spoiler, pulling the wiring harness from the rear compartment lid.

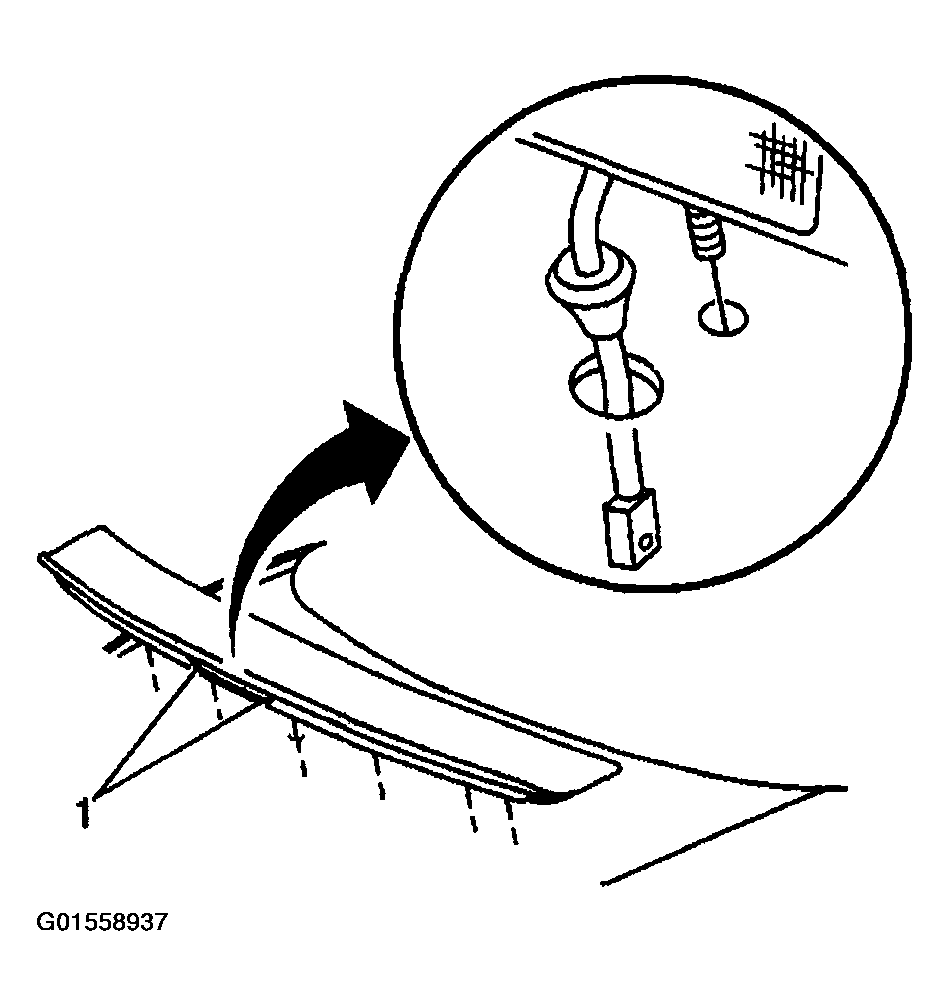

    Fig 1: Removing High Mounted Stop Lamp From Rear Spoiler
    G01558937Courtesy of GENERAL MOTORS CORP.
