Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiring harness to the rear compartment lid.
  2. Install the high mounted stop lamp to the rear spoiler.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws (1) to the high mounted stop lamp.

    Tighten

    Tighten the high mounted stop lamp screws to 2 N.m (18 lb.in).

  4. Connect the electrical connector to the high mounted stop lamp.
  5. Close the rear compartment.

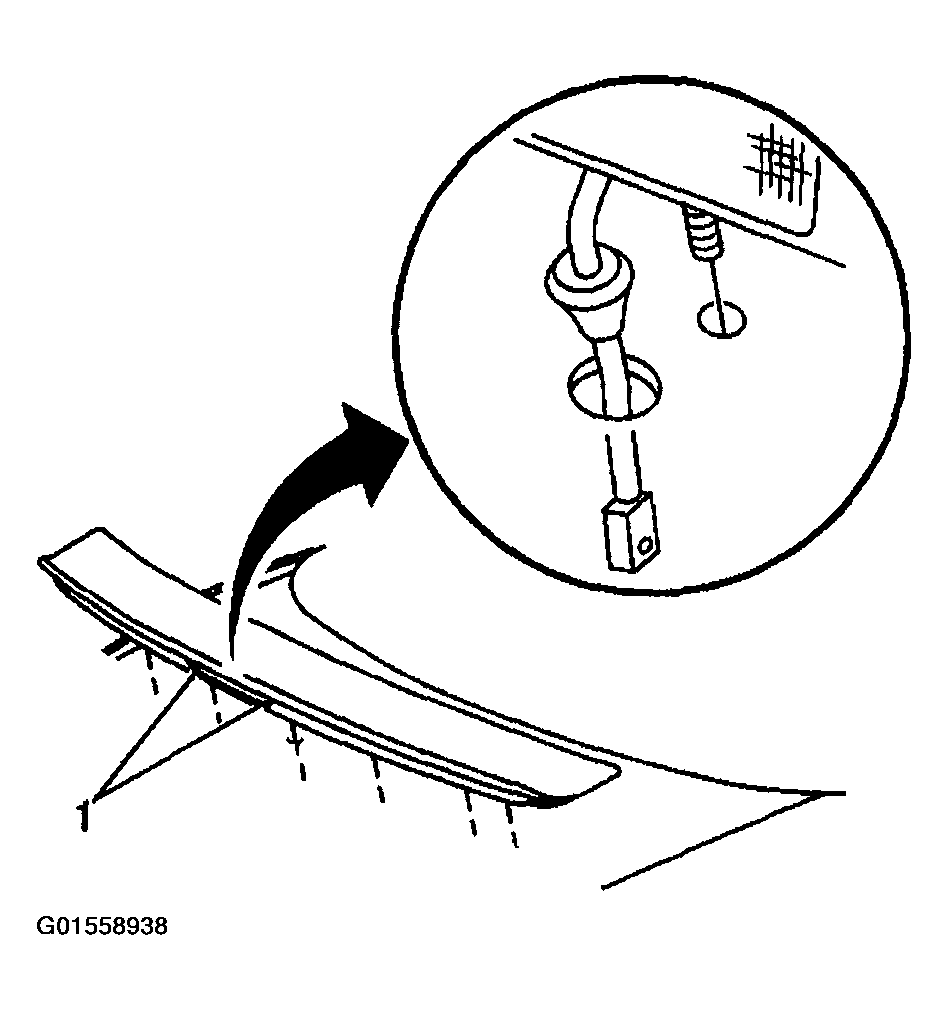

    Fig 1: Installing High Mounted Stop Lamp To Rear Spoiler
    G01558938Courtesy of GENERAL MOTORS CORP.
