Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the bulb/socket clockwise to install the bulb to the headlamp assembly.

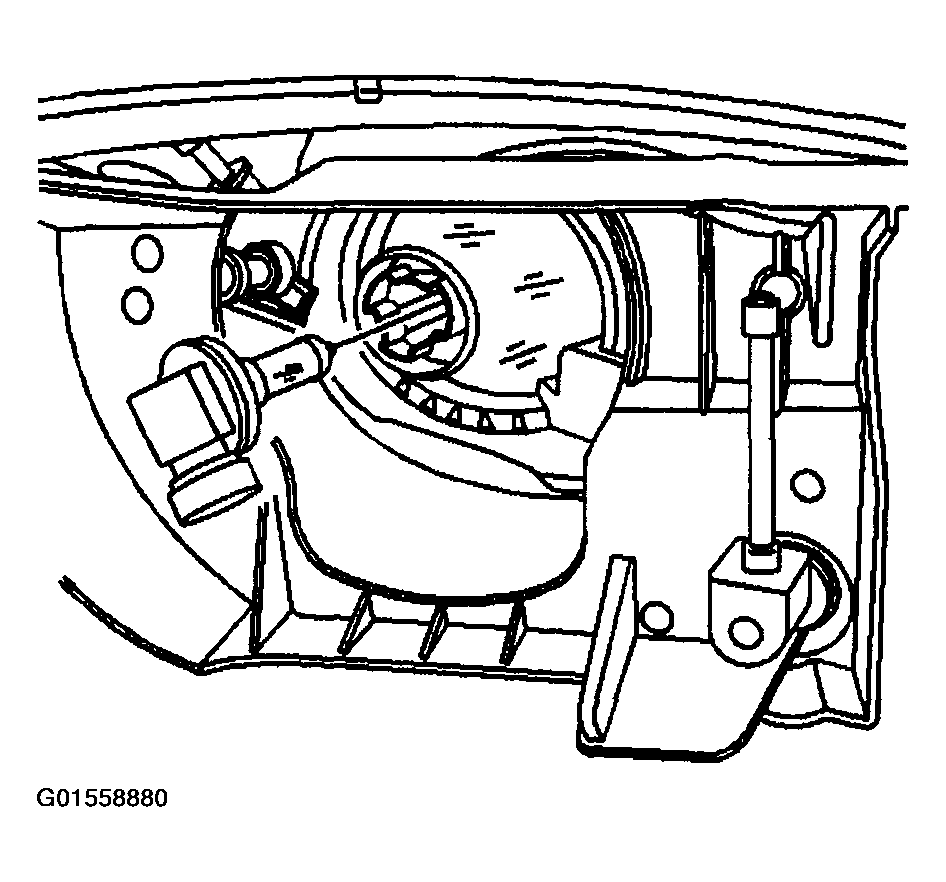

    Fig 1: Installing Bulb To Headlamp Assembly (Pontiac)
    G01558880Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the bulb/socket.

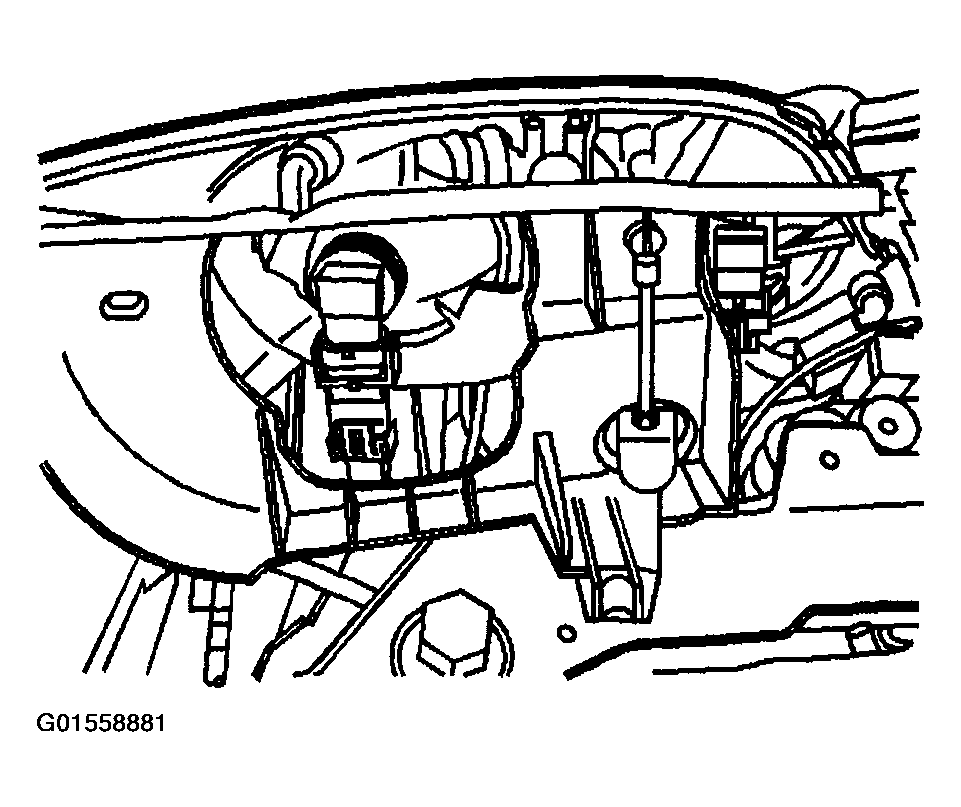

    Fig 2: Connecting Electrical Connectors To Bulb/Socket (Pontiac)
    G01558881Courtesy of GENERAL MOTORS CORP.
  3. Position the headlamp assembly to the body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts to the headlamps.

    Tighten

    Tighten the bolts to 4.5 N.m (40 lb.in).

  5. Install the hood close out filler panel. Refer to HOOD CLOSE OUT FILLER REPLACEMENT in Body Front End.
  6. Close the hood.

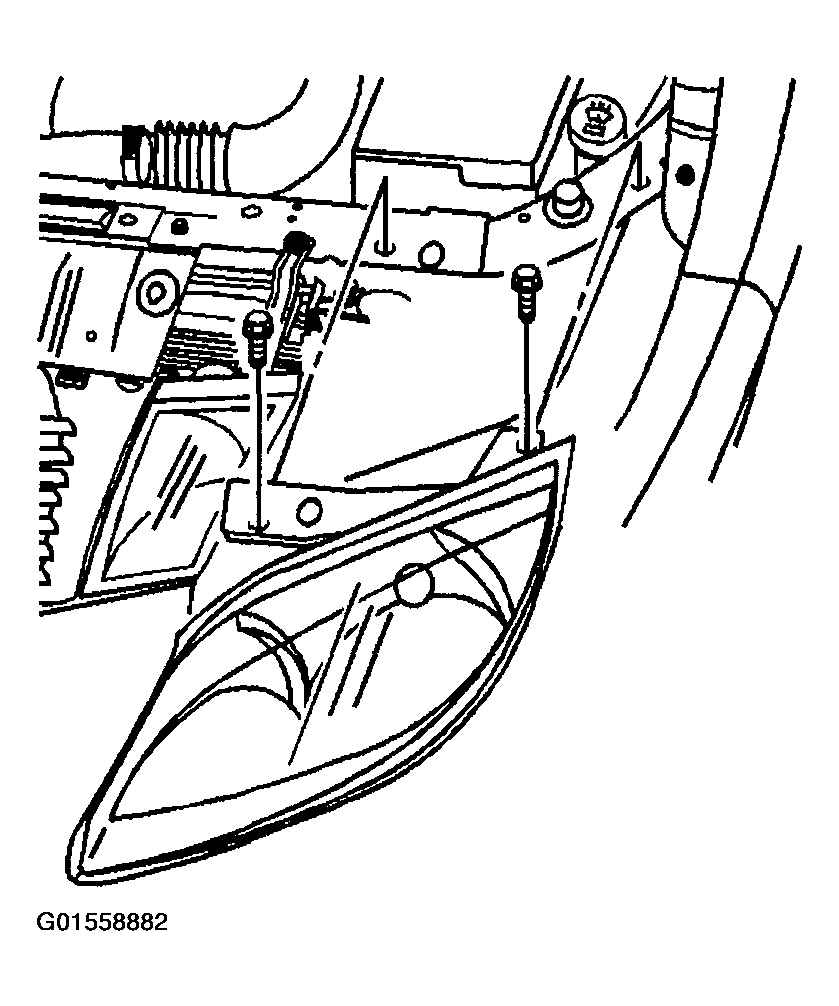

    Fig 3: Installing Bolts To Headlamp (Pontiac)
    G01558882Courtesy of GENERAL MOTORS CORP.
