Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET) or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (PONTIAC) in Instrument Panel, Gages and Console.
  2. Remove the screws from the HVAC control.
  3. Pull the HVAC control away from the instrument panel.
  4. Remove the bulbs/sockets (1) from the HVAC control.
  5. Remove the bulbs from the sockets.

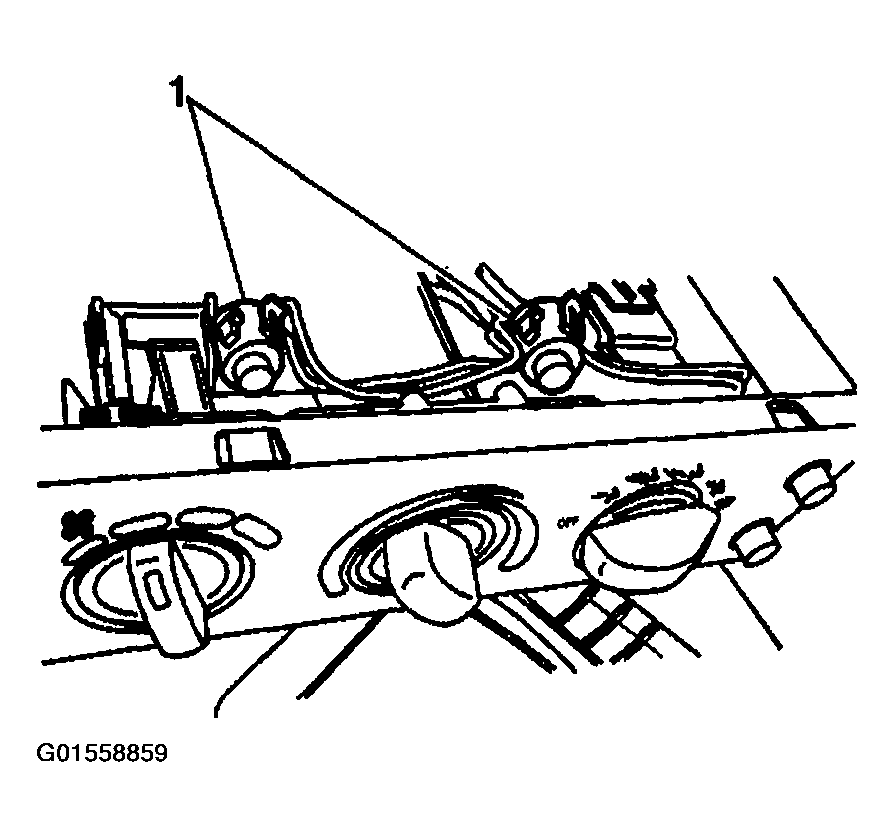

    Fig 1: Locating Bulbs/Sockets On HVAC Control
    G01558859Courtesy of GENERAL MOTORS CORP.
