Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fog lamp/dimmer switch trim plate from the instrument panel using a small flat-bladed tool.

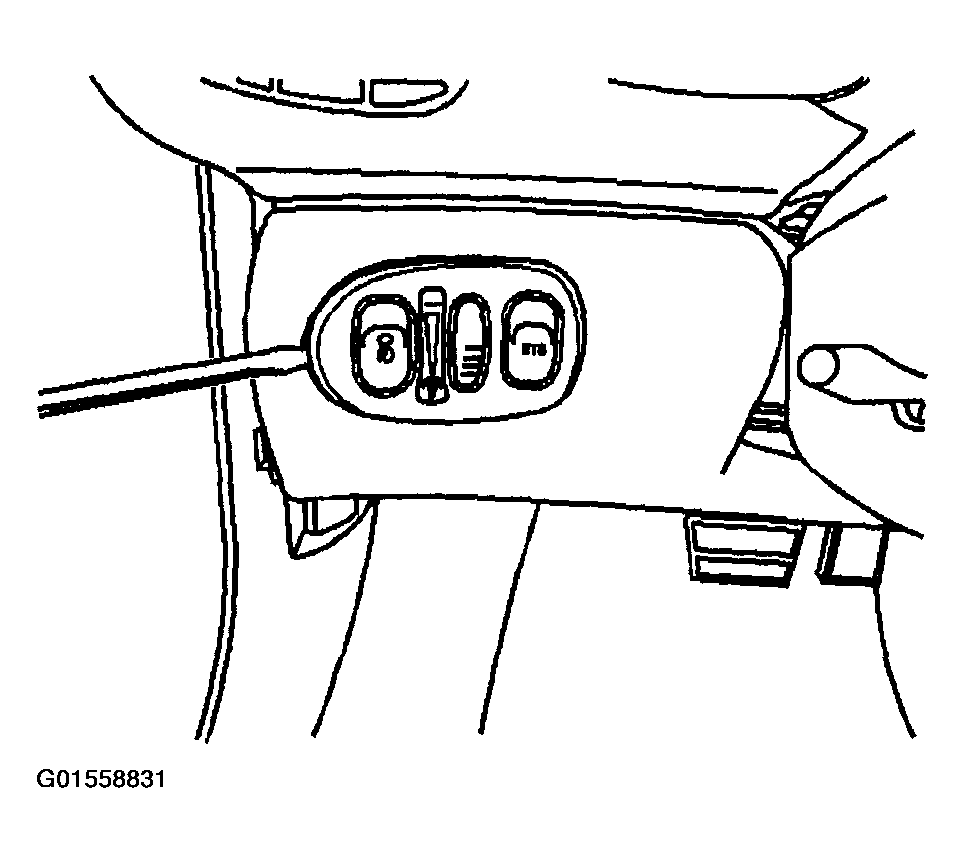

Fig 1: Removing Fog Lamp/Dimmer Switch Trim Plate From Instrument Panel - Front (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors from the fog lamp/dimmer switches.

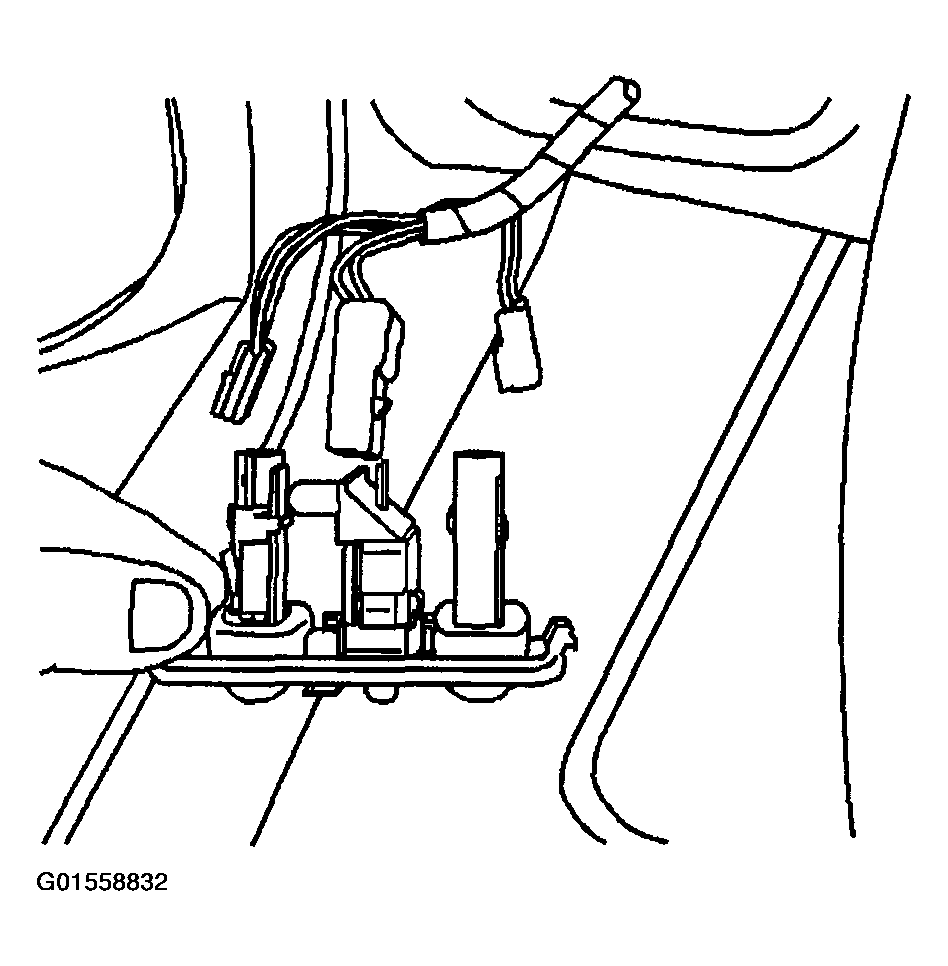

Fig 2: Disconnecting Electrical Connectors From Fog Lamp/Dimmer Switches - Front (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp/dimmer switch bulb using a small flat-bladed tool turning counterclockwise, if required.

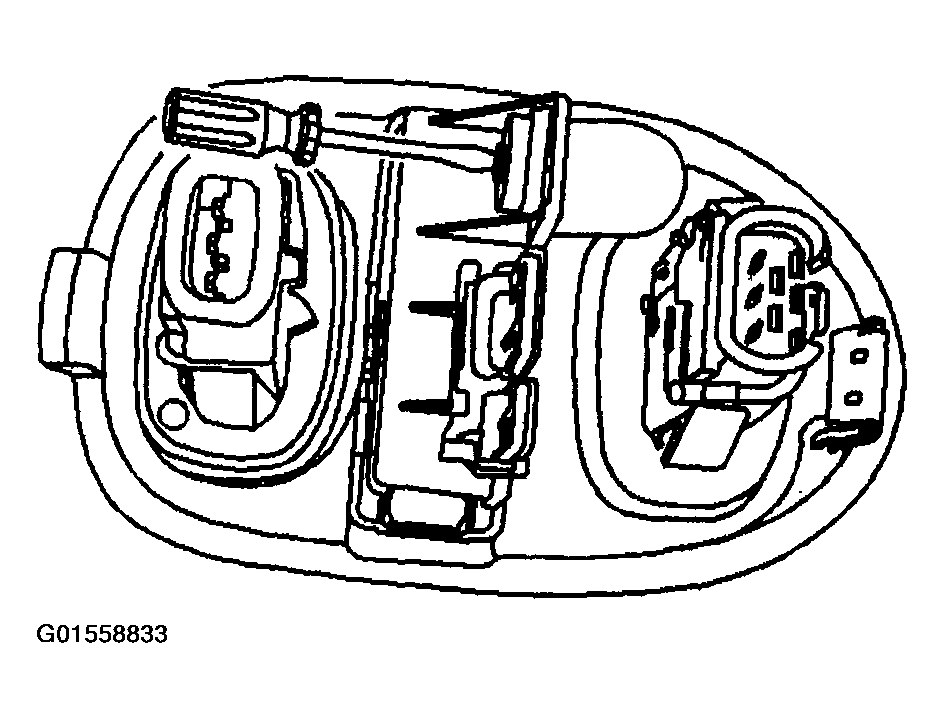

Fig 3: Removing Fog Lamp/Dimmer Switch Bulb - Front (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Release the retainer tabs on the fog lamp switch using a small flat-bladed tool on the back side.

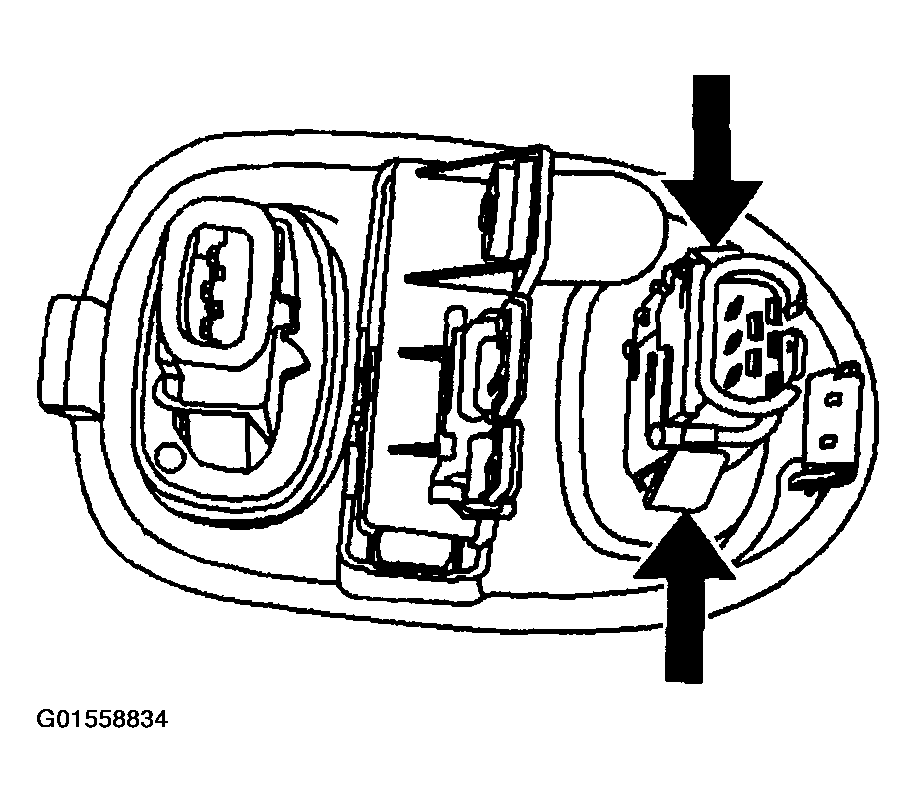

Fig 4: Locating Retainer Tabs On Fog Lamp Switch - Front (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp switch from the trim plate.

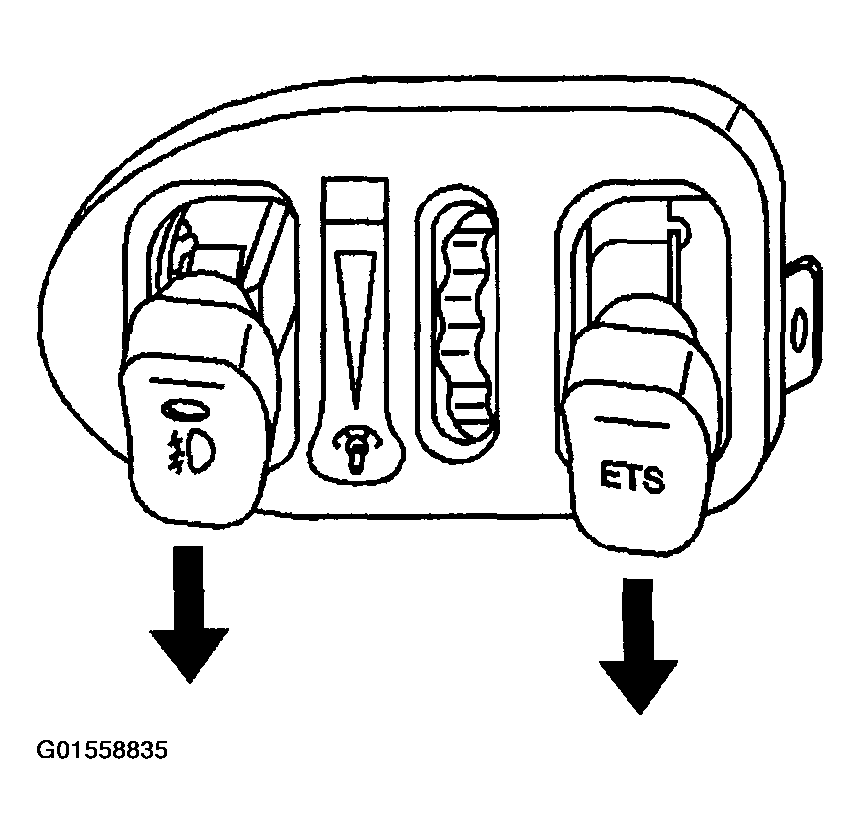

Fig 5: Removing Fog Lamp Switch From Trim Plate - Front (Pontiac)
Courtesy of GENERAL MOTORS CORP.
