Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

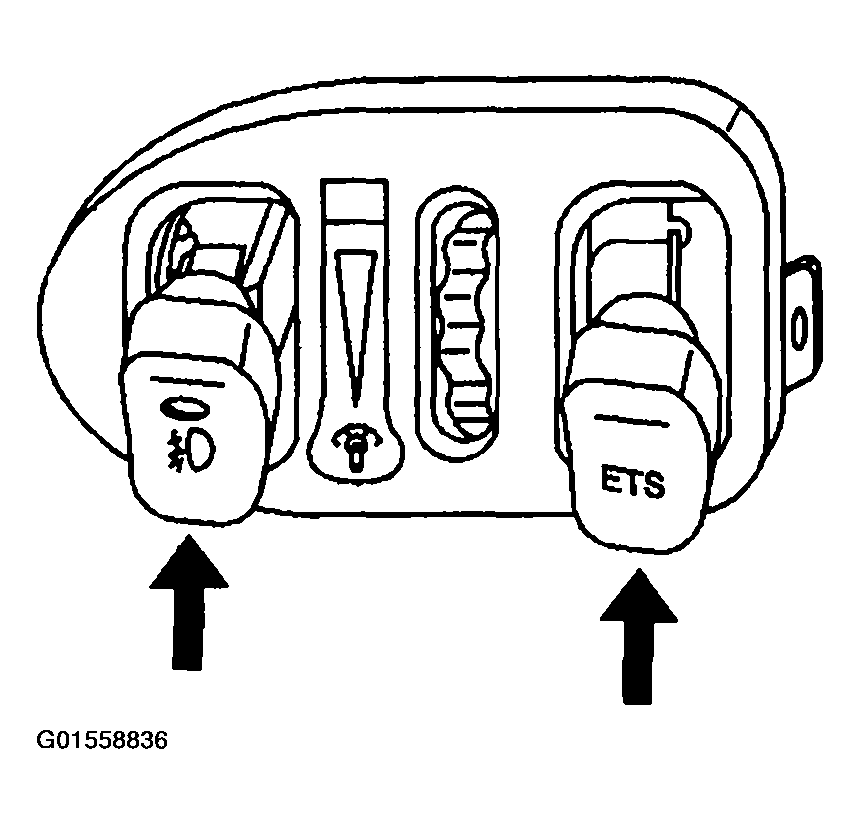

  1. Install the fog lamp switch to the trim plate pressing into place until fully seated.
    Fig 1: Installing Fog Lamp Switch To Trim Plate - Front (Pontiac)
    G01558836Courtesy of GENERAL MOTORS CORP.

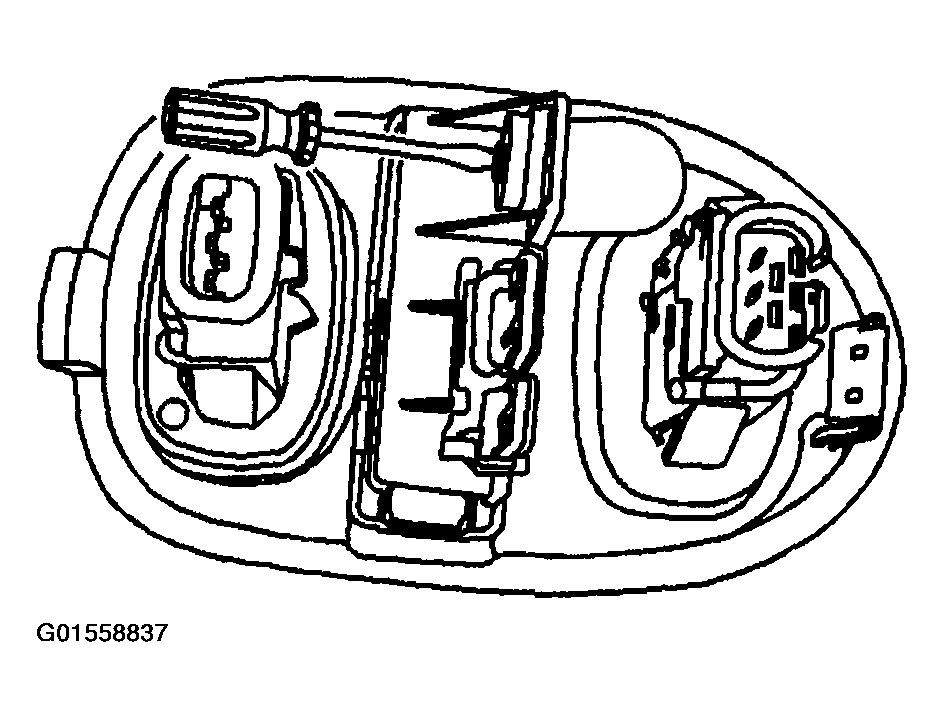

  2. Install the fog lamp/dimmer switch bulb using a small flat-bladed tool turning clockwise, if required.
    Fig 2: Installing Fog Lamp/Dimmer Switch Bulb - Front (Pontiac)
    G01558837Courtesy of GENERAL MOTORS CORP.

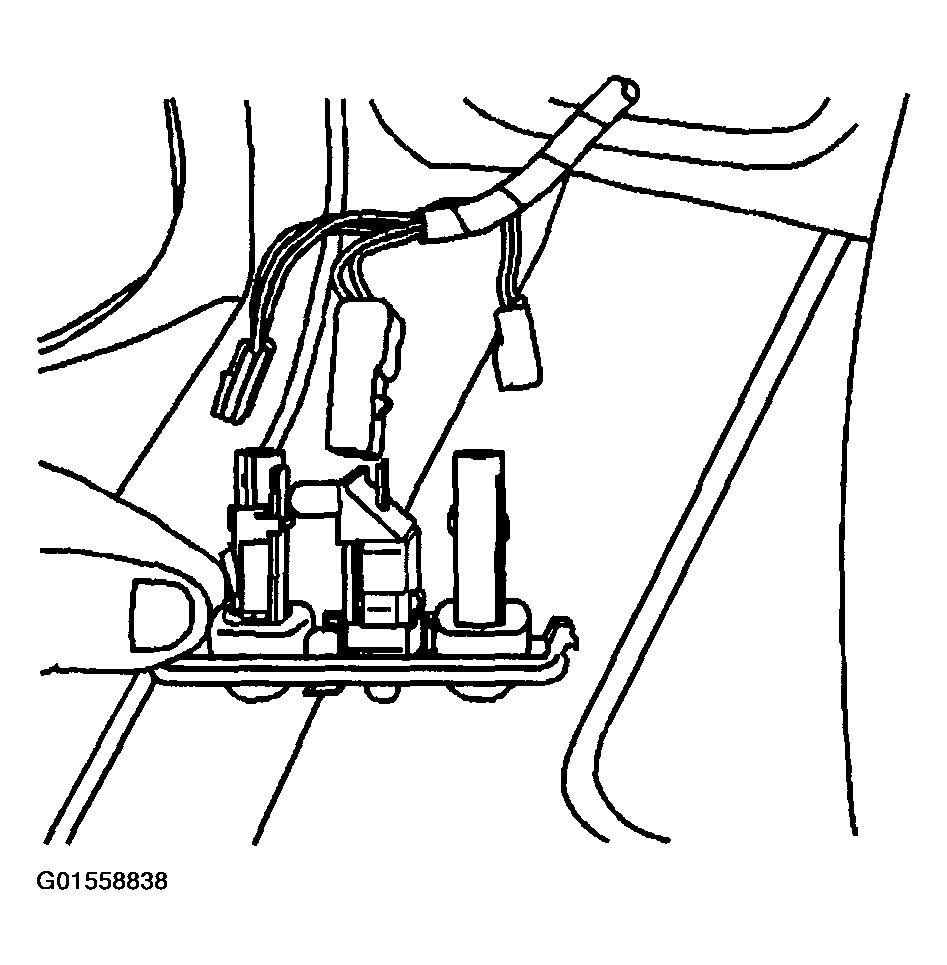

  3. Connect the electrical connectors to the fog lamp/dimmer switches.
    Fig 3: Connecting Electrical Connectors To Fog Lamp/Dimmer Switches - Front (Pontiac)
    G01558838Courtesy of GENERAL MOTORS CORP.

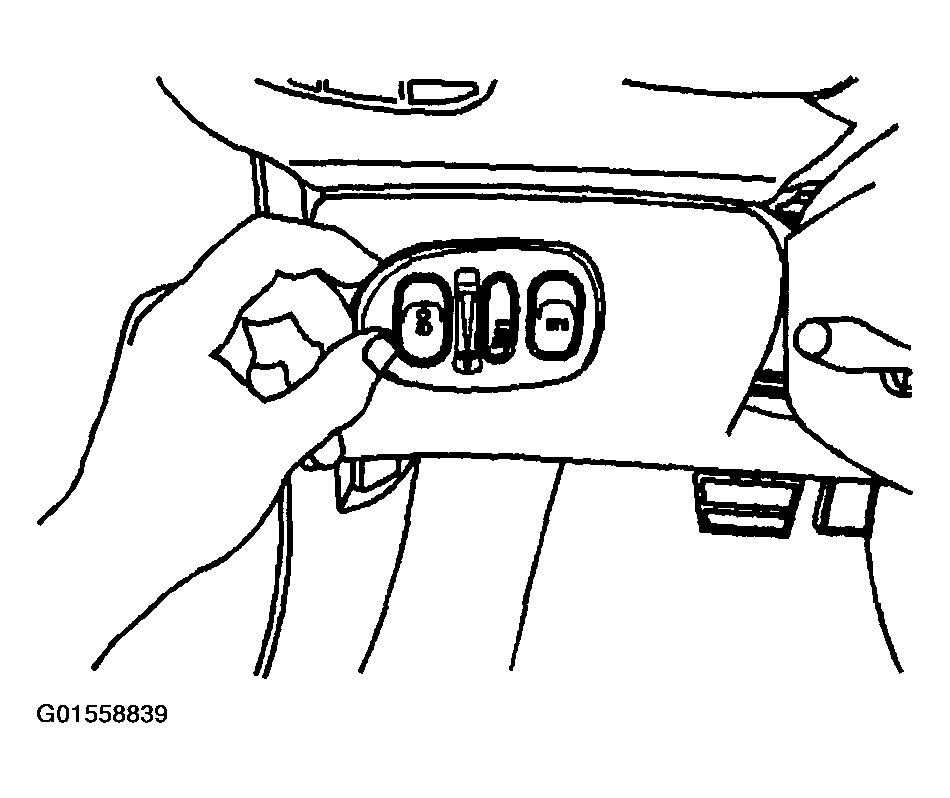

  4. Install the fog lamp/dimmer switch trim plate to the instrument panel pressing into place until fully seated.
    Fig 4: Installing Fog Lamp/Dimmer Switch Trim Plate To Instrument Panel - Front (Pontiac)
    G01558839Courtesy of GENERAL MOTORS CORP.
