Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp switch to the fog lamp/dimmer switch housing, pressing into place until fully seated.
  2. Install the fog lamp/dimmer switch (3) housing to the instrument panel accessory trim plate, pressing into place until fully seated.
  3. Install the to the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET) or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (PONTIAC) in Instrument Panel, Gages, and Console.

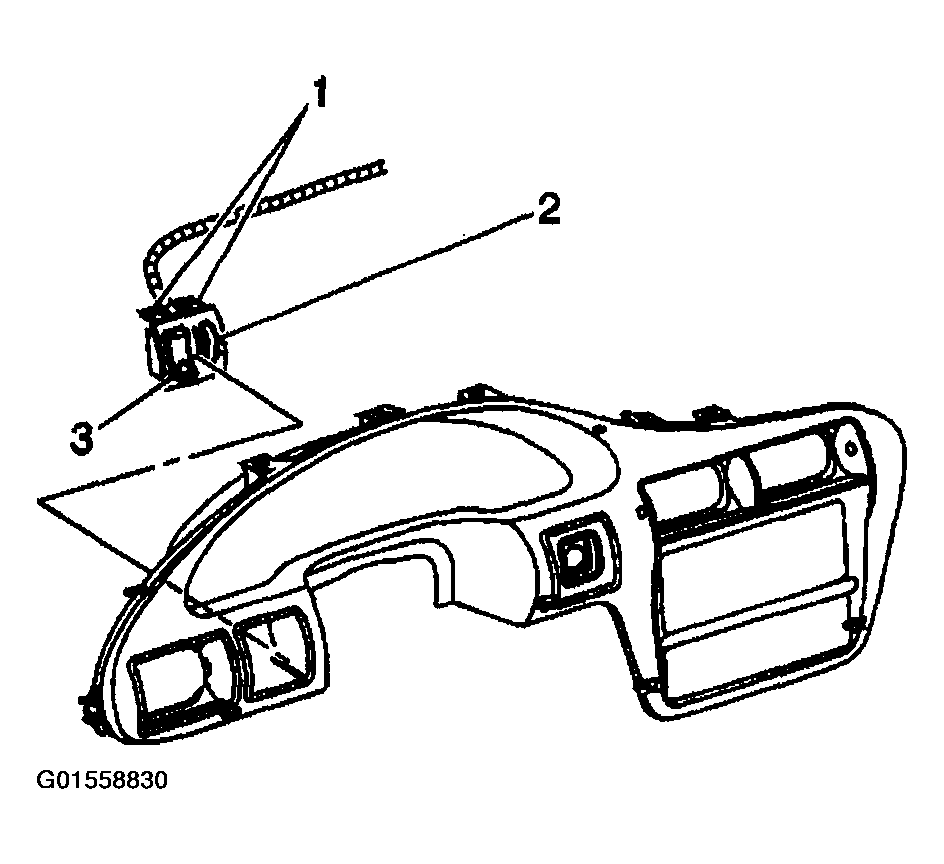

    Fig 1: Installing Fog Lamp/Dimmer Switch Housing To Instrument Panel Accessory Trim Plate - Front (Chevrolet)
    G01558830Courtesy of GENERAL MOTORS CORP.
