Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially remove the front edge of the front fender liner to gain access to the fog lamps. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.

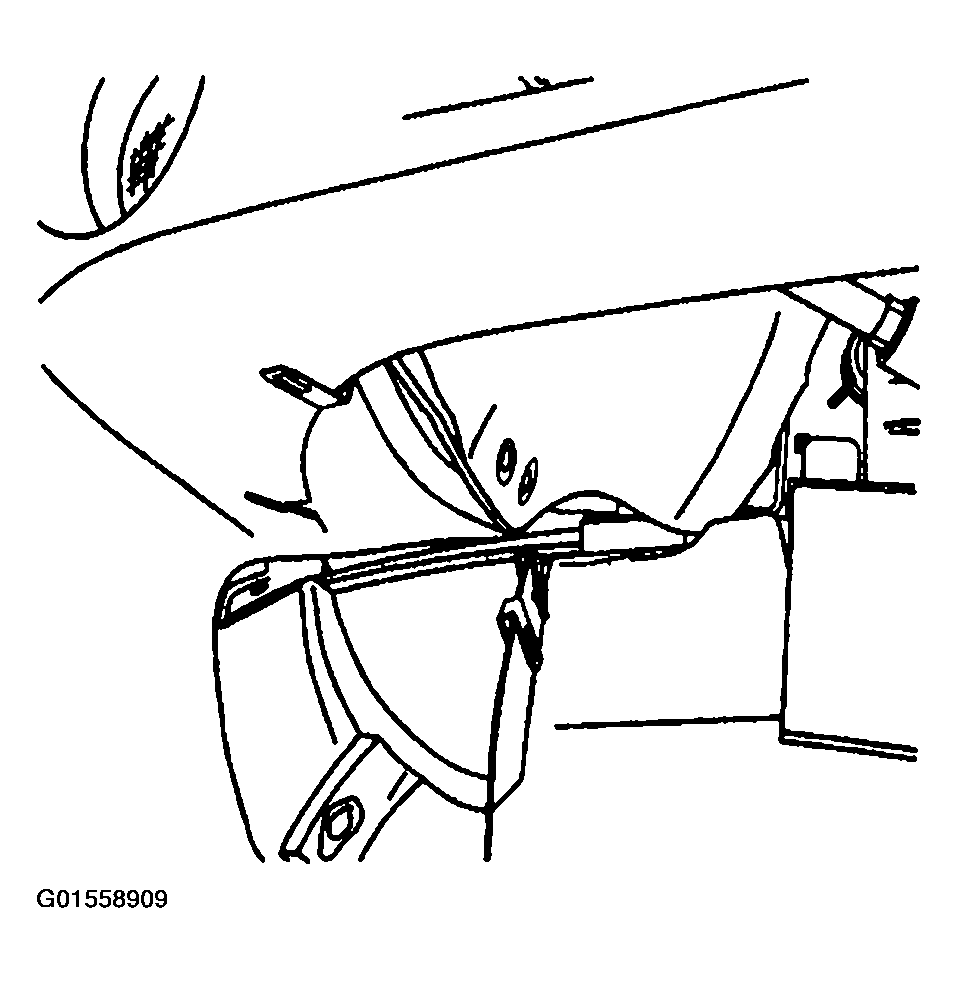

    Fig 1: Identifying Front Fender Liner - Front (Pontiac)
    G01558909Courtesy of GENERAL MOTORS CORP.
  2. Remove the fog lamp bulb/socket from the fog lamp.
  3. Remove the nuts (2) from the fog lamp.
  4. Remove the fog lamp (1) from the front bumper fascia.

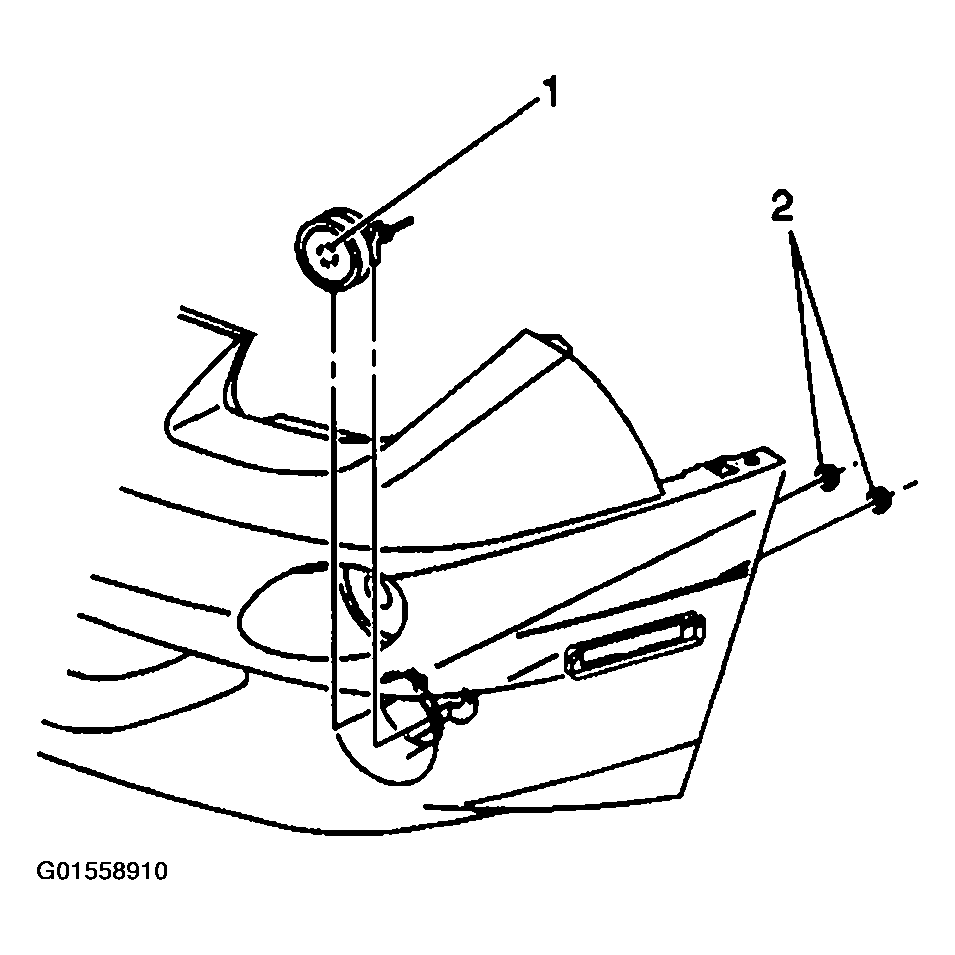

    Fig 2: Removing Fog Lamp From Front Bumper Fascia - Front (Pontiac)
    G01558910Courtesy of GENERAL MOTORS CORP.
