Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp (1) to the front bumper fascia.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts (2) to the fog lamp.

    Tighten

    Tighten the fog lamp nuts to 2 N.m (18 lb.in).

  3. Install the fog lamp bulb/socket to the fog lamp.

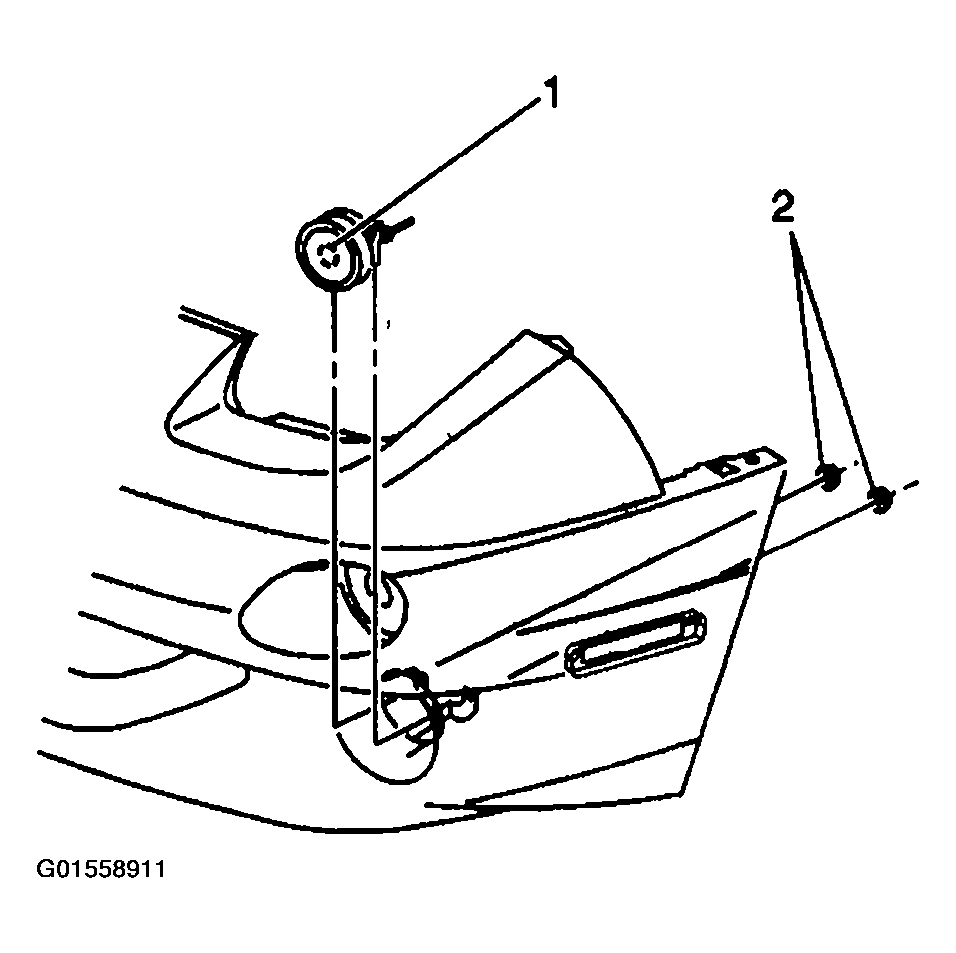

    Fig 1: Installing Fog Lamp To Front Bumper Fascia - Front (Pontiac)
    G01558911Courtesy of GENERAL MOTORS CORP.
  4. Install the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.

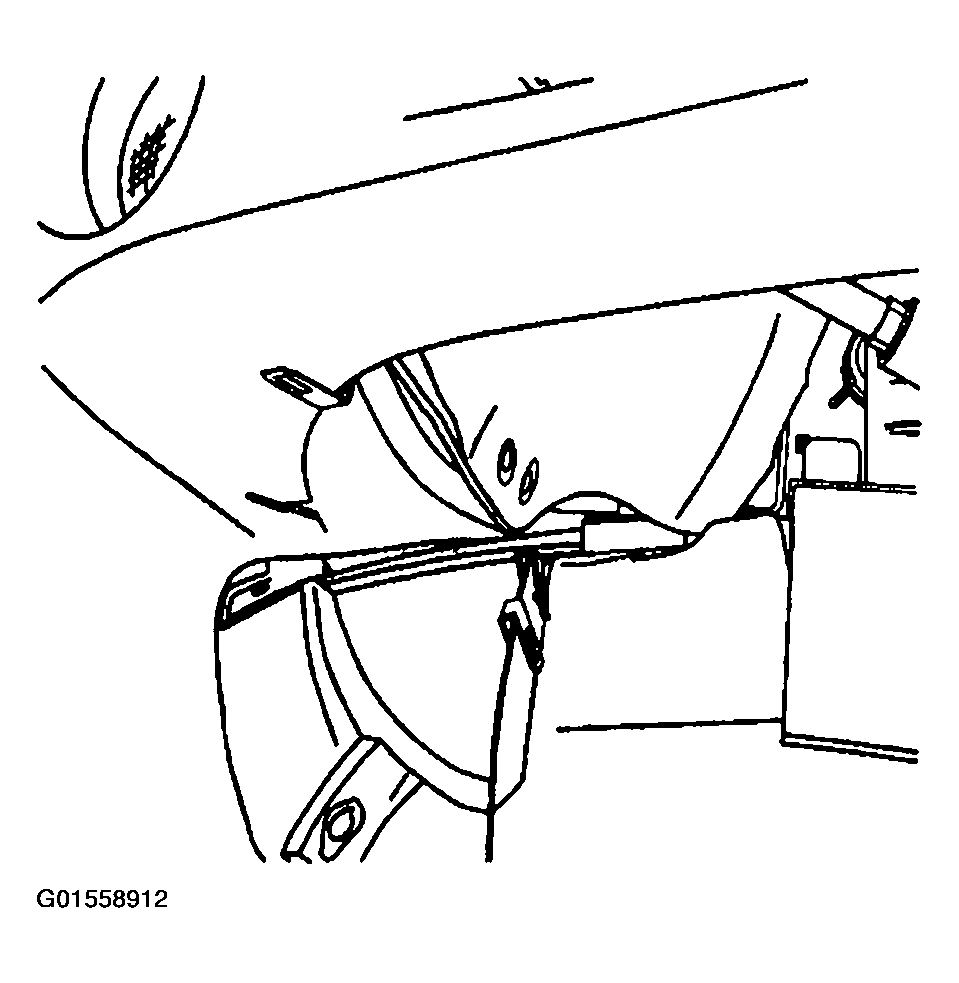

    Fig 2: Identifying Front Fender Liner - Front (Pontiac)
    G01558912Courtesy of GENERAL MOTORS CORP.
