Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Position the fog lamp to the front bumper fascia.

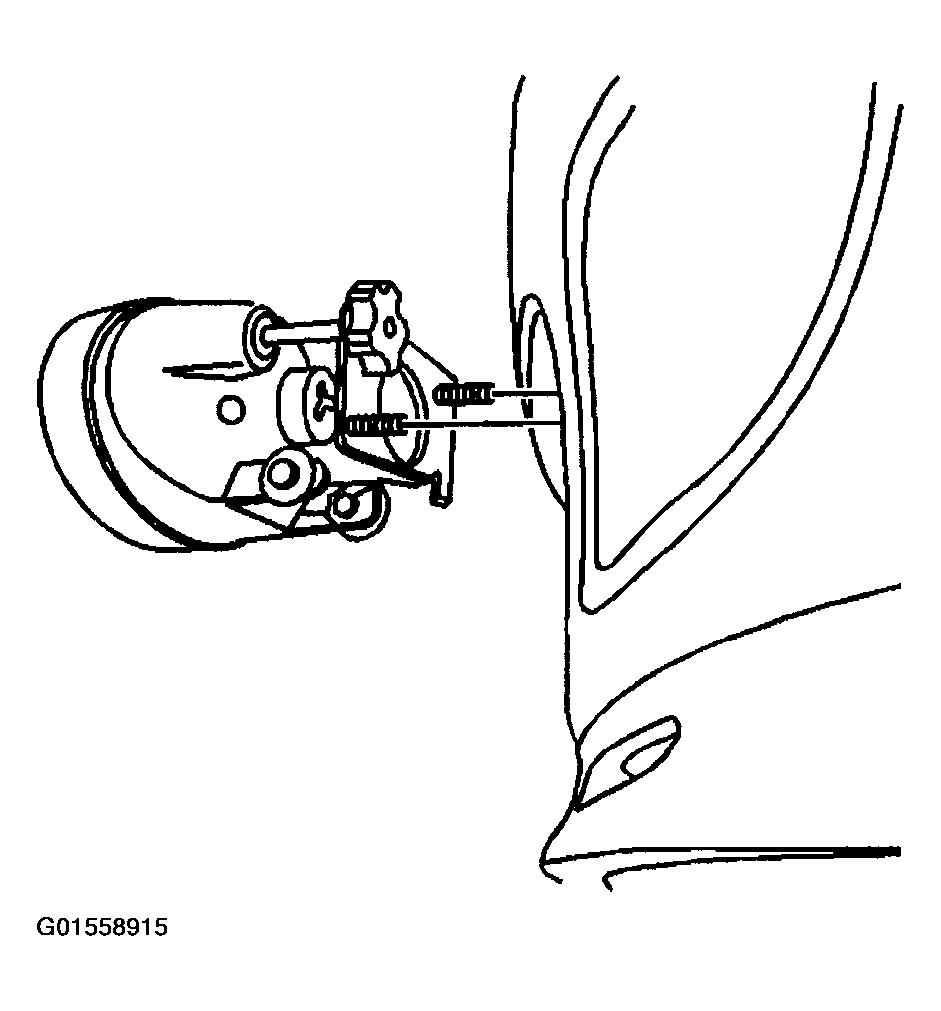

Fig 1: Installing Fog Lamp To Front Bumper Fascia - Front (Chevrolet)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the fog lamp nuts (2) to the fog lamp.
Tighten

Tighten the nuts to 6 N.m (53 lb.in).
Install the fog lamp bulb/socket to the fog lamp.
Install the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.

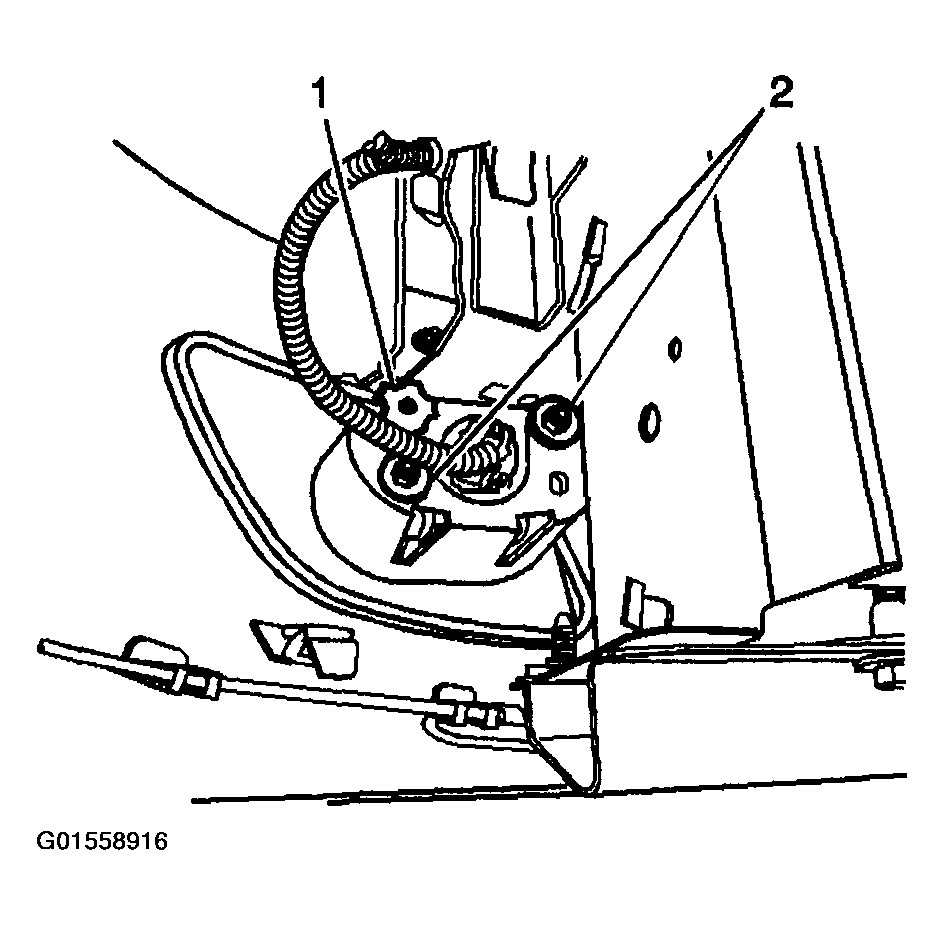

Fig 2: Locating Fog Lamp Nuts - Front (Chevrolet)
Courtesy of GENERAL MOTORS CORP.
