Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Use a small flat-bladed tool remove the door jamb switch (2) from the hinge pillar.
  3. Disconnect the electrical connector from the door jamb switch.

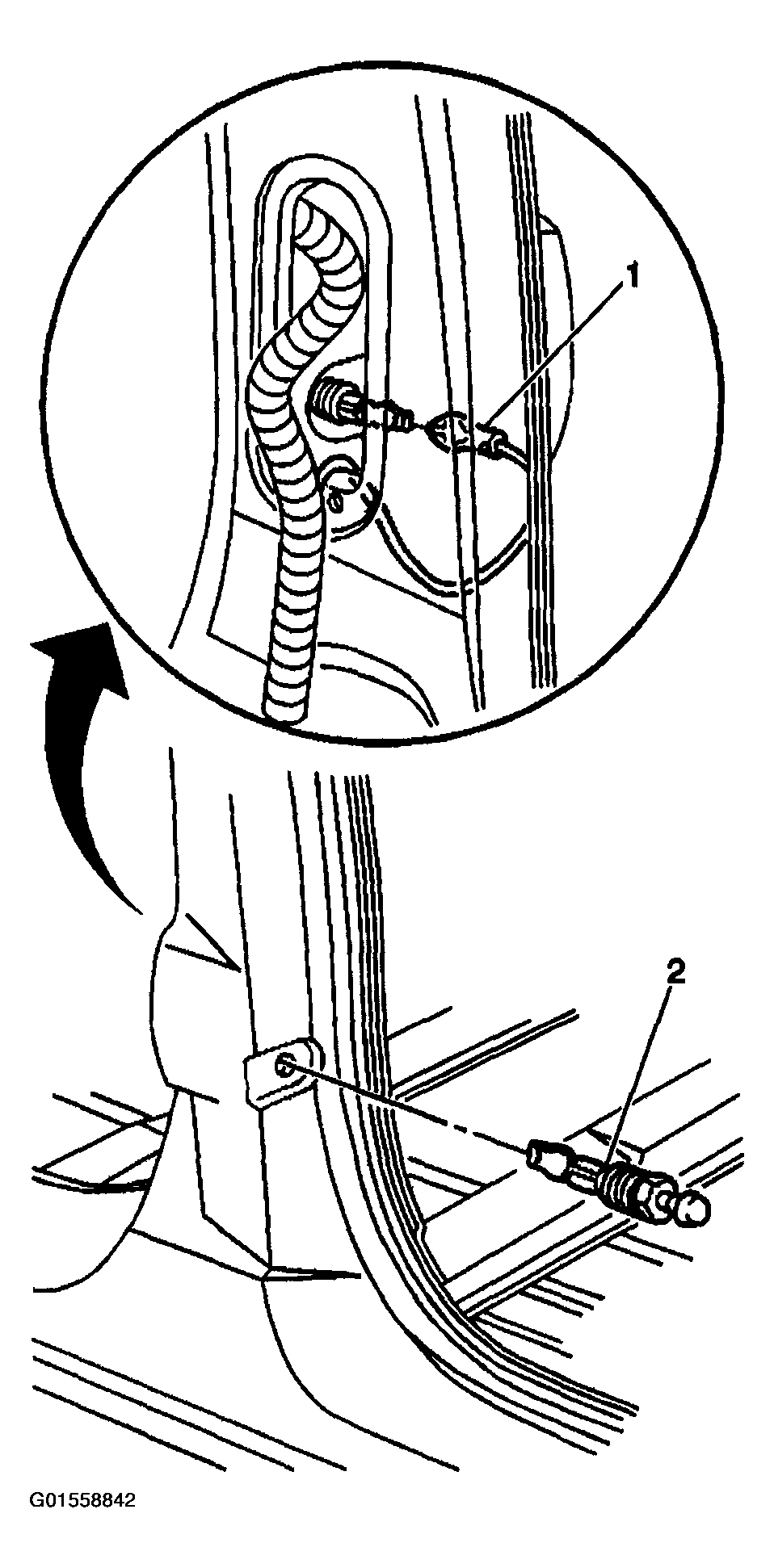

    Fig 1: Disconnecting Electrical Connector From Door Jamb Switch - Rear
    G01558842Courtesy of GENERAL MOTORS CORP.
