Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: When a new jamb switch is installed and the door is closed the first time, the plunger is forced into the sleeve and automatically adjusts the jamb switch for that particular door. If a jamb switch fails, do not readjust the switch. Install a new jamb switch.
  1. Position the door jamb switch by the pillar.
  2. Connect the door jamb switch electrical connector.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the door jamb switch (2).

    Tighten

    Tighten the door jamb switch to 10 N.m (89 lb.in).

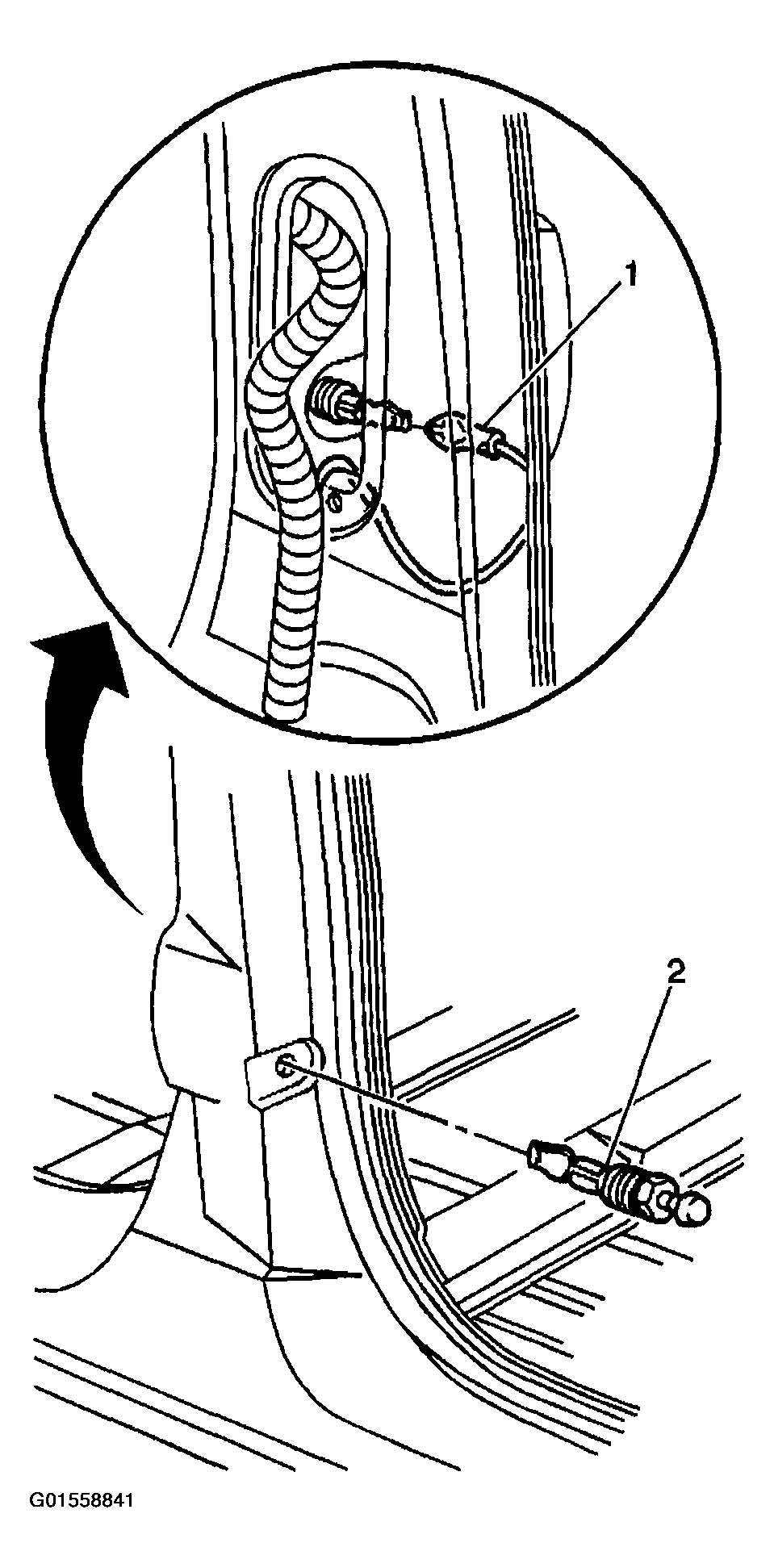

    Fig 1: Connecting Door Jamb Switch Electrical Connector - Front
    G01558841Courtesy of GENERAL MOTORS CORP.
