Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. From the rear of the dome lamp lens, insert a flat-bladed tool (1) between the dome lamp lens and the headliner (2).
  2. Use the flat bladed tool in order to push the tab at the rear of the dome lamp lens forward. Disengage the tab from the headliner.
  3. Pull the dome lamp lens (1) rearward in order to disengage the 2 tabs at the front of the headliner.

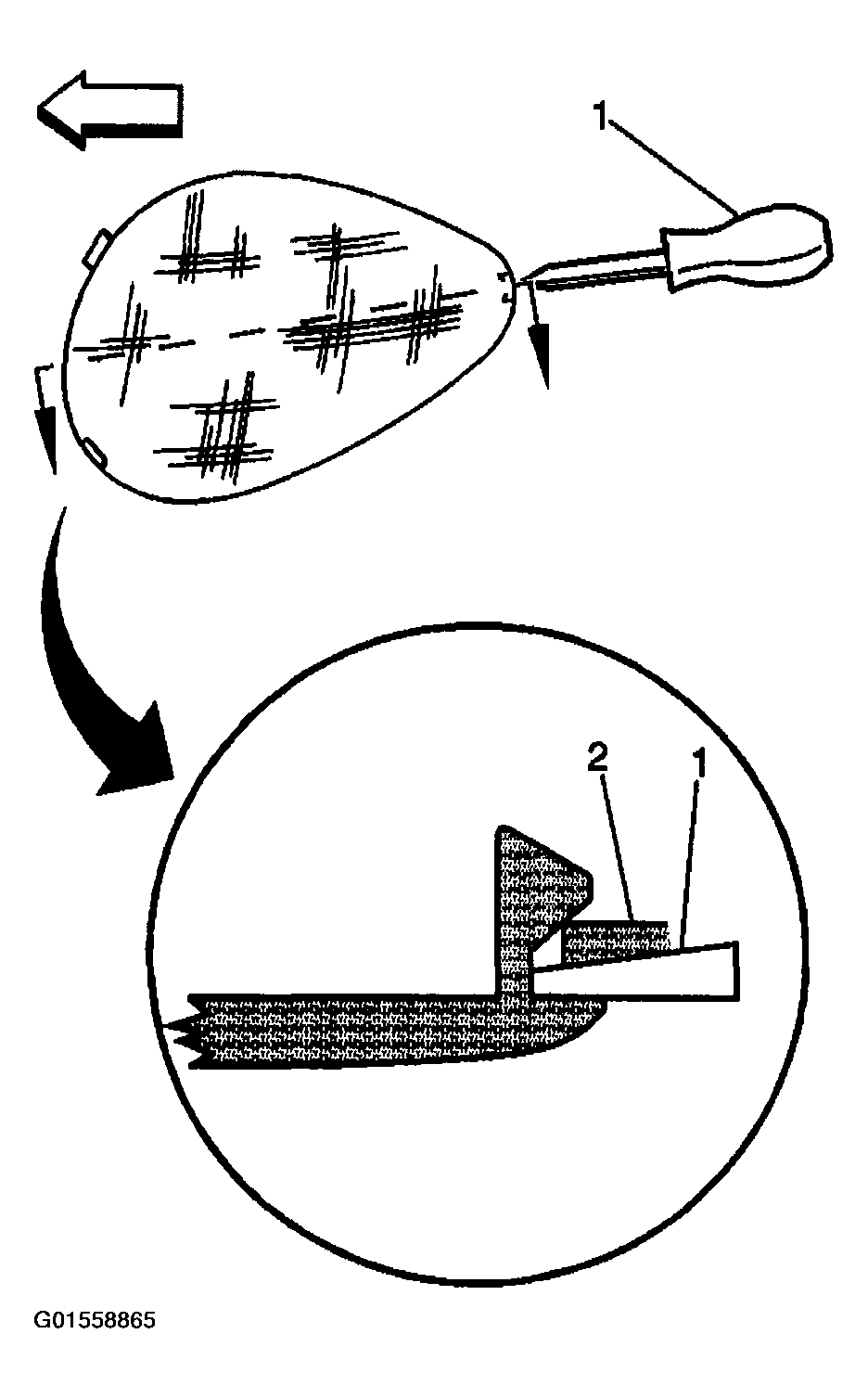

    Fig 1: Disengaging Tab From Headliner (Without C95)
    G01558865Courtesy of GENERAL MOTORS CORP.
